Mediacam Pro User Manual

CENTAUR

Suite 502, 410 Elizabeth St, Surry Hills, NSW Australia 2010

Tel: +61-2-9213-5000

Fax: +61-2-9213-5020

Table of Contents

Need help?

Do you have a question about the Mediacam Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Centaur Mediacam Pro

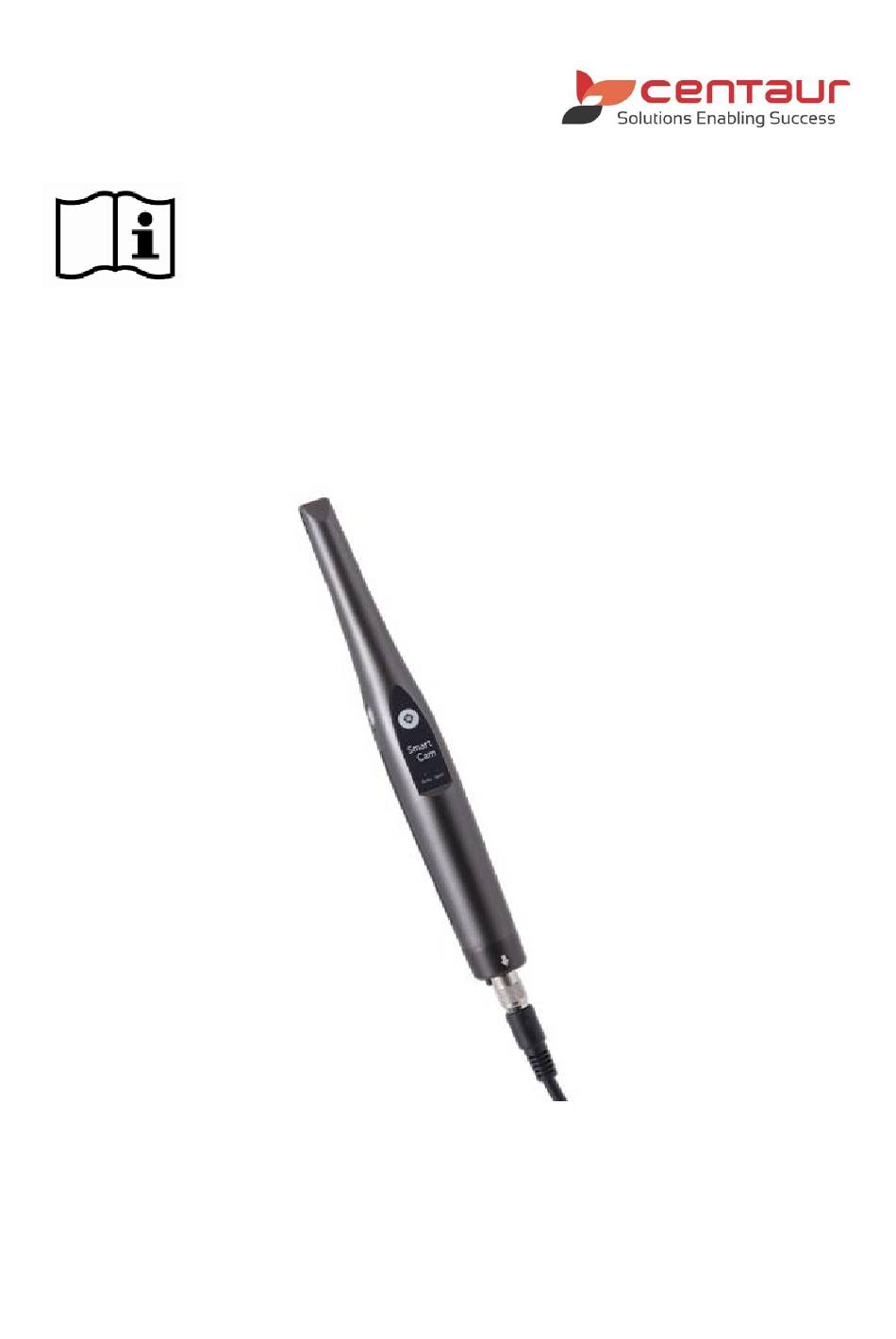

Page 1 Mediacam Pro-01 (May, 2018) Mediacam Pro User Manual CENTAUR Suite 502, 410 Elizabeth St, Surry Hills, NSW Australia 2010 Tel: +61-2-9213-5000 Fax: +61-2-9213-5020...
Page 2: Table Of Contents
www.centaursoftware.com CONTENTS 1. GENERAL NOTICE ..................................2 2. SAFETY NOTICE ................................... 3 3. OVERVIEW ....................................9 4. INSTALLATION ..................................14 5. Hygienic cover ..................................16 6. OPERATION ....................................17 7. MAINTENANCE ..................................19 8. Label ......................................19 9. DECLARATION OF CONFORMITY ............................21 10.
Page 3: General Notice
The Mediacam Pro is classified as IPX0. ◆ Degree of protection against flammability The Mediacam Pro is classified as a device not suitable to be used in a potentially flammable environment. Never use near flammable materials. ◆ Mode of operation Mediacam Pro is continuously operated.
Page 4: Safety Notice
www.centaursoftware.com 2. SAFETY NOTICE Accessory equipment connected to the analog and digital interfaces must be certified according to the respective IEC/EN standards and IEC 60601-1:2005+A1:2012 for medical equipment. Furthermore all configurations shall comply with the system standard IEC 60601-1:2005+A1:2012. Everybody who connects additional equipment to the signal input part or signal output part configures a medical system, and is therefore responsible that the system complies with the requirements of the system standard IEC 60601-1:2005+A1:2012.
Page 5 www.centaursoftware.com 2.1 Symbols for Safety Symbol Description Reference Consult Instruction for use EN ISO 15223-1, 5.4.3 General warning sign ISO 7010-W001 General mandatory action sign ISO 7010-M001 General prohibition sign ISO 7010-P001 Manufacturer EN ISO 15223-1, 5.1.1 Authorized representative in the EC EN ISO 15223-1, 5.1.2 Serial number ISO 15223-1, 5.1.7...
Page 6 2.2 Safety precaution The Mediacam Pro as a medical instrument complies with the safety regulation IEC 60601-1. Safety is everyone’s obligation and responsibility. The safe use of this product is related to everyone such as installer, user, operator and equipment manager. Reading and learning this user manual is compulsory before installation, using, cleaning, fixing or operation of this product or its accessories.
Page 7 The user must ensure that that the instrument works properly and is in a satisfactory condition before each use. The Mediacam Pro is intended only for use in the dental office by dentists, dental hygienists and trained dental assistants. It is not permissible to use the product for a purpose for which it was not intended.
Page 8 Image sensor. The sensor produces digital image data which is transmitted to the PC via USB. 2.6 Indication for use Mediacam Pro is designed for use in dental office by dentists, dental hygienists and trained dental assistants to provide the dentist and the patient with a view of the mouth before and after the dental procedure, which assists the dentist in describing the dental procedure being performed as well as showing the results.
Page 9 If parts from other suppliers, not genuine manufacturer parts are used, it can influence quality of the product. Use only parts authorized by the supplier, CENTAUR We cannot guarantee that parts not delivered by the supplier will correspond with EMC requirements of IEC 60601-1-2.
Page 10: Overview
USB2 port input to computer. Image capture and storage is accomplished with the image capture button on the camera handpiece. Mediacam Pro is a high resolution camera, with a full automatic/semi-automatic focus function for the dental industry.
Page 11 www.centaursoftware.com 3.2 Description 1) Camera 2) Interface cable (Detachable part) 3) Accessories USB Flash memory Holster (including User manual) WARNING No modification of this equipment is allowed. Page 10 / 27...
Page 12 www.centaursoftware.com 3.3 Function 1) Camera handpiece Name Function Viewing head 7 element glass optical lenses Capture button Freeze live images with a click of the Capture button Auto focus button Select the full automatic/semi-automatic focusing function Indication light Indicates the selected focus mode Holster Turns the camera on/off Cable connection part...
Page 13 www.centaursoftware.com USB connector Connect the USB port of PC 3) Indication light Name Function Press the button for 4 seconds to change mode Focus button Press button to focus the image when mode is semi-auto Full automatic indicator Light on when full auto mode is activated Semi-automatic indicator Light on when semi-auto is activated Page 12 / 27...
Page 14 www.centaursoftware.com 3.4 Technical Specifications DC 5 V, 500 mA Power 1/2.8” 2M SONY Progressive scan CMOS Image Sensor 1945(H) x 1097(V) Effective Pixels 1920(H) x 1080(V) Resolution 4 High luminance white chip LEDs Illumination USB2.0 MJPEG Video Output BT1120, 16bit Digital Output Full automatic/ semi-automatic by stepping motor Focusing Type...
Page 15: Installation
◆ Using computer has to meet IEC60950-1 NOTE Mediacam Pro is designed to operate with the computer USB2.0 that meets IEC60950-1. Proper operation of the device is not guaranteed in the system that does not support USB 2.0. If your system does not meet our system requirements, we cannot guarantee the performance of the Mediacam Pro.
Page 16 NOTE In WINDOWS XP, Mediacam Pro may not be recognized. Install the holster in a place that is convenient and does not exceed the maximum length of the cable, which is 2.7 m. The holster should also be positioned so that the cable from the camera does not create a tripping hazard.
Page 17: Hygienic Cover
www.centaursoftware.com 5. Hygienic cover 1) Hold a hygienic cover and camera. 2) Gently slide the camera until the camera head reaches the tip of the cover. Do not force. PROHIBITION Do not use if the hygienic cover is torn. 3) Gently apply downward pressures to ensure that the sleeve is tight. The camera is now protective and ready for normal use.
Page 18: Operation
www.centaursoftware.com 6. OPERATION 1) To use the camera, remove it from the holster and it will automatically turn on. The camera begins to send video images. PROHIBITION Do not touch the camera and cable with wet hands. CAUTION Be careful not to drop the camera. The internal precision optics may be damaged. WARNING Before using the camera, cover the camera with hygienic cover.
Page 19 www.centaursoftware.com 4) If you want to detach the cable of the camera, hold the marked part with your thumb and index finger and pull it in the direction of the arrow on the camera. 5) If you want to attach the cable to the camera, connect the cable to the camera in a straight line with the arrow mark on each device.
Page 20: Maintenance
7.1 Intended user profile Mediacam Pro is intended only for use in the dental office by dentists, dental hygienists and trained dental assistants. It is not permissible to use the product for a purpose for which it was not intended.
Page 21: Label
www.centaursoftware.com 8. Label 8.1 Camera box 8.2 Camera handpiece Page 20 / 27...
Page 22: Declaration Of Conformity
The use of cable and accessories that are not sold from CENTAUR and specified as replacement parts for internal components may result in increased emissions or decreased immunity of this product. This product should not be used adjacent to or stacked with other equipment.
Page 23 www.centaursoftware.com Guidance and manufacturer’s declaration – Electromagnetic Immunity This device is intended for use in the electromagnetic environment specified below. The customer or the user of this device should assure that it is used in such an environment. IEC 60601-1-2 Electromagnetic environment - Immunity test Compliance level...
Page 24 www.centaursoftware.com Guidance and manufacturer’s declaration - Electromagnetic Immunity This device is intended for use in the electromagnetic environment specified below. The customer or the user of this device should assure that it is used in such an environment. Immunity IEC 60601-1-2 Compliance Electromagnetic environment-guidance test...
Page 25 www.centaursoftware.com a) Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
Page 26 Telephone: +49-6196-4021549 Product : Intraoral camera Model name: Mediacam Pro Classification : Class I by Rule 12 of Annex IX, MDD 93/42/EEC GMDN code: 17001, Camera, video The product identified above complies with the essential requirements of the above EC Directive by meeting...
Page 27: Warranty
This guarantee does not cover damage resulting from improper installation, misuse, alterations, or accidents. After eighteen (18) months, CENTAUR SOFTWARE reserves the right to collect a reasonable fee from the Customer for services mutually agreed upon.
