https://www.family-chair.co.jp

Head office: 4-2-10, miyahara, Yodogawa-ku, Osaka City, Osaka

Manufactured and Distributed by: FAMILY INADA CO., LTD. 1220, Takata, Daisen-cho, Saihaku-gun, Tottori

(Daisen Factory)

"Specifications are subject to change without notice due to product improvements

(including designs of the tablet screens)."

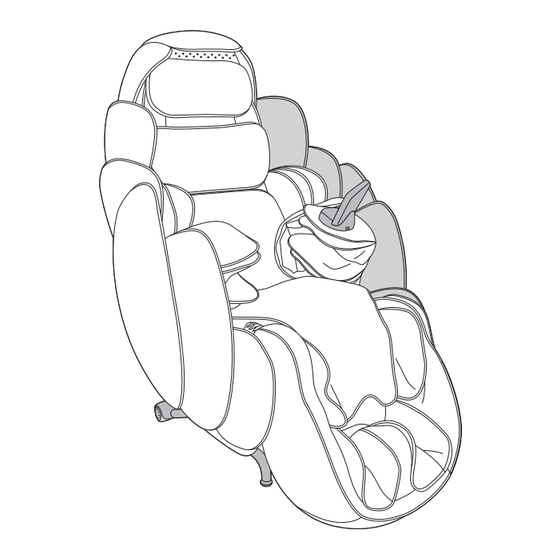

Relaxation Chair

HCP-ICO10000A

HCP-ICO10000D

HCP-ICO10000E

Safety precautions

Thank you for purchasing the iCOCOON.

This is a high-end, furniture-style relaxation chair

that combines design and medication with the

goal of promoting mind and body health.

Scan the QR code with your smart device to

download the operating manual and the installation

manuals.

Attached Document

Need help?

Do you have a question about the iCOCOON HCP-ICO10000A and is the answer not in the manual?

Questions and answers

Summary of Contents for inada iCOCOON HCP-ICO10000A

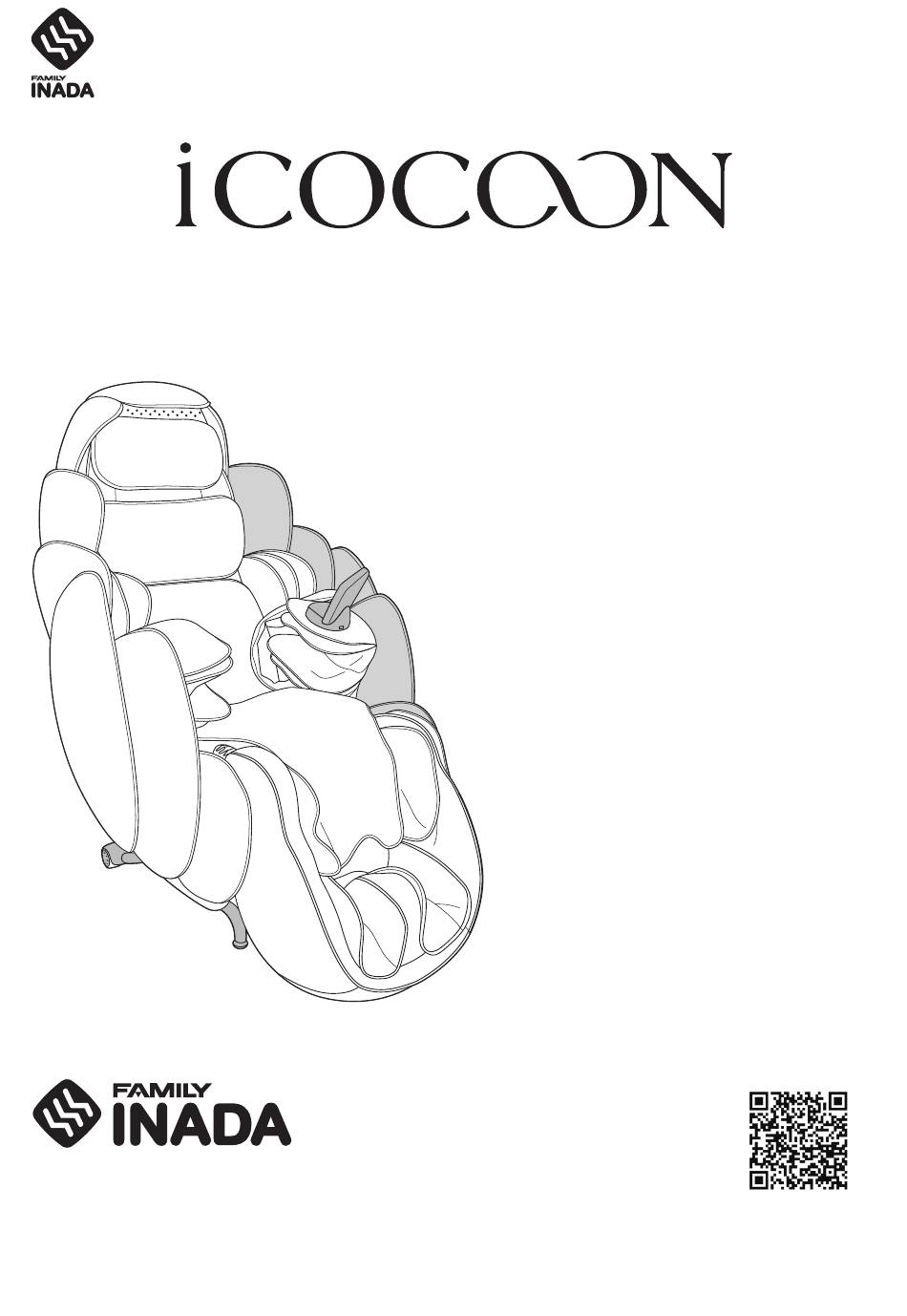

Page 1 Head office: 4-2-10, miyahara, Yodogawa-ku, Osaka City, Osaka Manufactured and Distributed by: FAMILY INADA CO., LTD. 1220, Takata, Daisen-cho, Saihaku-gun, Tottori (Daisen Factory) “Specifications are subject to change without notice due to product improvements (including designs of the tablet screens).”...
Page 2 Safety precautions Before using the product, read the following safety precautions so that you can use the product correctly. ⃝ This reminder provides important information for the prevention of danger to the user of this product and ⃝ surrounding people and property damage, as well as for the safe use of the product.
Page 3 　 Precautions before use WARNING ⃝ The following persons must not use this product. 　 (1) People who are prohibited by a doctor to receive a massage 　 Examples: persons with symptoms such as thrombosis (embolism), severe aneurysm, acute varicosity, dermatitis, and skin infection (including inflammation of subcutaneous tissue) 　...
Page 4 Continued from the previous page (Safety precautions) 　 Precautions before use CAUTION ⃝ Do not use the product in a manner other than the specified manner. Do not use this product along with another medical device or an object such as an electric blanket. →...
Page 5 　 Precautions before use WARNING Do not wind the power cable around the main unit, or step on it with the leg of the main machine. Do not damage, ⃝ break, process, forcefully bend, pull, or twist the power cable. →...
Page 6 Continued from the previous page (Safety precautions) CAUTION ⃝ Do not use the foot rest on body parts other than the feet. → 　 Failure to follow these instructions may cause you to get injured. ⃝ Do not operate the massage chair with no one present. Prohibited →...
Page 7 　 Precautions after use or during disuse of product CAUTION ⃝ Do not use the power cable on a device other than this product. ⃝ After using this product, be sure to completely raise the back rest and completely lower the foot rest. ⃝...
Page 8 Names and functions of machine components Monitor / Main Unit Remote Control Monitor Operate by tapping the screen. （ Accessory ） Main Unit Remote You can operate the main unit and also can install the monitor. Control Turns the main unit power "ON/OFF." When the remote control power is "ON," it lights up green.
Page 9 Continued (Name and functions of machinemponents) Main Unit ( Front side ) Armrests Armrest Smartphone pocket Footrest Footrest Back Side Footrest Top Panel Monitor (with Monitor Cable) Foot Heaters(right and left) Speakers Main Unit Remote Control Side Panels(right and left) Pillow Seat Cushion Foot Slide...
Page 10 Main Unit ( Back side ) Side Panel （ right and left) Air Cells Inlet Caster (right and left) Connector Power Cord Power Plug Main Power Switch Air Cells Pillow Air Cell Seat Left Air Cell Lower Back Right Air Cell Seat Front Air Cell Lower Back Left Air Cell Back Cushion Air Cell...
Page 11 Before Starting Massage Check around the chair Make sure that no one, pets or objects are around or behind the chair or in front of the leg section. Turn on the power Warning Use the product only at the specified power source. ⃝...
Page 12 Continued (Before Starting Massage) The startup screen appears on the Turn ON the Main Power Switch of monitor screen. During preparation, the main unit. the LED on the ON/OFF button fl ashes The main power switch is located on ⃝ in green.
Page 13 How to sit down on the chair Normally, each mechanism is in a stowed state. Back mechanism … Bottom of the backrest; Sole mechanism … Open state For safety, check each mechanism position before sitting down, and if it is not in a stowed state, do not sit down immediately but turn on the main power switch to return each mechanism to the stowed state, and then slowly sit down in the center of the chair.
Page 14 Continued (Before Starting Massage) Arm positions Correct arm positions Put your arms in between the armrest. Do not subject the armrest to strong impacts or lean on ⃝ it. It may cause deformation or damage. Place your hands palm-down. Caution Warning Do not place your arms outside the elbow rests of the...
Page 15 Extension and retraction of the footrest When raised to a certain height, the footrest can be extended/retracted. The extending/retracting length is approximately 27cm (11 inch). Caution Warning Do not sit on the footrest while it is being raised. Do not use the footrest for parts other than your legs. ⃝...
Page 16 How to Use the Monitor (Before sitting in the iCOCOON) How to activate the monitor The startup screen appears on the Turn ON the main power switch lo- monitor screen. During preparation, the cated at the back left of the iCOCOON LED on the ON/OFF button fl ashes in main unit.
