Ranger YT1500 Quick Start Manual

R E M O T E PA N / T I LT
T H E R M A L M O U N T
Q U I C K S TA R T G U I D E
Attention: The power supply of this gimbal requires a
5V2A or above charging head, and cannot be plugged into
the USB port of the computer. Turn off the remote control
and gimbal when not in use, otherwise the battery will be
drained.
The YT1500 remote control pan/tilt is driven by a stepper
motor with high positioning accuracy. The pan/tilt has 8
horizontal and vertical speeds from 0.05rpm to 4 rpm.
There are 2 preset positions and 2 user definable
positions which can be set and recalled with one click.
The gimbal can scan between points A and B at a set
speed. It is equipped with a shutter cable socket, which
can be connected to a camera for remote operation.
The gimbal has a load capacity of 2kg and is suitable for
ordinary SLR cameras.
There is a 1/4 screw hole under the head for easy
mounting to a tripod. It can be widely used in live broad-
cast, outdoor photography and other occasions.

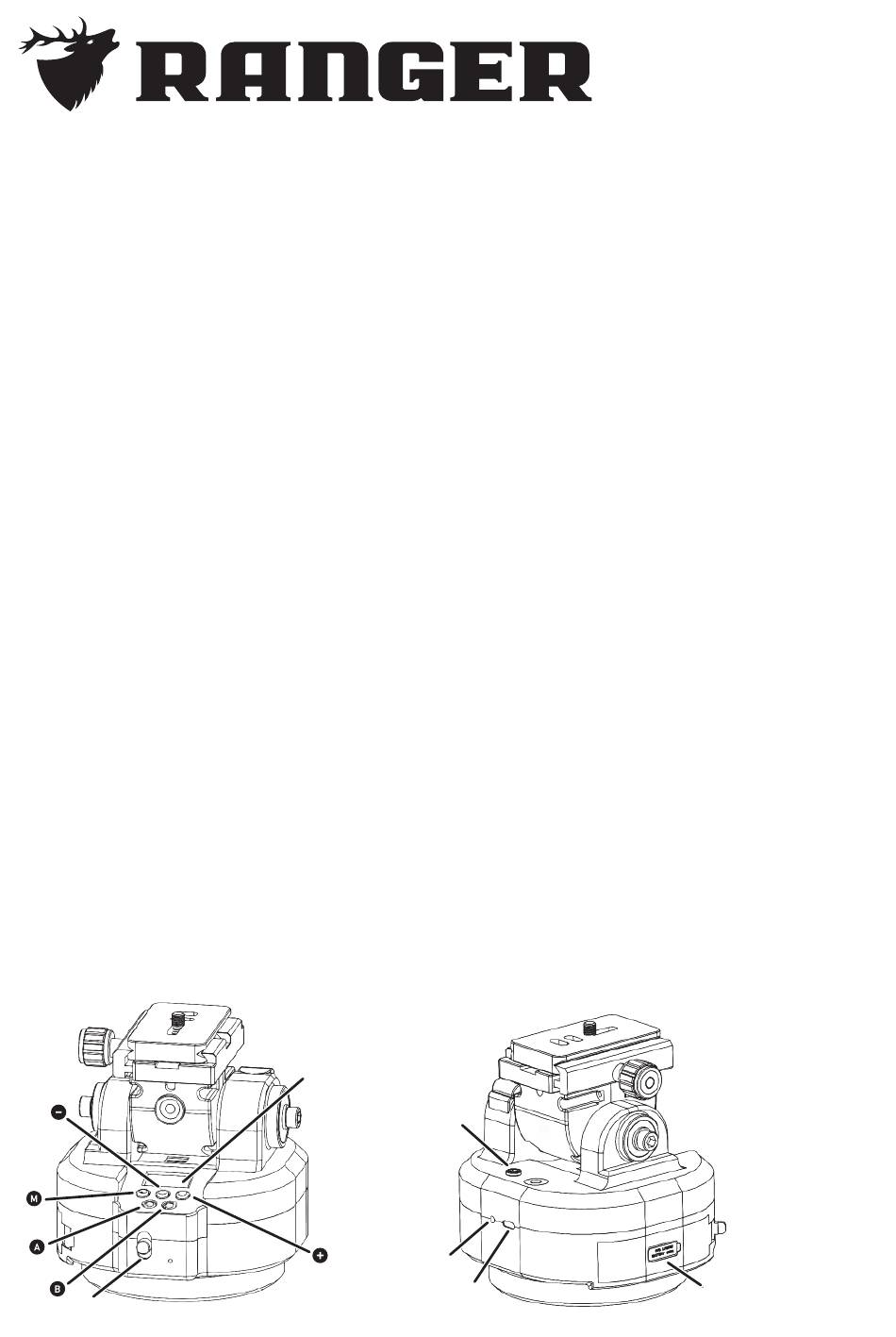

Power
Switch
Display
Shutter
Release
Charge
Indicator
5V2A DC IN
Battery
Compartment
