FC LIGHTING FCSL1100 Series Installation Instructions

FCSL1100 SERIES, 10-INCH EXTERIOR, STEP LIGHTS — INSTALLATION INSTRUCTIONS
CAUTION: BEFORE CONNECTING THE LUMINAIRE TO A POWER SUPPLY, MAKE SURE THE POWER IS SWITCHED OFF.
Stud Wall Installation
GENERAL:
1. Before starting the installation, make sure all electricity has been
turned off and electrical breaker has been locked out and tagged out.
2. To ensure the success of the installation, be sure to read these
instructions and review the diagrams thoroughly before beginning.
3. All electrical connections must be in accordance with local codes,
ordinances, or the National Electrical Code.
NOTE: The important safeguards and instructions appearing in this
manual are not meant to cover all possible conditions and situations
that may occur.
INSTALLATION:
IMPORTANT: Temporarily remove Splatter Shield and contents from
Back Box housing and set aside.
1. Install Drywall Mounting Brackets onto Back Box using 6-32
screws provided. Figure 1
2. Adjust brackets to align front face of backbox flush to face of finished
wall surface. Then fasten brackets to studs. Figure 2
3. Orient Back Box housing as shown to attach conduit. Connect
conduit to backbox using 3/4" K.O.s. Figure 3
4. Optional Hanger Bar Brackets can be used to hang the Back Box
between studs or braces to complete installation. Figure 4
5. Reinstall Splatter Shield and all contents using the (2) 8-32 screws
provided. Figure 5
WIRING: All wiring connections must be made in accordance with local
electrical codes, ordinances, and the National Electric Code.
© FC LIGHTING.

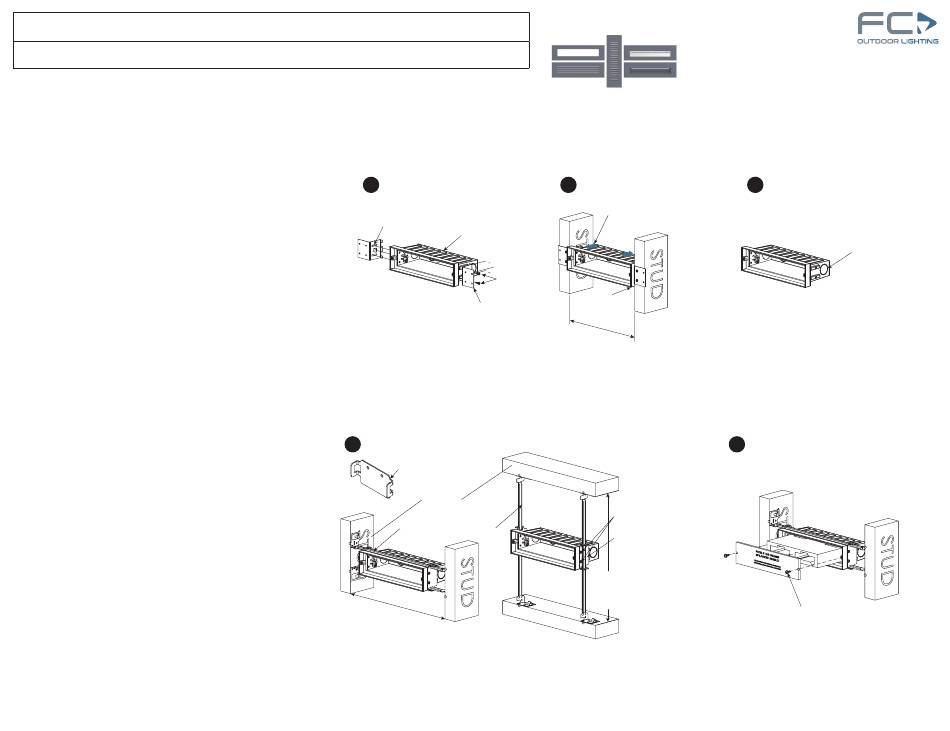

DETAILED ILLUSTRATION
Drywall Mounting Brackets
Included with Back Box Kit
1
Adjustable Slots
Back Box
6-32 Screws
(Included)
Drywall Mounting Brackets
(Included)
Optional — Hanger Bar (HB)
4
Hanger Bar
Mounting Bracket
Wall Stud
Hanger Bars
(Included with Hanger Bar Option)
26 inch Maximum Length
(14.25 inch Minimal Length)
Horizontal Adjustment
Back Box Conduit Entry
2
Adjustable
Back Box
Position IN / OUT
Align to Face of
Finished Wall
Compatible with
10 inch and 12 inch
Stud Distances
Back Box Splatter Shield
5
6-32 Screws
(Included)
Hanger Bar
Mounting Brackets
(Included with Hanger Bar Option)
26 inch Maximum Length
(14.25 inch Minimal Length)
Horizontal Adjustment
www.fclighting.com
3609 Swenson Ave.
St. Charles, IL 60174
3
(4) 3/4 inch Knockouts:
(2) On Back
(1) On Left Side
(1) On Right Side
8-32 Screws
(Included)
FCSL1100 Seriesii
TG-TD-100324
