Summary of Contents for Dawn Athena Series

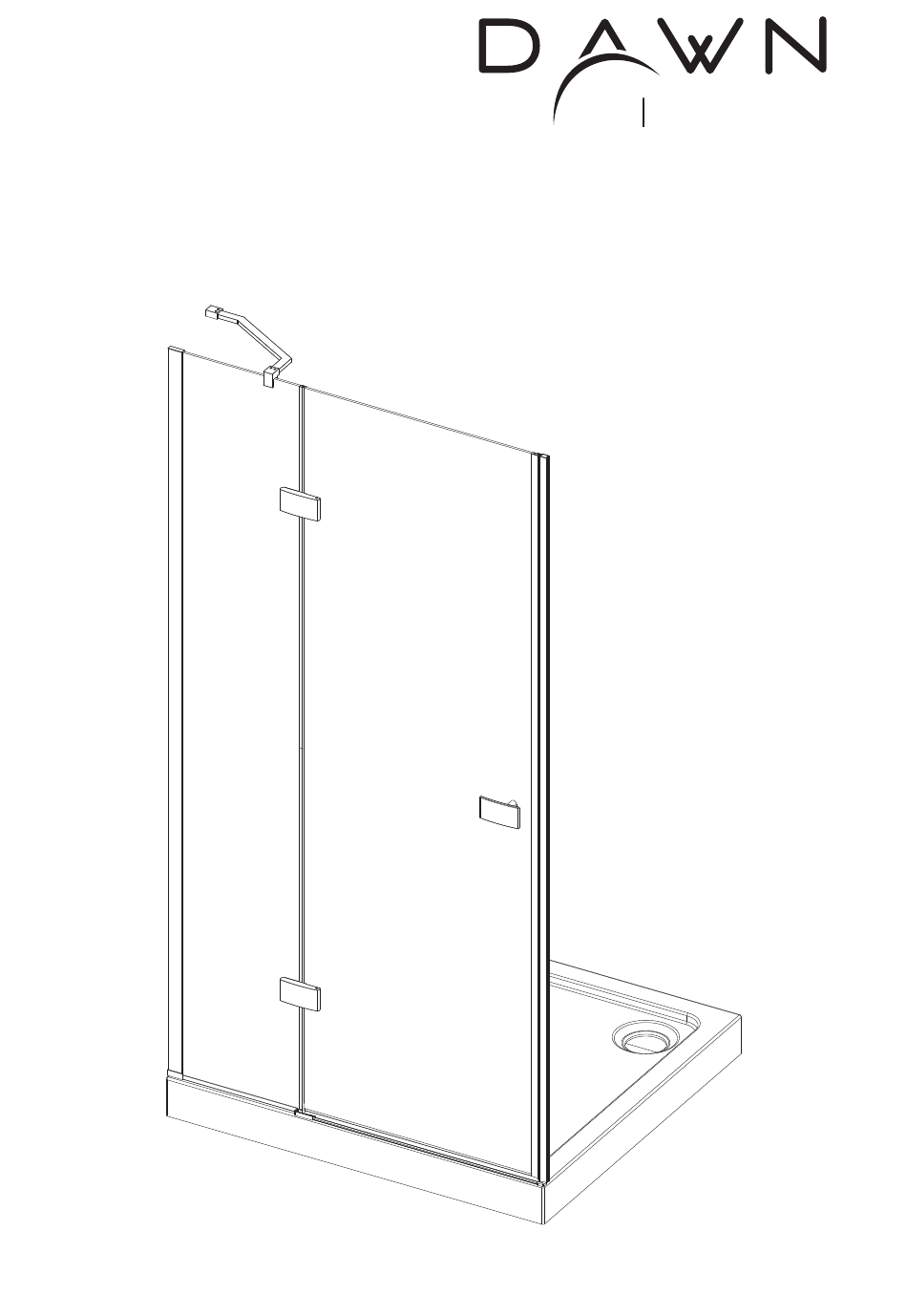

- Page 1 ATHENA FRAMELESS ENCLOSURE RANGE 6MM CONCEALED HINGE DOOR...
- Page 2 ASSEMBLY INSTRUCTIONS - DRAWING NB: ALL MEASUREMENTS + COMPONENT SIZES QUOTED ARE IN MM. (32) (31) (30) (29) (28) (27) (26) (25) (24) (23) (22) (21) (20) (10) (19) (11) (18) (12) (13) (17) (16) (14) (15) Parts List Parts List M05102 Wall Bracket JT0163-6-10/9GTS...
-
Page 3: Tools Required
FIXING KIT COMPONENTS N01041 N01042 M20412 N01135 M20430 N01882 N01464 N011157 / N011158 N01465 / N01466 N01114 / N01115 N01111 / N01112 N011156 N01110 M03185 N01046 M05542 M05102 M02043 M00075 N01521 M05583 F04009 TOOLS REQUIRED DESCRIPTION PART IMAGE DESCRIPTION PART IMAGE Tape measure Drill Flat-head... - Page 4 STEP 1 DRAWING TO SHOW CORRECT SHOWER TRAY INSTALLATION WALL WALL TILE OR WET TILE OR WET WALL PANEL WALL PANEL SHOWER TRAY SHOWER TRAY STEP 2 TRAY TO BE LEVEL MAKE SURE THE TRAY IS LEVEL, USING A SPIRIT LEVEL, BEFORE INSTALLING THIS SHOWER PANEL / DOOR, AND THAT SILICONE IS APPLIED ON ALL SIDES WHERE THE TRAY MEETS THE TILES / WET WALL PANELS.
- Page 5 ASSEMBLY CONCEALED HINGE DOOR PLEASE FOLLOW BELOW STEPS STEP 3 FITTING WALL PROFILE TO THE WALL ø6.0mm 20~40mm ST4x30 STEP 4 FITTING THE FIXED PANEL...
- Page 6 STEP 5 FITTING THE HINGES INSIDE INSIDE STEP 6 FITTING THE HINGES & MOVING PANEL INSIDE INSIDE...
- Page 7 STEP 7 FITTING THE BOTTOM DRIP STRIP STEP 8 FITTING THE SEALS INSIDE INSIDE...
- Page 8 STEP 9 FITTING THE WALL PROFILE B INSIDE 6.0mm ST4x30 STEP 10 SECURING THE WALL PROFILE B ST4x12...
- Page 9 STEP 11 FITTING THE SURPPORT BAR ø6.0m St4x30 STEP 12 FITTING THE CAPS , HANDLE AND STICK SCUTCHEON INSIDE INSIDE INSIDE...
- Page 10 STEP 13 SILICONE TO THE EDGE 24 hours Allow 24 hours for silicone to dry before use.
