All Things Cedar GA87 Quick Start Manual

Garden arbor

Advertisement

Quick Links

Required Tools:
#2 Philips or Robertson screwdriver, ½-inch wrench, tape measure, pencil, hammer or air stapler.
Package Contents:
(A) Arbor Posts... 4
(B) Canopy Header... 2
(C) X-Member... 4
(D) Top Beam... 2
(E) Side Slat... 20
(F) Short Side Lath... 4
(G) Long Side Lath... 2
(H) Canopy Slat... 16
(I) Trim... 2
(J) Furring Strips... 8
Hardware Pack:
2-½ inch (long) screw... 20
2-inch (short) screw... 14
Carriage Bolt... 8
Washer... 8
Hex Nut... 8
1-1/4-inch nail... 136
3/4-inch tacking nail... 120
STEP 1: Assemble Side Panel Frames

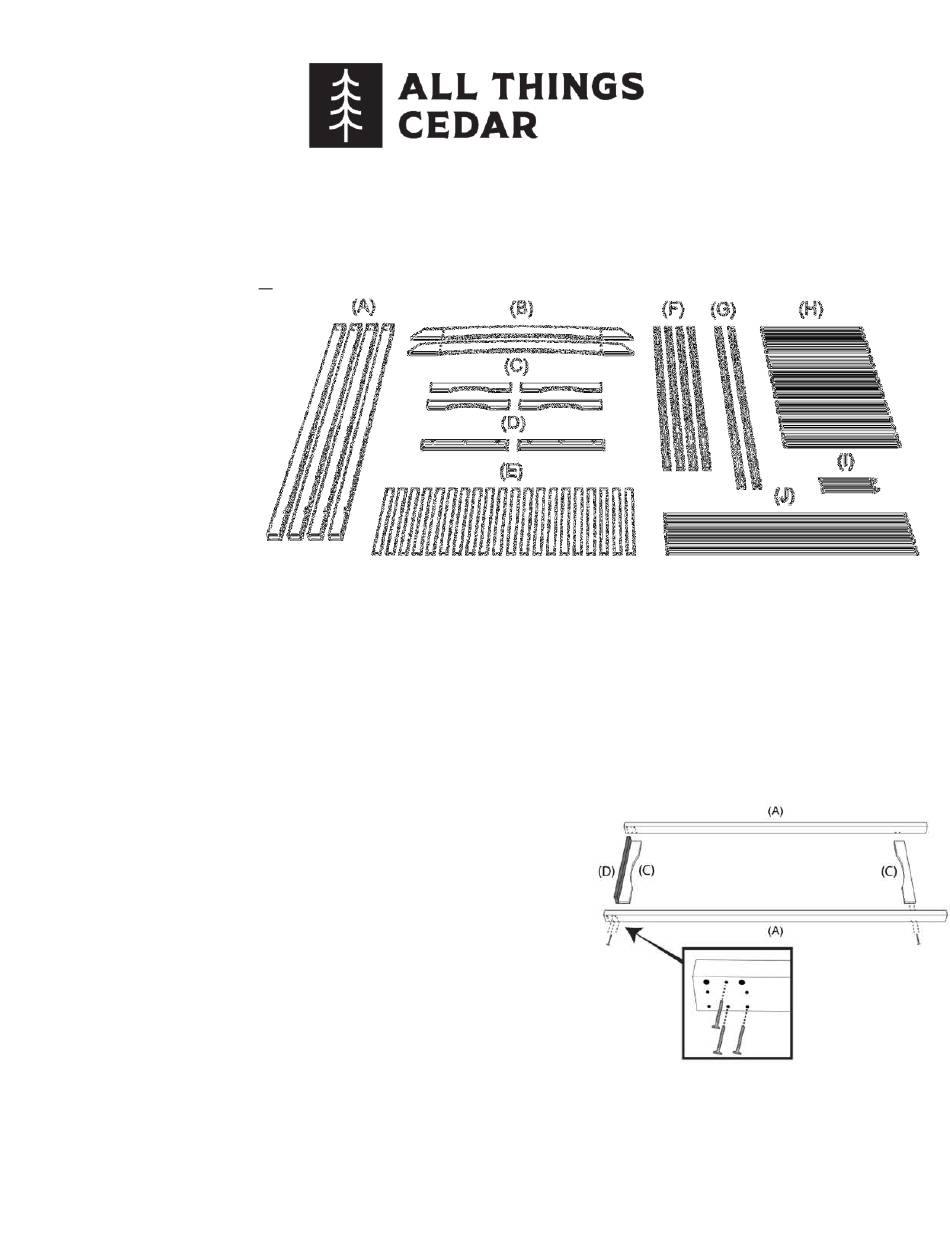

Place 2 Arbor Posts (A) on narrow edge, parallel to each other. Position
with bolt-holes closest to top.
Set Top Beam (D) 1-½ inches below top of posts, arrange with top
beam holes closest to ground, attach with long screws.
Line up top beam pre-drilled holes with edge of a X-Member (C), attach
with long screws. Attach to arbor post with short screws, 1 per post.
Make a pencil mark 6-½ inches up from post bottoms.
Set a X-Member (C) between posts on marks, attach with long screws.
Repeat to make a second Side Panel Frame
Garden Arbor
GA87
