Hudson Reed WRSRBP90 Instructions

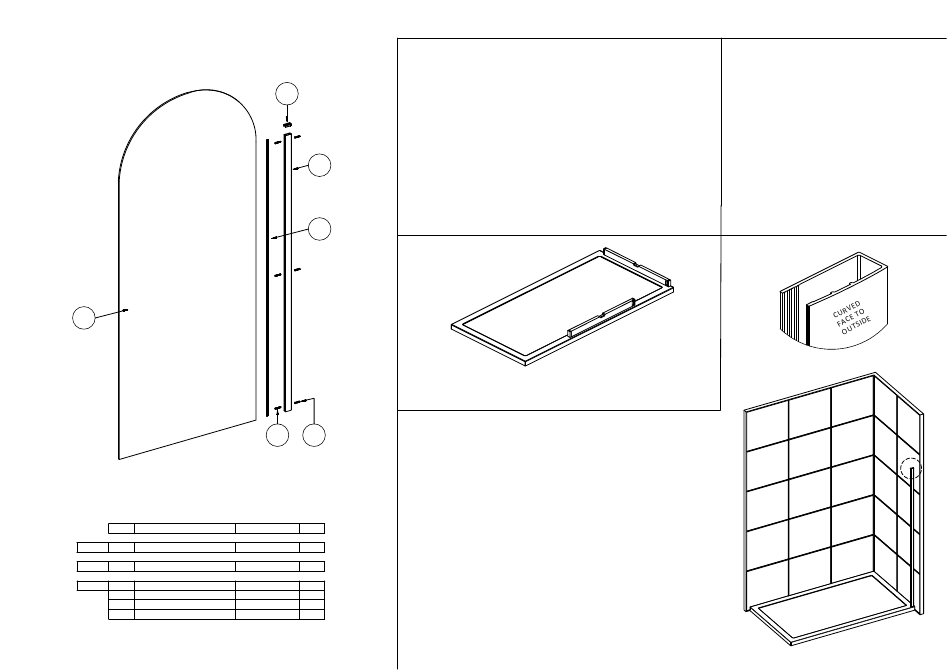

1
ITEM DESCRIPTION NOTES
PACK 1 1 GLASS
PACK 2 2 WALL PROFILE
PACK 3 3 'V' SEAL
4
WALL PROFILE TOP CAP LH/RH
5 30mm SELF TAP SCREWS WALL FIXING
6 PLASTIC WALL PLUGS
ARCHED WETROOM SCREEN INSTRUCTION
UNPACK THE BOX AND ENSURE ALL COMPONENTS ARE PRESENT.
THE TOUGHENED SAFETY GLASS IS MANUFACTURED TO SPECIFICATION
EN12150-1 AND SHOULD BE HANDLED WITH CARE AS IMPACTS CAN
4
DAMAGE THE GLASS AND CAUSE IT TO FAIL AT A LATER DATE.
NO REFUNDS OR REFITTING COST WILL BE GIVEN IF INCOMPLETE OR
DAMAGED GOODS ARE FITTED.
FIT THE SHOWER TRAY AS PER THE MANUFACTURERS INSTRUCTIONS.
IF YOU HAVE PURCHASED THE 'FRAMED' OR 'ABSTRACT' SCREENS, ENSURE
2
THAT THE PATTERNED FEATURE IS TO THE OUTSIDE OF THE ENCLOSURE.
NOTE! IF THE TRAY ISN'T TRUE AND LEVEL, IT MUST BE RECTIFIED BEFORE
SILICONING AROUND THE TOP EDGE OF THE TRAY WHERE IT MEETS THE
TILES. ALLOW THE SILICONE TO DRY BEFORE FITTING THE ENCLOSURE.
3
1
IF THE TRAY IS NOT LEVEL IT WILL CAUSE FITTING AND DRAINAGE ISSUES.
2
5 6
POSITION THE WALL PROFILE ON THE TRAY IN A SUITABLE POSITION
(TYPICALLY 12mm IN FROM THE EDGE OF THE TRAY) WHILST ENSURING
THAT THE CURVED FACE OF THE WALL PROFILE IS FACING OUTWARDS.
MAKE SURE THE PROFILE IS TRUE WITH A SPIRIT LEVEL, THEN MARK
THROUGH THE FIXING HOLES WITH A PENCIL.
REMOVE THE PROFILE, THEN DRILL AND PLUG THE WALL.
QTY NOTE! THE FIXINGS SUPPLIED (5 & 6) ARE GENERAL PURPOSE AND MAY
NOT BE SUITABLE FOR THE SUBSTRATE YOU ARE FIXING INTO.
1
FIT THE WALL PLUGS, THEN FIX THE WALL PROFILE IN PLACE.
1
1
1
3
3
ENSURE THE TRAY IS LEVEL IN ALL PLANES.
TOOLS REQUIRED:
POWER DRILL
6mm MASONARY DRILL BIT
CROSS HEAD SCREW DRIVER
TAPE MEASURE
PENCIL
SILCONE GUN
SANITARY GRADE SEALANT
SPIRIT LEVEL
