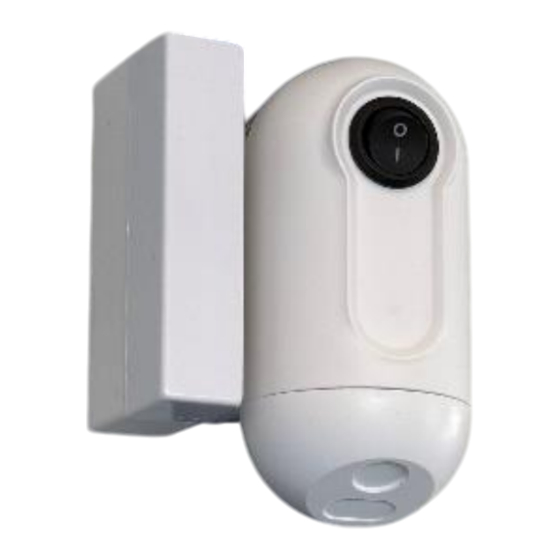

Daza 1089-V2 Quick Start Manual

Daza Doorcontact
1089-V2
(without switch)
1189-V2
(with switch)
V 2024 – 1.1
QUICKSTART GUIDE
TURNING THE DOORCONTACT ON/OFF
The door contact works in conjunction with the Daza receiver and
Pager. Ensure these devices are operational and, if necessary,
connected to the nurse call system. Refer to the respective manuals
for further details.
Activating the Door Contact:
•
Activate the door contact when the door is closed (set the
switch to position 1). A green LED will light up for 2 seconds
(only for model 1189-V2). The system will now trigger an
alarm when the door is opened. A red LED will flash, and an
alarm notification will be sent.
Deactivating the Door Contact (only for 1189-V2):
•
Deactivate the door contact before opening the door to
enter the room (set the switch to position 0).
•
If necessary, adjust the alarm settings on your nurse call
system.

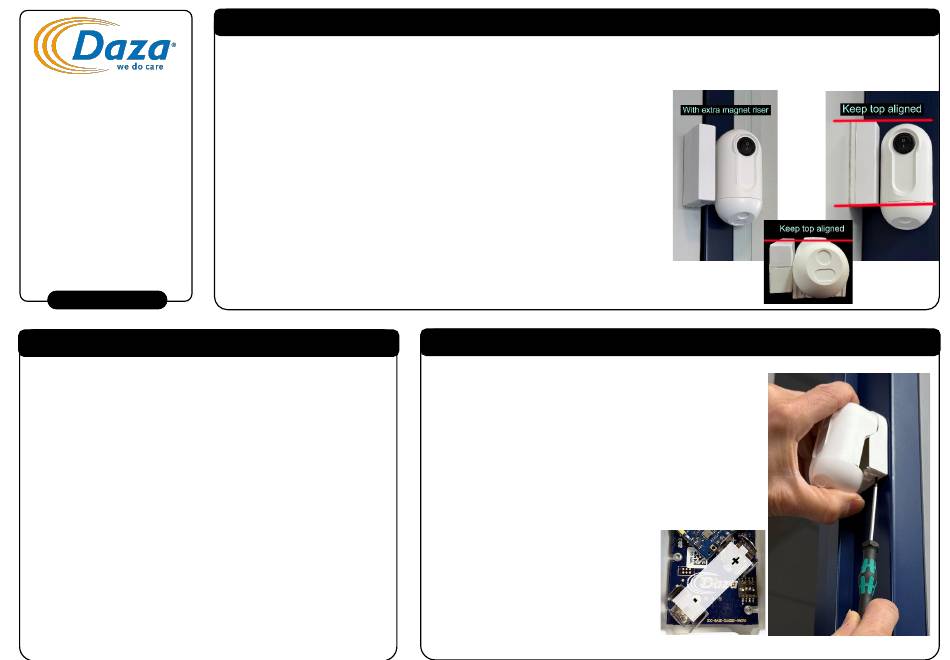

We recommend mounting the door contact and the magnet using the double-sided tape that has already been applied.
Alternatively, screws can also be used for installation. To do this, you will need to open the casing of the door contact (see battery
replacement). Depending on the type of door frame, you may need to use the plastic magnet riser (see example photos).
To prevent the client from disabling the door contact themselves,
it is preferable to mount it on the outside of the door.
The magnet can be mounted either to the left or right of the door contact.
It is important to ensure proper alignment. Use the Installation Mode
(see Installation Mode) to determine the correct position for the magnet.
Fix the door contact and the magnet only after you are certain of their proper
position and distance from each other.
Tip: First, remove a small section of the protective film from the double-sided tape.
Temporarily attach the magnet and the door contact to the door and frame.
You can now carefully test with the door open and closed to ensure the magnet
is properly detected.
MOUNTING
BATTERY REPLACEMENT
If the red LED briefly lights up every 2 seconds, this indicates that
the battery needs to be replaced. For the version with a switch
(1189-V2), the LED will light up red instead of green when
activated. Additionally, during an alarm notification or supervision
message, a low battery status will be sent, which can be viewed on
the Daza Pager and receivers where the door contact is registered.
Replace the battery with a 3.6-volt Lithium 2/3 A. Daza article
number: 7083.
To open the door contact, carefully press one of the two tabs at
the bottom behind the rounded section of the door contact using a
small screwdriver. While doing this, try to tilt the front section
upward. See photo. If needed, carefully press
the second tab while maintaining pressure to
tilt the cover. When inserting the new
battery, ensure the positive (+) terminal is
positioned at the top (see photo). To
reassemble the door contact, hook the
top section into place first.
