ShanWan Q42XL Manual

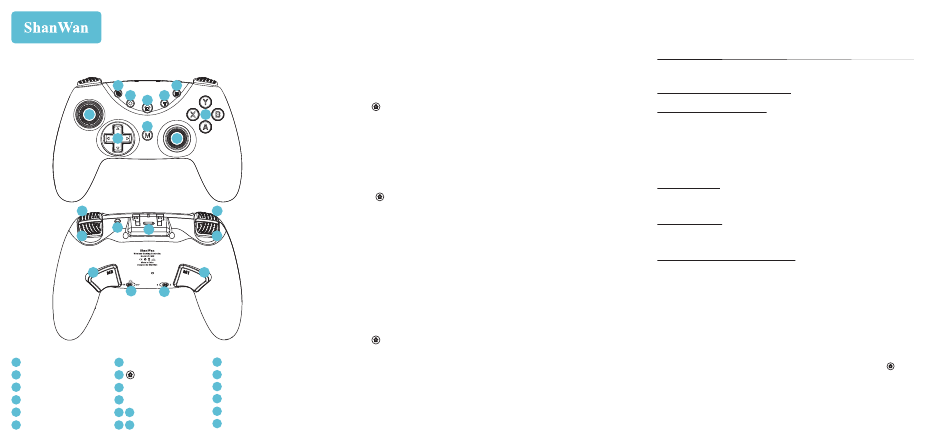

Function diagram
6 10
7 9
8
1
5
3 2
11
20
17
12
16
18
19
Left Joycon/L3 Button O/Screenshot Button
1 7
Right Joycon/R3 Button Pair/Power Button
8
2
D-pad Button T Button
3 9
X/Y/A/B Button Menu/+ Button
4 10
M Button R1/R2 Button
5 11 12
View/- Button L1/L2 Button
6 13 14
Android / iOS / Windows
Bluetooth connection
1. Right flip switch (near M1 key) : Switch to
2. First use (boot pairing) :
a) Press the Pair pairing button to start the pair, and the LED will blink.
b) Go to the Bluetooth device of the system and search for the Bluetooth device
named XBOX Wireless Controller
c) The LED is always blue when reconnection is successful.
3. Use again (Reconnection):
a) Press
b) The LED is always blue when reconnection is successful.
4
4. Press the Pair button to power off the device.
Wired connection
1. Right flip switch (near M1 button) : Switch to
2. Connect the gamepad to the device with the USB cable. After the recognition is
successful, the LED will be steady blue.
Receiver connection (receiver is optional)
1. The receiver is plugged into the computer and identified as XBOX (i.e. X-Input) mode.
2. Press M +
3. The LED lights up when the connection is successful.
13
4. Press the Pair button to power off the device.
Switch
14
NFC is not supported
Bluetooth connection
1. Right flip the SWITCH (near M1 button) : Switch to
15
2. First use (boot pairing) :
a) Press the Pair pairing button to start the pair, and the LED will blink.
b) On the SWITCH, select Controller → Change Grip/order to enter the SWITCH host
pairing screen for pairing.
c) The LED is always yellow when reconnection is successful.
3. Use again (Reconnection):
a) Press
b) The LED is always yellow when reconnection is successful.
4. Press the Pair button to power off the device.
M1 Button
15
Wired connection
M2 Button
16
On the SWITCH, go to System Setting → Controllers and Sensors → Open Pro
Type-C Port
Controller Wired Communication
17
X1 Backlight Switch 1. Right slide switch (near M1 button): Switch to
18
2. Use a USB TYPE-C cable to connect the controller to the Switch host.
X2 Mode Selection
19
3. Once the Switch is successfully recognized, it can be used and the LED will be
Pair Power Button
always yellow.
20
X for XBOX (X-Input) mode.
for pairing and connection.
to start the connection, and the blue light flashes slowly.
X for XBOX mode.
to power on and connect the receiver.
S for switch mode.
to start the connection, and the yellow light flashes slowly.
S for switch mode.
M/M1/M2 Button Function
M Button mapping function
M1/M2 are keys that can be mapped
Keys A/B/X/Y/up/down/left/right/L1/L2/R1/R2/L3/R3 can all be mapped to M1/M2 button.
If you want to map the A key to the M2 key, the mapping method is:
1. Press the mapped A + M button at the same time, the LED flashes;
(automatically exits after more than 1 minute)
2. Press the M2 button, the LED stops flashing
Cancel the mapping on the M2 key:
Press the mapped M2 + M at the same time
Clear all back key mappings:
Press the M button for 5 seconds
By default, M1 is L2, M2 is R2
T Button Function
T button is Turbo function.
A/B/X/Y/L1/L2/R1/L2/L3/R3 can set Turbo burst function
Setting method:
For example, set A button Turbo function
Press A button for the first time and then press T button to set Turbo function
Press A button for the second time and then press T button to clear Turbo function
Set Turbo speed:
Up + T: set 25Hz burst speed
Left/right + T: set 12.5Hz burst speed
Down + T: set 6.25Hz burst speed
Clear all set Turbo function buttons:
Press T button for 5 seconds
Charging / Sleep / Wake-up
1. When the controller is charging, the LED indicator flashes slowly (on and off for
3 seconds), and stays on after it is fully charged.
2. Sleep/wake-up function:
Pairing status: the controller will sleep if it' s not paired successfully within 2 minutes.
Connect back state: The controller will sleep if it is not connect back within 1 minutes.
Bluetooth is connected state:The controller will sleep if the controller is not used within
15 minutes.
When Bluetooth is connected, press the Pair button to shut down.
If you need to use it again, you can directly reconnect by short pressing
3. When the battery is low, the LED indicator flashes quickly (on and off for 0.6
seconds) to remind you.
Joystick settings
1. Joystick square and circle switching (default is to draw a circle): press R3 + Menu
2. Joystick dead zone switching (default is no dead zone): press L3 + Menu
.
