Radius
Installation Manual
05251- ING

Advertisement

loading
Need help?

Need help?

Do you have a question about the Radius and is the answer not in the manual?

Questions and answers

Related Manuals for Corradi Radius

Summary of Contents for Corradi Radius

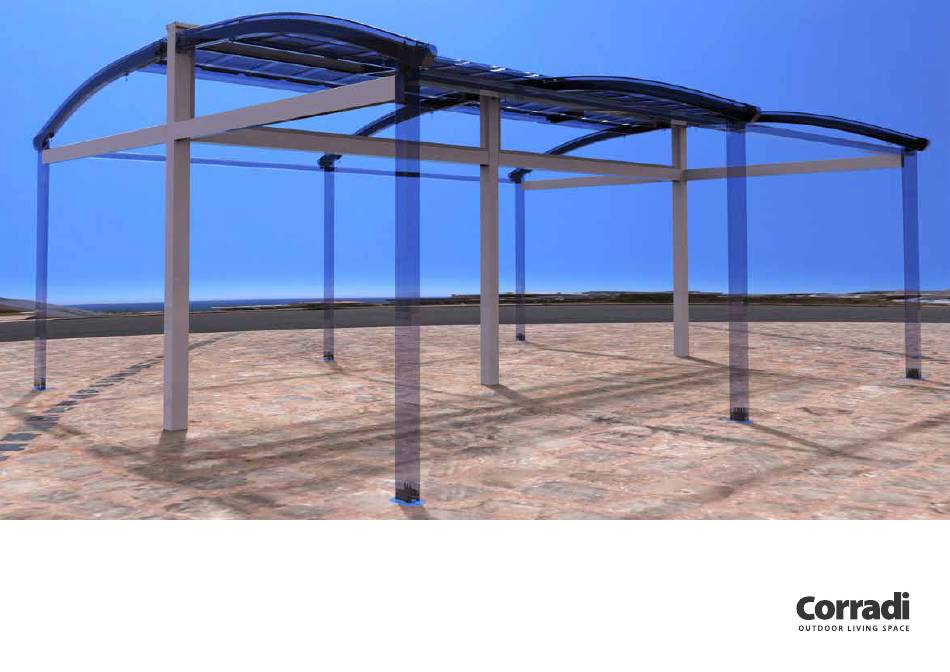

  • Page 1 Radius Installation Manual 05251- ING...
  • Page 3 Assembly of supporting beam for pelmet invalidate said warranty. Back gable (optional) Lateral gable (optional) CORRADI S.p.A. reserves the right to make technical modifications to the components or products, except Data sheets for the main features, at any time and without prior notice. Example CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...

  • Page 4: General Precautions

    Before undertaking any assembly, maintenance or cleaning operations, make sure that you have fully understood the indications in this manual. Failure to comply with the regulations contained herein relieves CORRADI S.p.A. of all responsibility for damage caused to persons, animals, property and/or components. The installation personnel must scrupulously comply with the local accident prevention regulations in force.

  • Page 5: Preliminary Checks

    The use of non-original spare parts, or unauthorised interventions or modifications shall relieve CORRADI S.p.A. of any responsibility for damage caused to persons, animals or property. It is strictly forbidden to tamper with the fixings, the supports, the guides, the fixtures, the drive and idler units and any other RADIUS component.
  • Page 6 MATERIAL CHECK, UNPACKING AND PREPARATION PRELIMINARY CHECKS RADIUS is delivered in robust packaging to protect it from knocks or dents. A label on the pack indicates: CORRADI SPA • Manufacturer data Via Brini, 39 40128 Bologna (ITALIA) • Order number tel.051-4188411 - Fax.051-4188400...
  • Page 7 4 guides Width Runner centre 1 Runner centre 2 Runner centre 3 Runner centre 4 5 guides Configurations of 60x120 portale version for Iridium, Palladia, Flux, Move (with straight pillars). CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 7 di 28...
  • Page 8 (B-SPACE) MILLENNIUM runner centre 1 MILLENNIUM runner centre 2 MILLENNIUM runner centre 3 MILLENNIUM runner centre 4 (MILLENIUM) (MILLENIUM) 5 guide Configuration of 120x120 portale version for B-Space, Millennium. 8 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 9 M8 x 20 Code 02066 Button screw M8 x 16 Code 02542 Nylock nut M8 Code 00194 Button head screw Dado M8 x 12 autobloccante M8 Code 02167 Cod.00194 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 9 di 28...
  • Page 10 Assemble node (A) and lower lock plate (B) with four screws (C) and the relative nylocks (D). Insert the twelve cage nuts (A) in the relative seats of the node (B). 10 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 11 Assemble node (A) and upper lock plate (B) with four screws (C) and the relative nylocks (D). Insert the eight cage nuts (A) into the four upper seats of node (B). CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 11 di 28...
  • Page 12 NODE CENTRAL NODE LEFT fig. 5 In relation to the pergola to be housed on the portal, insert the cage nuts onto the nodes as shown in the figure. 12 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 13 Fit foot (A) to pillar (B) and hand-tighten with the twelve screws (C). Fit the upper attachment (A) to pillar (B) and tighten with the four screws (C) and the four self-tapping screws (D). CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 13 di 28...
  • Page 14 Mount the two beams (A) to the side pillar (B) and to the central or side pillar (if two guides are used) (C), tightening with the sixteen screws (D). 14 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 15 Lift the structure to vertical position and mark out the position of the anchor holes using feet (A) as a template. Drill and keep the structure in vertical position without fully tightening the screws (B) of the anchors, not provided. CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 16 Mount the two beams (A) to the central pillar (B) and to the side pillar (C), tightening with the sixteen screws (D); continue in sequence in relation to the quantity of guides, in the same way, until the structure is completed. Check alignments and perpendicularity. 16 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 17 8 PORTAL ON MILLENNIUM fig. 11 To install the MILLENNIUM, mount one support (A) per pillar. CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 17 di 28...
  • Page 18 Insert the threaded bushes (D) and tighten them with a suitable tool (Callout C). Tighten with the relative screws (E) (Callout C-D). Repeat the operation on the front pillar of the pergotenda, ensuring the beams are aligned. 18 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 19 Position bracket (G) in correspondence with the pencil mark on the pergotenda pillar, using it as a template to mark out the holes (Callout E). Insert the threaded bushes (E), tighten them with a suitable tool and tighten the bracket (G) with screws (F) (Callout E). CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 20 10 ASSEMBLING THE UPPER PROTECTION HOOD Cod.03066 Cod.03066 Cod.03066 fig. 14 Assemble the upper protection hood (A) (already cut to size) on the beam (B). Tighten with the self-drilling screws (C). 20 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 21 Assemble the beam (B) to pillar (A) as indicated in the detail “X” using the bracket (C) and the screws (D and E). Fix the profile with Velcro (F) to the beam (B) with the self-drilling screws. CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 22 - Rest each section of frame on the respective side of the gable (3), drill ø6 every 50 cm and fasten with the screws provided (E) (4).Cut the gable using the measurements plus 10 cm on each side (5). 22 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 23 - Fix it to the gasket of the frame with metal staples fired by a staple gun (2). - Cut off any excess (3). - Complete the mounting of the spandrel by closing the frame with the opportune profile (4). CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 23 di 28...
  • Page 24 18 If the Pergotenda® has a lateral gable, fix the beam (B) to the pillar (A) through the screws (D). Insert the caps (C and E) inside their seating. 24 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 25 (not combined) for a maximum wind speed in accordance with that of the pergotenda LOAD ON ANCHOR (daN) N° ANCHORS PER MODEL SUPPORT Degree Beaufort 6 2 guides 1222 daN 3 guides 1222 daN 4 guides 1222 daN CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014 25 di 28...
  • Page 26 For the correct choice and use of the bolts refer exclusively to the manual of the fixing system manufacturer * data taken from the HILTI technical sheets (ST_HY 70_2008.PDF page 259-261 and hsl-3.PDF page62-63) 26 di 28 CoRRADI SPA - INSTALLATION MANUAL - RADIUS 0.03.2014...
  • Page 28 CORRADIgroup Corradi SpA Corradi System Srl 39, Via G. Brini 40128 Bologna - Italy 18, Via A. Einstein 47122 Forlì - Italy T +39 051 4188 411 F +39 051 4188 400 T +39 0543 796617 F +39 0543 794339 E info@corradi.eu...
