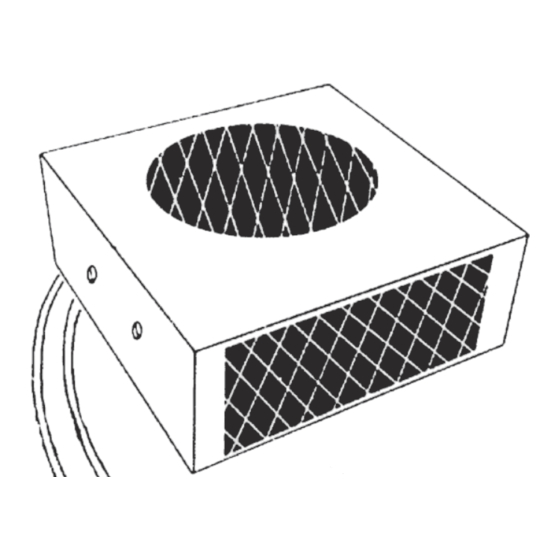

AUXILIARY HEATER
CONTENTS:
Heater • Mounting Brackets • Instruction Sheet • Installation Kit
INSTALLATION KIT INCLUDES:
(2) Y Splicers
(2) Rubber
Grommets
INSTALLATION DIAGRAM:
Materials required to install this heater are available in the kit shown above. In addition you will need 5/8" heater hose and 14 GA wire.
(HIGH SPEED)
TO POWER SOURCE
© Northern Factory Sales, Inc. 2017, All Rights Reserved. • www.NorthernFactory.com
AH500/12 VOLT
(8) Hose
Clamps
ORANGE
7.5A FUSE
(4) Mounting
(1) Rocker
Screws
Switch
RED
(LOW SPEED)
HIGH
OFF
LOW
SWITCH
(1) Switch Panel
(1) 7.5A
Inline Fuse
Advertisement
Summary of Contents for Northern AH500
- Page 1 Materials required to install this heater are available in the kit shown above. In addition you will need 5/8” heater hose and 14 GA wire. ORANGE (LOW SPEED) (HIGH SPEED) HIGH 7.5A FUSE SWITCH TO POWER SOURCE © Northern Factory Sales, Inc. 2017, All Rights Reserved. • www.NorthernFactory.com...
- Page 2 LIMITED WARRANTY Northern Factory Sales warranties its Heaters to be free from all defects in manufacturing and workmanship for one year from the date of installation. Any Heater claimed defective under this limited warranty should be forwarded to Northern Factory Sales, transportation charges prepaid, for inspection and warranty determination.
