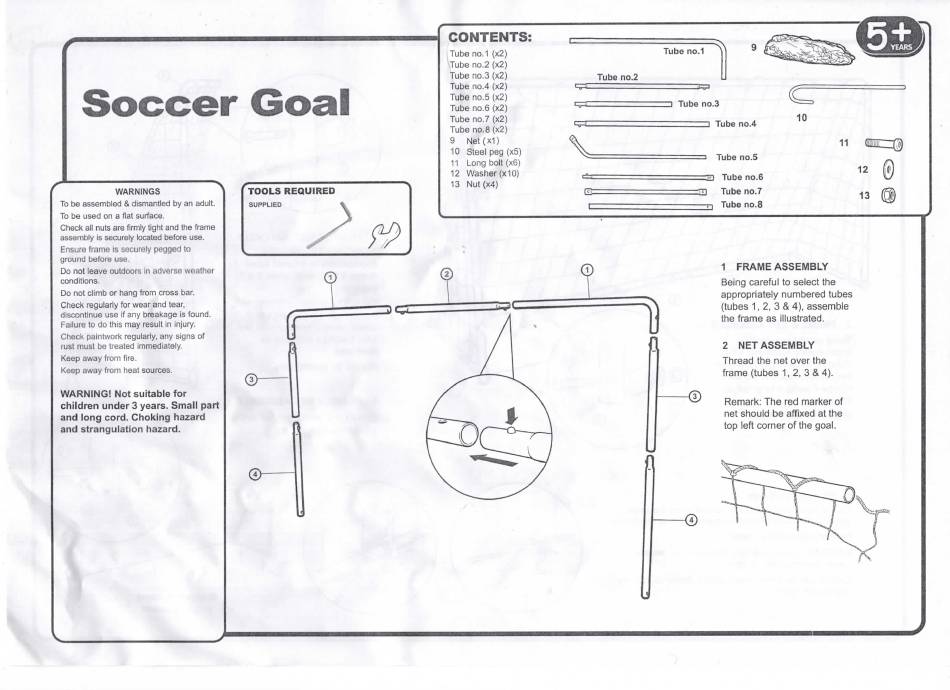

Merco 67467 Quick Start Manual

Soccer Goal
WARNINGS
To be assembled & dismantled by an adult.
To be used on a flat surface.
Check all nuts are firmly tight and the frame
assembly Ís securely located before use.
Ensure frame js f,c}r,`ircly pcggcd to
ground before usi..
Do not leave outdoors in adv(;r>;t> wt;íjtlior
conditions,
Do not climb or hang from cross bar.
Check regularly for wear and tear,
discontinue use lf any breakage is found.
FaHure to do this may result in injury.
Check paintwork regularly, any signs of
rust must be treated immeďately.
Keep away from fire.
Keep away írom heat sources.
WARNING! Not suitable for
children under 3 years. Small part
and long cord. Choking hazard
and strangulation hazard,
Gr-
CONTENTS=
Tube nc].1 (x2)
Tube no.2 (x2)
Tube no.3 (x2)
Tube no.4 (x2)
Tube no.5 (x2)
Tube no.6 (x2)
Tube no.7 (x2)
Tube no.8 (x2)
9 Net(xl)
10 Steel peg (x5)
11 Long bolt(x6)
12 Washer (xl0)
13 Nut(x4)
Tube no.1
Tube no.2
Tube no.5
Tube no.6
Tube no.7
Tube no.8
1 FRAMEASSEMBLY
Being careful to select the
appropriately numbered tubes
(tubes 1, 2, 3 & 4), assemble
the frame as illustrated.
2 NETASSEMBLY
Thread the net over the
frame (tubes 1, 2, 3 & 4).
Remark: The red marker of
net should be afflxed at the
top left corner of the goal.
