Valuxhome VLM01EF36RG Use And Care Manual

Fireplace tv stand
Hide thumbs

Advertisement

Table of Contents

USE AND CARE GUIDE
Questions, problems, assembly help, missing parts?
We will gladly help and ship your replacement parts free of charge.
If you have any question related to product please free to contact our customer
THIS INSTRUCTION CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE

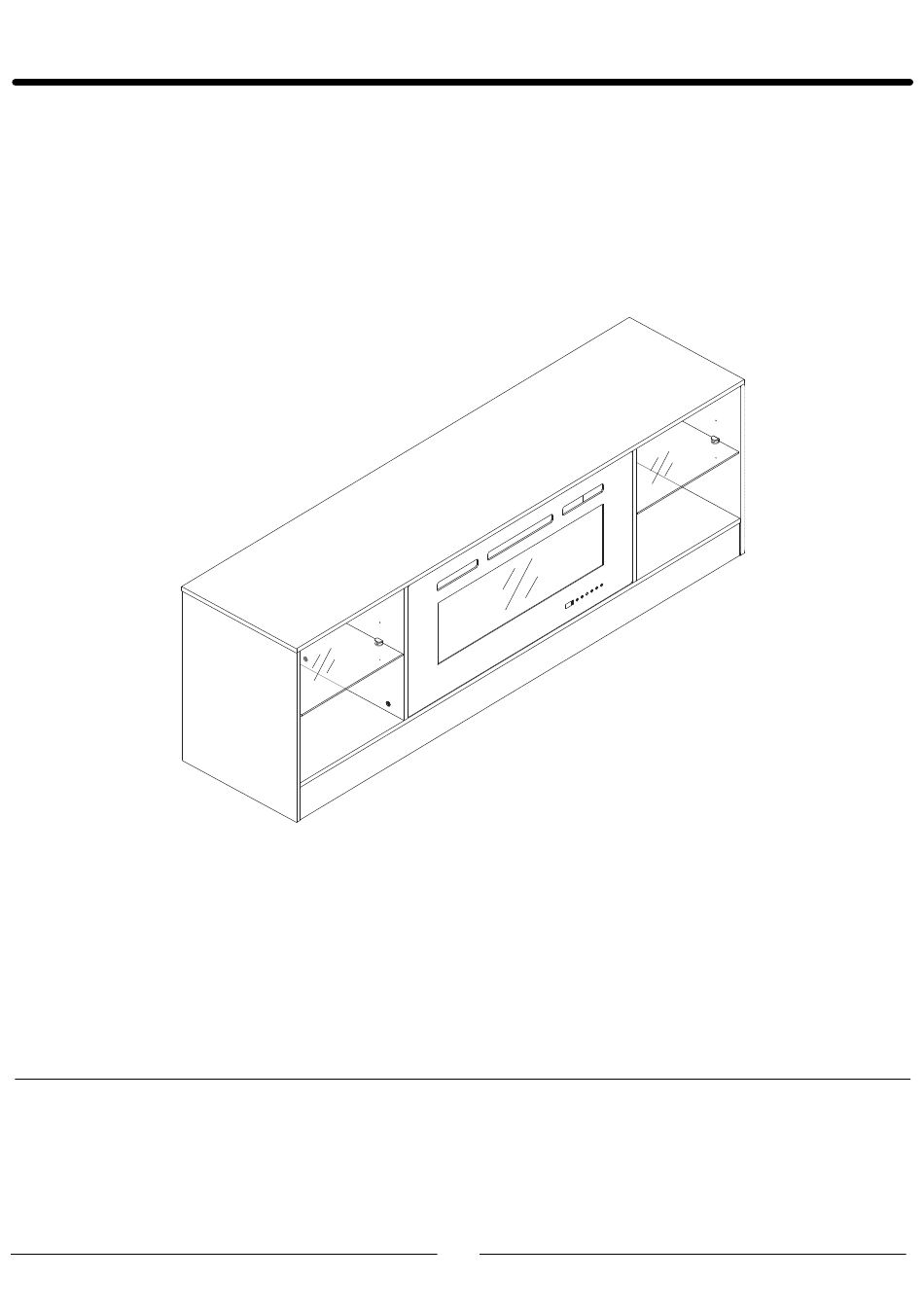

FIREPLACE TV STAND
IMPORTANT
service mail: ervice@velayhome.com
s
IMPORTANT
1
Model#: VLM01EF36RG
VLM01EF36RW
VLM01EF36RB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VLM01EF36RG and is the answer not in the manual?

Questions and answers

Summary of Contents for Valuxhome VLM01EF36RG

  • Page 1 Model#: VLM01EF36RG VLM01EF36RW VLM01EF36RB USE AND CARE GUIDE FIREPLACE TV STAND IMPORTANT Questions, problems, assembly help, missing parts? We will gladly help and ship your replacement parts free of charge. If you have any question related to product please free to contact our customer service mail: ervice@velayhome.com...

  • Page 2: Before You Start

    ！ WARNING Do not allow chlidren to climb on unit Serious or fatal crushing injuries can occur from furniture tip-over,To prevent this furniture from tipping over it must be permanently fixed to the wall. Fixing devices for the wall are not included since different wall materials require different types of fixing devices.
  • Page 3 HARDWARE PART LIST ① ② X 49+2 X 49+2 CAM BOLT CAM LOCK ③ ④ X 6+1 GlASS BRACKET SCREW ⑤ ⑥ X 3+1 LED LIGHT & REMOTE SCREW CONTROL ⑦ X 22+2 WOOD DOWEL...

  • Page 4: Board Identification

    BOARD IDENTIFICATION NOT SHOW ACTUAL SIZE...
  • Page 5 STEP 1 ① 1.Unpack the unit and confirm that you have all the hardware and required parts. Assembly the unit on a carpeted floor or the empty carton to avoid any scratch. 2.Securely screw cam bolt (1) into parts (I), (N), (H) with screwdriver as per diagram. ①...
  • Page 6 STEP 2 ② 3.First, using cam lock (2) to attach parts (I) and (N) to parts (O). 4.Then use cam lock (2) to attach parts (I), (O), (N) to parts (H) as per diagram. ②...
  • Page 7 STEP 3 ① ⑦ 5.Securely screw cam bolt (1) into part (B) with screwdriver . 6.Meanwhile, insert wood dowel (7) into part (B) . ⑦ ①...
  • Page 8 STEP 4 ② 7.Attach parts (I), (O), (N), (H) to the assembled part (B) with cam bolt (2) as per diagram. ②...
  • Page 9 STEP 5 ① ⑦ X 12 8.Securely screw cam bolt (1) into assembled parts (B) and also parts (E) and (F) . 9.Insert the wood dowel (7) into parts (B) as per diagram. ⑦ ①...
  • Page 10 STEP 6 ② 10.Attach parts (E) and (F) to assembled parts (B) with cam lock (2) as per diagram. ②...
  • Page 11 STEP 7 ① X 12 11.Securely screw cam bolt (1) into parts (C) and (D) with screwdriver. ①...
  • Page 12 STEP 8 ② 12.Attach two parts (G) to each part (D) and (C) separately with cam bolt (2)as per diagram. ②...
  • Page 13 STEP 9 ② ⑦ X 12 13.Attach the assembled left parts (G) and (D), right part (G) and (C) to the assembled parts (B) with wood dowel (7) 14.Then insert the cam lock (2) to make sure all the parts get together as per diagram. ②...
  • Page 14 STEP 10 ② ⑦ 15.Insert wood dowel (7) into parts (E) and (F) . 16.Then attach parts (K) and (J) to parts (E) and (F) with cam lock (2) as per diagram. ② ⑦...
  • Page 15 STEP 11 ④ 17.Unpack the fireplace insert from firebox box, lift the fireplace insert carefully in the front of assembled mantel by screws (4) as per diagram. ④...
  • Page 16 STEP 12 18.Fix the fireplace glass cover as per diagram. √...
  • Page 17 STEP 13 ③ 19.Inset the glass brackets (3) into the designed holes on parts (C) , (E), (F), (D) by screws prepared. ③ ③ ③...
  • Page 18 STEP 14 ① ⑤ ⑦ 20.Securely screw cam bolt (1) to the part (A). Then attach part (L) to part (A) with screws (5) . 21.Please pay attention to the direction of part (L). 22.Insert wood dowel (7) into part (A) . ①...
  • Page 19 STEP 15 ⑥ 23.First, remove the back glue from the LED light (6), then stick it to assembled part (A) as per diagram. ⑥...
  • Page 20 STEP 16 ② 24.Finally, attach assembled parts (A) to the assembled mantel by cam lock (2) as per diagram . ②...
  • Page 21 STEP 17 25.Inset the tempered glass (M) to the left and right side as per diagram . 26.Please pay attention to adjust the screws to make sure the glass (M) is stable inside as per diagram. ③ ③...
  • Page 22 LED controller Wall ATTENTION : Please make sure the LED controller exposed outside of the TV stand top board as the following diagram. So that it is much easier to remote control the LED lights.

  • Page 23: Maximum Load

    Maximum Load This unit has been designed to support the maximum loads shown.Exceeding these load limits could cause sagging,instability,collapse,and serious injury.

  • Page 24: Maintenance

    Maintenance To clean and care for your furniture: Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish.
  • Page 25 Your assembly should now be complete. Thank you for your purchase. “KEEP THESE INSTRUCTIONS FOR FURTHER REFERENCE"...
