SteelSeries APEX PRO TKL Manual

GENERAL

PACKAGE CONTENTS

Apex Pro TKL Keyboard
Detachable Braided USB-C to USB-A Cable
Magnetic Wrist Rest
Keycap Puller

SYSTEM COMPATIBILITY

PC
Mac (Not all software features supported on Mac OS)
Xbox
PlayStation

SOFTWARE

GENERAL - SOFTWARE

Use Engine inside SteelSeries GG to customize your lighting, macros and more.

GG also has other amazing apps like Moments, which makes it easier and faster to clip and share highlights with friends.

DOWNLOAD NOW steelseries.com/gg

PRODUCT OVERVIEW

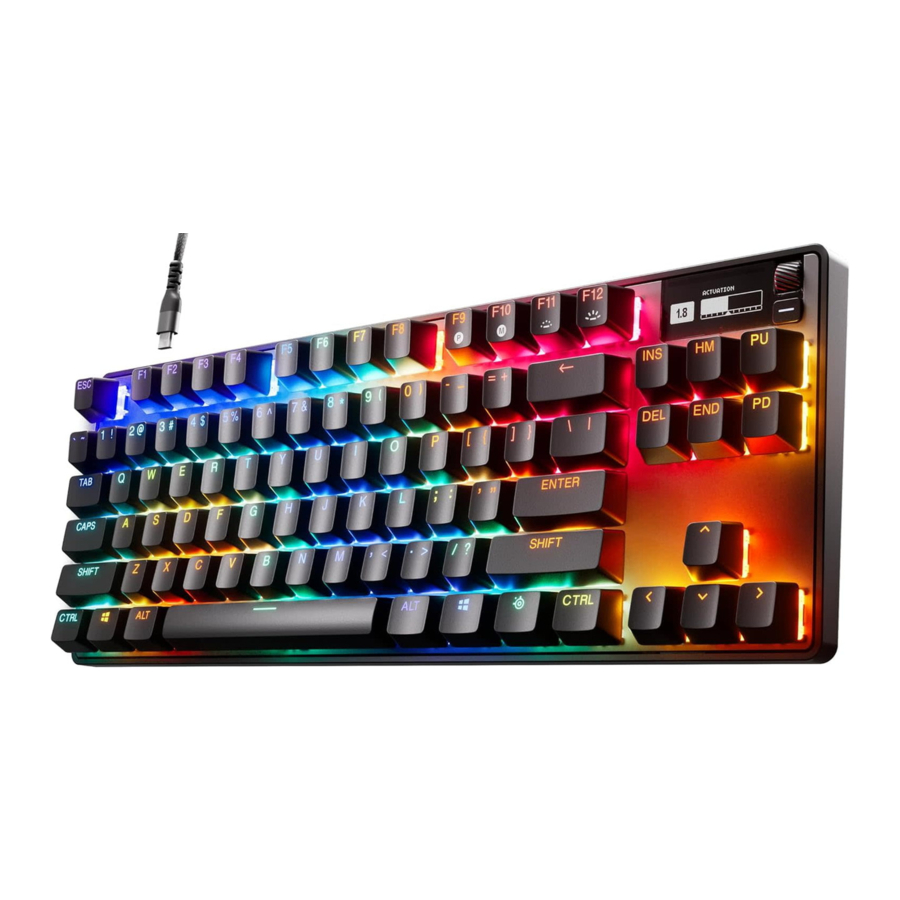

KEYBOARD

PRODUCT OVERVIEW - KEYBOARD

USB-C Jack
Profile Switching Key
On-the-Fly Macro Recording Key
Illumination Brightness Key Down
Illumination Brightness Key Up
OLED Smart Display
OLED Menu Button
Multimedia Volume Roller
Tri-Level Feet (not pictured)
Keycap Puller Socket (not pictured)
SteelSeries Function Key
Magnetic Wrist Rest

ACCESSORIES*

PRODUCT OVERVIEW - ACCESSORIES

Detachable Braided USB-C to USB-A Cable*
Keycap Puller (located on bottom of keyboard)

SETUP

CONNECTION

SETUP - CONNECTION

FUNCTIONS

PROFILE SWITCHING

Press the SteelSeries Function Key (11) + Profile Switching Key (2) repeatedly to cycle through the profiles.

ON-THE-FLY MACRO RECORDING

Press and hold the SteelSeries Function Key (11) + On-the-Fly Macro Recording Key (3) for 3 seconds to start recording.
Type your desired key combinations.
Press the SteelSeries Function Key (11) + On-the-Fly Macro Recording Key (3) to end Macro Recording.
Lastly, select a key to which you would like to bind the recorded macro.

ILLUMINATION BRIGHTNESS CONTROL

Press the SteelSeries Function Key (11) + Illumination
Brightness Key Down (4) to reduce Illumination Brightness.

Press the SteelSeries Function Key (11) + Illumination
Brightness Key Up (5) to increase Illumination Brightness.

MULTIMEDIA CONTROLS

Multimedia Volume Roller (8)

Volume Up	Scroll Wheel Up
Volume Down	Scroll Wheel Down
Mute / Unmute Toggle	Press Wheel

OLED Menu Button (7)

Play / Pause	Single Press
Forward / Skip Track	Double Press
Back / Previous Track	Triple Press

OLED SMART DISPLAY INPUT

OLED Menu Button (7)

Enter OLED Menu	Long Press (2 sec)
Back / Exit	Single Press

Multimedia Volume Roller (8)

Navigate Menu Up	Scroll Wheel Up
Navigate Menu Down	Scroll Wheel Down
Select Highlighted Item	Press Wheel

SWAPPABLE KEYCAPS

Each Keycap on the Apex Pro TKL can be removed and replaced. Use the Keycap Puller (14) located on the bottom of your Keyboard to easily pull off each Keycap. Replacement and additional designer Keycap Sets are available for purchase on steelseries.com.

ACTUATION ADJUSTMENT

Access the Actuation menu on the OLED or use the hotkeys below to adjust actuation levels on-the-fly.

OMNIPOINT ADJUSTABLE ACTUATION

SteelSeries Function Key (11) + "I" lifts the actuation point (deeper keypress).

SteelSeries Function Key (11) + "O" lowers the actuation point (lighter keypress).

Use Engine inside SteelSeries GG to configure the adjustable actuation on a per-key basis.

RAPID TRIGGER

SteelSeries Function Key (11) + "T" toggles Rapid Trigger on or off.

Alternatively, click the Multimedia Volume Roller (8) while in the OLED Actuation menu to toggle Rapid Trigger on or off. When enabled, a lightning bolt will appear on the OLED display.
Use Engine inside SteelSeries GG to configure Rapid Trigger on a per-key basis.

*Find accessories and replacement parts at steelseries.com/gaming-accessories

Learn more at steelseries.com
