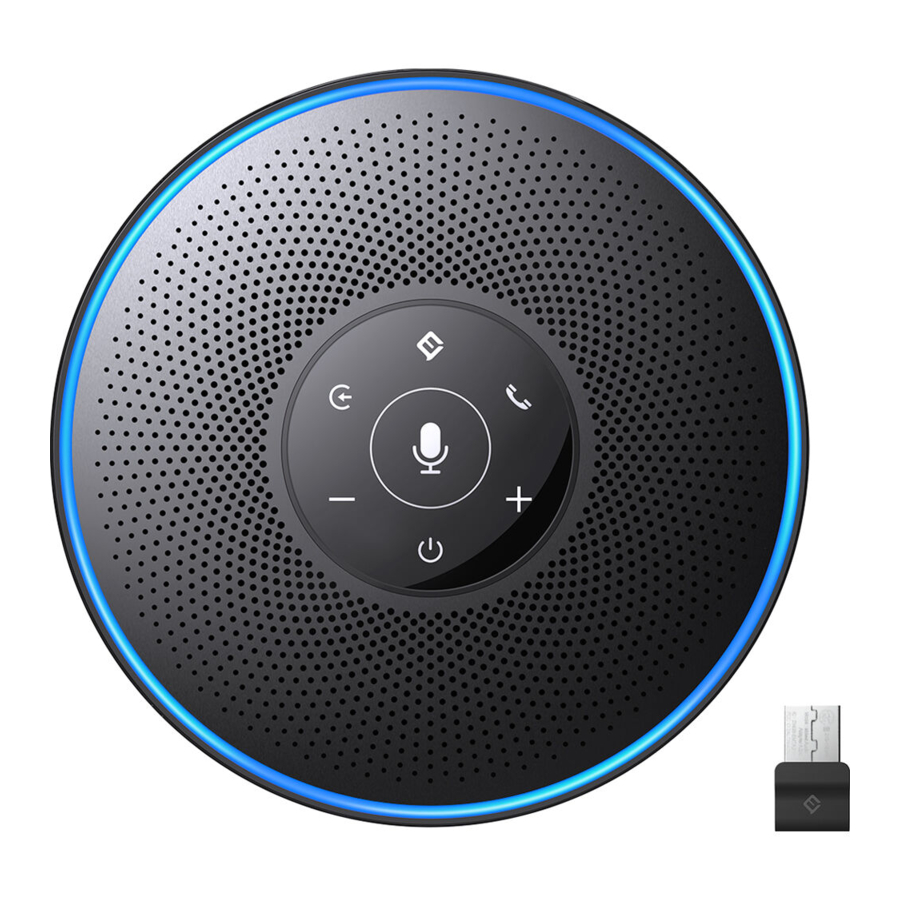

eMeet OfficeCore M2 / M220 Lite Manual

Buttons

1. AI noise reduction On/Off
2. Bluetooth button
3. Answer/End Call
4. Volume up
5. Volume down
6. Mic Mute/Unmute
7. Power On/Off
8. LED Status Indicator
9. LED Ring-shaped

10. Lock port
11. AUX audio input port
12. Audio output/Daisy chain port
13. USB port
14. Microphone

Button Controls

Button	Action	Status
	Press and hold	Power on/off
	Press	Battery level
	Press	Volume up
	Press	Volume down
	Press and hold 2 seconds	Enter Bluetooth pairing mode
	Press	AI noise reduction on/off
	Incoming call, press	Answer a call
	Incoming call, press and hold for 2 seconds	Reject a call
	Call going, short/long press	End a call
	Press	Mute/Unmute microphone

LED Status Indicator

WHAT	Status	Light
USB	USB connection (Power On)	Steady green
	Charging in power-off state	Flashes Yellow-green
	Fully charged in power-off state	Steady Yellow-green
Bluetooth	Bluetooth pairing	Flashes blue
	Bluetooth connected	Steady blue
AUX IN	Audio in connection	Steady white
Daisy chain	Daisy chain connection	Steady cyan

LED Ring-shaped

Status	Light
Battery level	Turns green
Battery low display	Flashes red
Mic Mute	Turns red
Volume level	Turns blue
Incoming call when Bluetooth is connected	Flashes blue
Skype for business incoming call when USB is connected
Skype for Business Hold Mode	Turns cyan

How to use

Power On/off

Press and hold the power button "" for 2 seconds to power on or off.

Connection

1. After connect the device to a PC via USB, start to use it.

2. After connect it to the PC through eMeet Audio Adapter A200, start to use it.

3. After connect mobile devices such as PCs or mobile phones through Bluetooth pairing, start to use it.


Note: When turning on the device, it will connect to the last computer/mobile phone via Bluetooth whilst it is active.

• The names of Bluetooth in different products models are different:

AI Noise Reduction

Short press " " AI Noise Reduction button to enable/disable AI noise function.

Turning on VoicelA noise reduction can greatly reduce some noises in the meeting scene, such as from keyboard tapping, air conditioning noise, and general unwanted background noise.

Note: After the noise reduction mode is enabled, in Order to maintain good sound pickup effect, please make a call within a sound pickup range Of 1.5 meters.

Charge

1. Via the computer

2. Through the adapter


Check Battery level

Short press "" to check Battery level.
When the device reaches 5% battery level, the ring-shaped light will glow red, and a low battery prompt will be generated.

Audio Output

Use the AUX cable to connect the external speaker to the AUX OUT port of this device, and the audio will be played synchronously with this device through the external speaker.

Daisy chain function

The Daisy chain function requires the use of Daisy chain cable, which are inserted into the OUT port (Red terminal) of the two machines using Daisy chain cable to extend the distance of sound pickup and playback so as to get a larger meeting space.

Note: Daisy-Chain cable is not provided with M2 product.

Audio Input

Use the AUX cable to connect the phone to the AUX IN ports of this device. This device will replace the speaker and microphone of the phone.

LOCK port Setting

Lock the product through the LOCK port to prevent theft.

Note: The LOCK port is of a Kensington computer type which requires the user to buy a lock otherwise.

Product information

Note: In case of any change in specifications, official website information shall prevail.

FAQ

Customer Service

e-mail: support@emeet.ai

www.emeet.ai

TEL.:+ 1 8889595320 (EST 9:00am-5:00pm Mon-Fri) (US)
