Yuba BODA BODA Manual

INTRODUCTION

This manual is designed to give you the information you need for the safe operation and maintenance of your new bicycle. Please read it thoroughly before riding your bicycle.

Your bicycle's serial number is stamped on the kickstand plate of the bicycle. Record the serial number in the event that your bicycle is lost or stolen. Please register your serial number online: yubabikes.com/register

Since all the components on your YUBA are industry standard, repairs or replacements can be performed at virtually any retail bicycle dealer.

If you have any questions about your YUBA bicycle after reading this manual, or encounter any please call YUBA's Customer Support Team toll free at 877 889-YUBA.

ASSEMBLY OF YOUR NEW BICYCLE

Assembly and the first adjustment of your bicycle take special tools and skills, it is recommend that this should be done by a trained bicycle mechanic.
If you have any questions after reading the information in this manual, talk to your dealer or us.
This manual conforms to these standards:
CPSC CFR 1512
CEN 14764, 14765, 14766, 14872

GENERAL WARNING

Like any sport, bicycling involves risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and to practice — the rules of safe and responsible riding and of proper use and maintenance. Proper use and maintenance of your bicycle reduces risk of injury.

• This Manual contains many "Warnings" and "Cautions" concerning the consequences of failure to maintain or inspect your bicycle and of failure to follow safe cycling practices.
• The combination of the! safety alert symbol and the word WARNING indicates a potentially hazardous situation, which, if not avoided, could result in serious injury or death.
• The combination of the! safety alert symbol and the word CAUTION indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury, or is an alert against unsafe practices.
• The word CAUTION used without the safety alert symbol indicates a situation, which, if not avoided, could result in serious damage to the bicycle or the voiding of your warranty.

In this manual, the CAUTION sign indicates a hazardous situation, which, if not avoided, may result in minor or moderate injury

In this manual, the WARNING sign indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

Many of the Warnings and Cautions say "you may lose control and fall". Because any fall can result in serious injury or even death, we do not always repeat the warning of possible injury or death.
Because it is impossible to anticipate every situation or condition, which can occur while riding, this Manual makes no representation about the safe use of the bicycle under all conditions. There are risks associated with the use of any bicycle which cannot be predicted or avoided, and which are the sole responsibility of the rider.

OWNER'S RESPONSIBILITY

Before riding your YUBA bicycle, carefully follow all assembly instructions.

• Ensure your bike is the correct size for your comfort and safety. When standing over the frame (straddle frame) you should have a minimum of 1.0" clearance between the boom tube and your body. Personal adjustment of the saddle is also necessary to assure maximum safety and comfort. Open the quick release lever on the seat tube and adjust the height of the saddle. When seated, your leg should be fully extended with the knee slightly bent and the ball of the foot on the pedal at the lowest pedal position.
• Double check to ensure all bolts and screws are tight.
• Make sure that anyone to whom you loan your YUBA understands how to operate the bike. The owner is responsible for required normal maintenance services, such as those listed in the "Maintenance" sections of this booklet in order to keep the bicycle in good operating condition.

Yuba Bicycles LLC does not warrant damage or injury resulting from negligence, improper operation, improper or unauthorized repair or from maintenance, environmental influences, and improper use. Yuba excludes incidental and consequential damages.

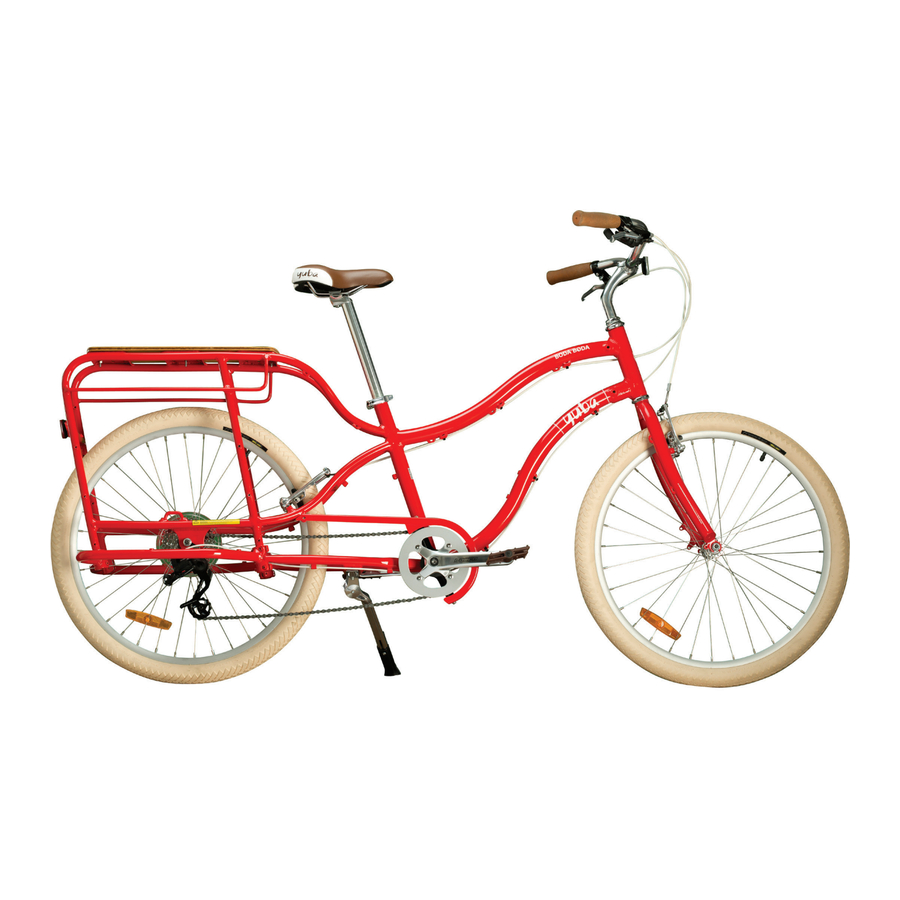

FIGURE OF THE YUBA BODA BODA AND PARTS DESCRIPTION

1. Boda Boda frame
2. bamboo platform
3. love handles
4. kickstand plate
5. shift levers
6. handlebar
7. brake lever
8. stem
9. head set
10. saddle
11. seat post
12. seat post quick release
13. reflectors (front & rear)
14. spoke reflectors (front & rear)
15. tire (front & rear)
16. bottle mounts
17. rear brake
18. front brake
19. crank arm
20. seat stay
21. cassette
22. chainstay
23. pedal
24. chain ring
25. rear derailleur
26. battery space
27. bag support bar
28. peg braze on

ASSEMBLY AND ADJUSTMENT

Although your YUBA bike is 75% assembled, there are a few steps that must be completed before it is ready to ride. It is recommended that you have your bike built and tuned by a YUBA bicycle dealer. If you have questions or concerns about any of these steps, please see a bicycle dealer or contact YUBA toll free at 877 889-YUBA.

Carefully follow the "Boda Boda V2 Assembly Instructions" attached to your bike. Once you have completed the assembly, read the remainder of this Owner's Manual.

Never attempt to ride a bicycle that is not properly assembled.

Inside your box you will find:

• 1 75% Assembled Cargo Cruiser
• 1 Saddle with seat post
• 1 Handle bar, to be installed
• 1 Rear Wheel, to be installed
• 1 Front Wheel, to be installed
• 1 Fork to be installed
• 1 Small Parts Box that includes: 2 Pedals (Right and Left), Stem, Headset, Cassette, Additional Hardware
• 1 Set of Wheelskirts

Carefully remove the bicycle and all accessories from the box to avoid scratching the frame. Check the carton for loose parts before discarding.

Assembly of the fork and headset

In order to install fork and headset, retreive them from the box. Headset bearings are located in small parts box.

1. Remove headset parts from fork and parts box.
2. Slide seal down fork steerer tube and align with crown race.
3. Slide greased bottom bearing down fork steerer tube so ball bearings align with lower head tube race.
4. Slide fork through head tube.
5. Slide greased top bearing down fork into head tube race.
6. Thread adjustable race onto steerer tube and hand tighten.
7. Slide washer down steerer tube.
8. Thread locknut onto steerer tube and hand tighten.
9. Make final tightness adjustments with wrench.

Assembly of the stem and handlebars

In order to install the stem and handlebars, retrieve the handlebars from box and the stem from the parts box.

1. Install handlebars centered in stem.
2. Install stem into fork steer tube.
3. Make final adjustments when bicycle is completely assembled.

Removal and assembly of the front wheel

1. Remove all zip ties from wheel
2. Push wheel towards front of bike until tire compresses on kickstand and fender mount (Figure 6.1)

3. Gently lower wheel so axle avoids contact with dropouts and frame
4. Continue lowering until wheel is released from bike (Figure 6.2)


Once the front wheel is removed, unscrew the large nuts. Insert the front wheel into the fork, center the wheel and then tighten the nuts using a wrench.

Assembly of the rear wheel and cassette

1. Take the cassette and install on freewheel using chain whip or cassette tool.
2. Unscrew large nuts, align derailleur/chain with smallest cog and insert wheel into rear dropouts.
3. Pull wheel to the rear of dropouts then tighten nuts using a wrench.

Check Alignment

Check that the wheels are properly attached. Bicycle wheels are attached by several systems: threaded axle nuts, a quick-release where a lever-actuated wheel retention mechanism allows the wheel to be installed and removed without tools, or a thru-axle where the axle is threaded through the ends of the frame or fork. Test for proper wheel attachment. Pick up the bike and sharply hit the top of the tire. The wheel must not come off, be loose, or move from side to side.

Assembly of the Wheelskirts

In order to install Wheelskirts, retreive them from the box. Wheelskirts can be installed on inside or outside of Boda Boda. Each Wheelskirt is designed to be installed with 4 bolts, 4 washers and 5 zipties.

1. For each side align a Wheelskirt with the 4 frame braze-ons then fasten to frame with 4 bolts and 4 washers
2. Use a zip tie to clamp the Wheelskirt to the frame in each of the three individual round holes
3. Use a single zip tie to clamp the Wheelskirt to the frame in each of the two paired round holes

A wheel attachment device that is not properly adjusted and closed may allow the wheel to be loose or come off unexpectedly, causing you to lose control and fall. Make sure the wheels are properly attached before riding the bike.

Assembly of the Love Handles

In order to install the Love Handles, retrieve them from the box. The 12 M6x20 screws are loosely installed in the Love Handles. Use an hex key for removal and tightening.

1. Distinguish left and right love handle. Bolt holes should face upward.
2. Install love handles with rounded section at rear of bike. Tighten bolts to 5 Nm of torque.

KNOW HOW THE BICYCLE PERFORMS

The features of your bicycle, if misused, may cause you to lose control of the bike. Before riding fast or in more difficult conditions, learn the function and performance of all the mechanisms of your bike by riding at slower speeds in a flat, empty parking lot.
If you want your bicycle to perform differently, or if you have special needs that require different parts for the safe operation of your bike, consult your bicycle dealer.

Mis-use of the braking system, including over-use of the front brake, can cause you to lose control and fall. Avoid improper braking by understanding and practicing proper application of your brakes as explained in this manual.

Learn the power of your brakes

The stopping power on bikes varies according to the intended use of the bike. If you would like your bike to have more, or less, stopping power, consult your dealer about brake adjustments or other brake options for your bicycle.

Avoid toe-clip overlap

When riding slowly, do not pedal if the handlebar is turned. It may be possible, at very slow speeds, when the handlebar is turned, for your foot or toe-clips to contact the front wheel or fender (Figure 1).

fig 1- toeclip overlap

At normal riding speeds, the handlebar does not turn enough for this to occur.

Contact between your foot or toe-clip and the front wheel or fender can cause you to lose control and fall. Avoid pedaling when turning at slow speed.

Stop riding if you have frame problems.

Occasionally riders experience problems with their frame or fork. If a frame or fork has any problem, do not ride the bicycle.
As an example, in very rare cases, some riders may experience a "shimmy" or "harmonic oscillation" or "frame vibration" at certain speeds. If you are experiencing a shimmy, slow down immediately. Take your bicycle directly to a dealer for inspection and repair.

ROAD SAFETY

• For your safety, always wear a helmet that meets Snell or American National Standards Institute (Ansi) Z290.4 requirements. In the event of an accident a helmet can protect you from serious injury and even death. A bicycle retailer will be happy to assist you in the selection of a helmet and other useful accessories.
• Obey all traffic laws. Obey red and green lights, one-way streets, stop signs, etc.
• Ride with the traffic, not against it. Ride single file in a straight line.
• Have a satisfactory signaling device (bell, horn, etc.), to warn of approach. Ride defensively (expect the unexpected).
• Give pedestrians the right of way. Do not ride too close to pedestrians and alert them if you intend to pass from behind.
• Slow down at all street intersections and look to the right and left before crossing.
• Always use proper hand signals for turning and stopping. Give signals 100 ft. before stopping or turning and always return both hands to the handlebars before stopping or turning.
• Watch for cars pulling out into traffic and for sudden opening of car doors.
• Avoid potholes, drainage grates or other road surface hazards. Cross railroad tracks at a right angle. Be careful when riding on soft road edges, gravel, sand and uneven surfaces. Ride slowly and avoid quick turns when riding on these surfaces.
• Never hitch on other vehicles, do not "Stunt" ride or race in traffic. Don't weave in and out of the traffic or swerve from side to side.
• Never physically carry other riders or packages, they may obstruct vision or proper control of the bicycle.
• Before riding, check your brakes. Be sure they are operating efficiently and that your bicycle is in perfect running condition.
• When riding at night, always use lights, clear light on front and flashing red light on rear, and wear light colored and/or reflective clothing. Make sure your reflectors are intact and visible. Assume motorists are unable to see you and ride in an appropriately cautious manner.
• When braking always apply stronger braking pressure to the rear wheel (right lever). If the front brake pressure (left lever) is applied too strongly or quickly, the bicycle may flip forward. Avoid strong braking while turning.

Your bicycle is equipped with reflectors, however, extreme caution is required when traveling at dusk or night. In addition to keeping your reflectors clean, and properly affixed to your bicycle, you must use headlights and taillights, in addition to wearing bright, reflective clothing when riding in poor lighting conditions. Consult your local bike shop to find accessories appropriate for your riding needs.

CAUTION IN WET WEATHER RIDING: No brakes work as well under wet conditions as they do under dry conditions. In rainy wet weather, special precautions must be taken to insure safety in stopping. Proper adjustment and cable lubrication will help, but the major precaution rests with you. Increased brake pressure is required in wet or rainy weather and care must be exercised to maintain safety under these conditions.
Ride slower than normal and apply your brakes sooner than normal conditions would require.

A crash can put extraordinary stress on bicycle components, causing them to fatigue prematurely. Components suffering from stress fatigue can fail suddenly, causing loss of control, or serious injury.

OPERATING THE BIKE

Operation of the brake system

Always keep a safe stopping distance between you and other vehicles or objects. Adjust stopping distances and braking forces to suit riding conditions.

If your bike has two hand brakes, apply both brakes at the same time. Over-use, or mis-use, of a front-wheel brake, such as using only the front-wheel brake in an emergency, could cause the rear wheel to lift from the ground, which could cause you to lose control.

Bicycles are normally manufactured with the left brake lever controlling the front-wheel brake. To change so that the right lever controls the front-wheel brake, see "GENERAL WARNING".

Many models of modern brakes are very powerful; they are designed to stop a bike in wet or muddy conditions. If you feel your brakes are too powerful for your riding needs, take your bike to your dealer for adjustment or replacement of the braking system.

Operation of the gear system

The multi-gear system provides a means of maintaining a constant pedaling rate, regardless of road level conditions. This is the most effective cycling technique to prevent tiring over long distances.

The gears are activated by cables connecting the twist shifters or shift levers located on the handlebar to the derailleurs.

If your bicycle is equipped with twist shifters, rotating the twist shifters towards you moves the chain from one chainwheel (or sprocket) to the next larger chainwheel (or sprocket). Rotating the twist shifters away from you moves the chain from one chainwheel (or sprocket) to the next smaller chainwheel (or sprocket).

If your bicycle is equipped with shift levers, pushing the thumb shift lever away from you moves the chain from one chainring (or sprocket) to the next larger chainring (or sprocket). Pulling the index finger shift lever towards you moves the chain to the next smaller chainring (or sprocket).

The left shifter controls the front derailleur and the right shifter lever controls the rear derailleur. To shift, continue pedaling at a steady pace while operating the shifters and engage the gear you find most comfortable.

For easiest pedaling (while going up-hill or slowly), position the chain over the smallest chainring in front and the largest sprocket in back. For hardest pedaling (while going down-hill, or quickly), position the chain over the largest chainring in front and the smallest sprocket in back.

Pedals and wheels must be turning forward while shifting gears. Never pedal backward while shifting gears and never force the twist shifters or shift levers.

Adjustment of the Cable Tension

If the gear system is not functioning properly, ensure that the rear derailleur follows each shifting command of the right twist shifter/shift lever. Cable stretching could affect the function after some time, so that synchronization may no longer be assured. Check and adjust as follows:

1. Shift the chain to the center of the front chainwheel by turning the crank forward and shifting the left twist shifter/shift lever.
2. Shift the chain to the outermost/smallest rear sprocket by turning the right twist shifter all the way away from you, or moving the right shift lever all the way towards you.
3. While turning the crank forward, rotate the right twist shifter or push the right shift lever to the next position.
4. The chain should move to the second rear sprocket after a maximum of one full turn of the wheel. If it stays on the first sprocket, the tension of the shifting cable must be increased (proceed to Step 6).
5. If the chain jumps across the second sprocket or if it scratches the third sprocket, the tension of the shifting cable must be decreased (proceed to Step 6).
6. Cable tension is adjusted by turning the Cable Adjusting Barrel, which is located at the junction of the cable and the rear derailleur (Fig. 16).


To increase tension turn the knurled knob counterclockwise, to decrease tension, turn the knob clockwise.
If the tension is adjusted according to the above steps, the chain should follow all shifting commands on the twist shifters.
If the gear system still does not function properly, please contact a bicycle retailer for assistance.

ADJUSTMENT OF HANDLEBAR AND SEAT

Handlebar stem adjustment

Your handlebar's primary function is to steer and control your bicycle, therefore proper installation, adjustment and maintenance are crucial for your enjoyment and safety.
To change the handlebar height, loosen the stem expander bolt two to three turns, then tap the top of the stem handlebars to the desired height, and retighten very tightly (175-260 lb.lin or 19.8-29.4Nm).

If you are unsure of the safety of your handlebar system, do not attempt to ride your bike. Never ride your bicycle with the stem raised above the minimum insertion mark as this may cause loss of control resulting in personal injury or death. A minimum of 2 3/4 inches (70mm) of the stem must always remain in the frame.

MAKE SURE THE MINIMUM INSERTION LINE IS NOT SHOWING ABOVE THE HEADSET.
Some bikes are equipped with a stem that has an adjustable rise, or angle. These bikes require that you tighten the angle adjusting bolt to 150-170lb.lin (17-20.3 Nm) after first making sure the teeth are correctly engaged with the corresponding teeth entered between the teeth of the mating part.

Note: Some bikes are equipped with handlebar stems that are not adjustable in height.

Test the security of the handlebars in the stem and the stem in the frame, by attempting to twist the handlebars in the stem and by attempting to turn them from side to side with the front wheel locked between your knees (Fig.5). Make sure there are no cables stretched or pinched by rotating the handlebars.

Figure 5. Test of handlebar

Seat adjustment

Your seat and seatpost are the primary means of support for the rider.
Proper adjustment is important for your comfort and pedaling efficiency. Ensure your seat and seatpost are securely tightened in a comfortable position for your riding style.
Ensure that the seat is secure by attempting to turn the seat and seatpost in the frame. Grabbing the saddle, attempt to move the front of the saddle up and down and side to side. If it rotates, is loose, or moves up and down, tighten the quick release and repeat the test until there is no movement.

When adjusting the seatpost ensure the minimum insertion mark remains inside the frame. A minimum of 2 1/2 inches (64mm) of seatpost must remain in the frame. Riding with the seat raised above this height may cause loss of control resulting in personal injury or damage to your bike.

SCHEDULED MAINTENANCE

We recommend that you take your bicycle in to an authorized bicycle dealer before riding it and then once a year for maintenance so that you can enjoy your YUBA Bike for as long as possible. Maintenance of your bicycle should include the following:

Maintenance service by a dealer

1. Crank set: check play, adjust and re-tighten if necessary.
2. Head set assembly: check play, adjust and tighten if necessary.
3. Brake system: replace brake cables, check brake pads and replace if necessary, adjust lever play.
4. Gear system: grease shifting cables, check and adjust setting and indexing function.
5. Wheels: check alignment, realign if necessary. Check and adjust air pressure.
6. Chain: check, replace if necessary.
7. Tighten mounting bolts on handlebar, saddle, brakes and hubs.
8. Boom Tube quick release box: keep free of debris.
9. Quick releases: check function.

Regular performance of these maintenance services will afford carefree enjoyment of your YUBA bike.

Regular care preserves the value and safety of your bicycle. You can carry out the following care and inspection procedures yourself or bring the bicycle to a dealer for maintenance. We recommend that you do take your bicycle in to a dealer once a year for maintenance so you can enjoy your Yuba for as long as possible.

Tools needed for maintenance of your Yuba bike:

• Small adjustable wrench
• Large adjustable wrench
• Set of 4, 5, 6 mm Allen keys
• Medium Phillips screwdriver
• Slip-joint pliers
• Flat thin open end wrench 15mm
• Air pump
• Tire levers

GENERAL INSPECTION: Every week or two tighten all nuts and bolts. Check all hardware to see that no parts are worn or damaged, that there is correct fork and frame alignment, and that all components are seated in proper position.

CLEANING: Clean the frame and all parts regularly with a moist cloth or sponge. Bicycle shops offer special cleaning agents for easy care.

REFLECTORS: Reflectors should be kept clean, securely fastened and positioned for bicycle identification at night from front, rear and lateral visibility. Damaged units should be promptly replaced.

CONTROL CABLES: Replace worn or damaged cables. Do not kink cables. Cables stretch with use; adjust accordingly. Keep control cable lubricated.

HANDLEBAR/STEERING: On some models, the handlebar stem may be adjusted for your comfort. The bearing of the fork in the frame (headset) should rotate easily without play. Adjustment of the headset requires special tools and should be performed by a bicycle mechanic.

GRIPS: Replace worn grips. Make sure they fit snugly.

BRAKES: The brake levers should be easy to operate without too much play. Too much play will cause insufficient braking power. The play is properly adjusted if the brake pads meet the rim fully when the brake lever is pulled one third of the way.
Adjust the brake play by turning the adjusting nuts located at the junction of the brake cable and brake lever. When you have determined the proper setting, turn the knurled knob at the shaft of the adjusting bolt all the way down to the brake lever to lock the brake setting in place.

• The right brake lever controls the rear brake.
  • To tighten brakes, turn the adjusting nut clockwise.
  • To loosen brakes, turn the adjusting nut counterclockwise.
• The left brake lever controls the front brake.
  • To tighten brakes, turn the adjusting nut counterclockwise.
  • To loosen, turn the adjusting nut clockwise.

Note: Left and right controls are reversed on bicycles sold in some countries.

Check brake pads regularly for wear and make sure they are properly toed in. Viewed from the side, the brake pads should be exactly at the height of the rim and slightly toed in the direction of the rotation of the wheel. The brake pads must display tread. When the tread is worn down, the brake pads must be replaced.

For safety reasons, the brake cables must be replaced every 12 months. This should be included in the annual maintenance service by a certified bicycle repair and maintenance shop.

ALIGNMENT: If the bicycle does not align properly, immediately bring to a bicycle mechanic or call Yuba's Customer Support toll free at 877 889-YUBA.

WHEELS: Make sure the axle nuts on the front wheel and rear wheel are properly closed. Wheels should be centered in fork or dropouts. Irregular noise from the wheels or the brakes touching the rim indicates that the wheel requires maintenance. Wheels should be checked regularly for spoke tightness and true alignment.

WHEEL ALIGNMENT: Wheels should rotate smoothly without wobbling from side to side. Check the bearing play of the hubs by lifting the bicycle and spinning the wheel. The wheel should continue to spin for several rotations and finally cease spinning. To check the play of the hubs: try to move the rim from side to side between the fork. During this test, no substantial play should exist. If you detect play or if the wheel is difficult to turn, the hub bearings must be adjusted. Please contact a bicycle mechanic to have the hub bearings adjusted.

RIMS: The rims must be smooth and without cracks, breaks, or bulges. Check that they are smooth on the inside to prevent puncturing the inner tube.

SPOKES: Check spoke tension regularly. Approximately the same tension should be applied to all spokes. If there is minor loosening of the spokes, you may tighten the nipples, but it is recommended that you take the bicycle to a bicycle mechanic. If you detect a loose spoke or if the rim has a side play of more than 4mm, immediately have the wheel trued by a technician. Riding with loose spokes may cause the wheel to fail, resulting in serious injury or death.

TIRES: Maintaining proper inflation levels of your tires ensures a smooth, efficient and safe ride. Make sure that the tires are inflated according to pressure indicated on tire sidewall. Improper tire pressure will cause excessive wear, causing premature replacement. A foot or frame pump should be used. Pressurized, unregulated pumps should not be used.
The tire should be properly seated in the rim and the fitting of the tire bead and rim bead should be checked. If the tube is pinched between the tire and the rim, it will explode when inflated. Ensure that the tire is not cracked or unevenly worn. Check for bulges. Check that the valve is straight in the rim. Irregular tires should be replaced immediately.

CHAIN: Check frequently for damage and stretch and replace if necessary. Lubricate several times each season and after each washing or ride in the rain. Use a lightweight, all-purpose oil, being careful to oil each link. Chain specific oil is available from any bicycle shop. The chain must be replaced after a maximum of 1250 miles. This requires special tools and should be performed by a certified bicycle mechanic.

CHAINRINGS: Replace if chainring teeth are bent or damaged. Keep chainrings tight on crank.

CRANKS& PEDALS: Crank assembly should turn freely without side play. Check the bearing play of the cranks by grasping the end of the crank near the pedal thread and trying to wiggle it laterally. If you detect play, have it corrected by a dealer.

Keep locknut tight and keep bearings clean and well adjusted. Check crank bolt or nut (depending on axle type) regularly to make sure crank arms stay tight.

Replace bent cranks immediately! Do not attempt to straighten.

Replace pedals if bearings are tight or frozen and if thread is lost or badly worn. Keep pedal bearings lubricated.

REFLECTORS: Your reflectors are an important safety feature of your bike, do not remove them. Every three months, check the nuts and bolts holding the front, rear, pedal and wheel reflectors and make sure that they are tight. Also check the alignment of the front and rear reflectors; their reflective surfaces should be perpendicular to the ground. The rear reflector should be at least three inches below the top of the seat. KEEP REFLECTORS CLEAN AT ALL TIMES.

FRONT DERAILLEUR ADJUSTMENT: The derailing cage must be positioned high enough to clear the chain wheels while shifting. If an adjustment is necessary, loosen the frame clamp and reposition accordingly. When re-tightening the frame clamp bolt, make sure the curvature of the derailing cage is concentric to the curvature of the chainwheel and that the derailing cage is in line with the chainwheel.

The front derailleur should shift smoothly and easily between the chainwheels. If the front derailleur does not shift correctly, it can be adjusted as follows:

1. Place left lever all the way forward, or twist shift all the way back, and adjust screw "H" to center derailing cage and chain over the large chainwheel.
2. Move left shift lever all the way back or twist shift all the way forward and adjust limiting screw "L" so the derailing cage and chain are centered over the smaller chainwheel.
3. Loosen the cable anchor nut and pull all slack out of the cable through the anchor bolt. Re-tighten the cable anchor bolt securely.

These adjustments will limit the inward and outward movement of the derailing cage so the chain will not derail to the left of the inside chainwheel or to the right of the outside chainwheel.

REAR DERAILLEUR ADJUSTMENT:

1. With the right shift lever all the way back or the twist shift all the way forward, the rear derailleur should position the chain on the smallest rear sprocket with no trace of slack in the control cable.
2. If the chain does not reach the smallest sprocket adjust limiting screw "H" (moving it out, away from the derailleur housing) allowing the necessary additional outward travel of the derailleur.

3. Once adjusted, limiting screw "H" should be moved to bottom against the derailleur housing, stopping any additional outward travel of the derailleur and preventing the chain from running off the smallest sprocket.
4. If there is slack in the cable turn the barrel adjustment counterclockwise to remove slack. If the slack is not taken up, or if the derailleur does not have a barrel adjuster, a cable adjustment is necessary. Loosen the cable-fixing bolt freeing the cable. Pull the cable tight and retighten bolt securely.
5. With the right shift lever all the way forward, or the twist shift all the way back, the derailleur should position the chain on the largest rear sprocket.
6. If the chain does not reach the largest sprocket Adjust limiting screw "L" to allow for this and position it to bottom against the derailleur housing to prevent any additional inward travel of the rear derailleur. This will stop the chain from running off the inside of the large rear sprocket.


CARRYING LOADS WITH YOUR CARGO CRUISER BICYCLE

Getting to know your Cargo Cruiser Bicycle

Carrying a load and riding a medium-wheelbase bike both require getting accustomed to. Practice maneuvering and braking on a flat, hazard- and traffic-free street with and without a load before going out into the world. Carrying a seated passenger or heavy load involves risks, foremost of which can be decreased braking power and increased stopping distance. Always make sure you have at least two well-adjusted brakes. Drum, roller, or coaster brakes are not suited to hilly riding or heavy loads and can fail under serious strain—when you need them most! We strongly recommend rim and/or disc brakes, though these carry their own risks: under severe loads (as when carrying a passenger or cargo at high speed a very strong front brake can lead to failure of the front fork. For this reason, don't use the front brake by itself; the rear or rear and front brake should be used in all braking situations.

Seating on the carrier seat

Standing, kneeling, or sitting backwards or sideways (both legs on the same side of the bike) on the carrier seat while the bike is moving or stopped can easily result in broken limbs, loss of control of the bike, destroyed rims, a destroyed bike frame, or worse.

Children

The user of this product acknowledges both an understanding and an assumption of the risks involved in cycling, cyclin g with cargo, and cycling with a passenger. Children incapable of riding a bike on their own or under the age of four should not ride on the Boda Boda as passengers, unless it's equipped with an approved Child Seat accessory. Children should not ride as passengers without an adult operating the Boda Boda Bicycle. When carrying children older than four years old, a passenger handlebar, and feet support must be installed on the bike.

Use good judgment

No warning is a substitute for good judgment. Use yours always. If you have reason to suspect that your own judgment isn't great, share your plans with somebody you respect, and ask for a second opinion.

Always make sure you have at least two well-adjusted brakes. Under severe loads (as when carrying a passenger or cargo) at high speed a very strong front brake can lead to failure of the front fork.

Pre-ride checklist

• Ensure straps cannot get caught in the wheels.
• Ensure bags, boxes or any other item are in a position where they cannot be caught in the spoke.
• Double-check your load for security and stability.
• Check that your brakes are well adjusted
• Check to see that your wheels are securely fastened
• That your helmet (and head) is securely fastened
• That no components or frame members are cracked or broken (in general, if at any time you notice a crack or bend in your bike, stem, forks, or bars of your bicycle, stop riding immediately; take your rig to your local bike shop and have them inspect it)
• That your bike is equipped with the proper passengers accessories (childseat, foot pegs, handle bar, wheelskirts).

Always make sure you have at least two well-adjusted brakes. Under severe loads (as when carrying a passenger or cargo) at high speed a very strong front brake can lead to failure of the front fork.

Kickstand

A bicycle kickstand is provided with the Boda Boda Bicycle. It is important to understand that kickstands are not designed for heavy loading or passenger loading. The user should always hold on to the bike when loading it. Or the user can have the bike leaned against a wall, a pole to prevent the falling over of the bicycle.

The kickstand gives the bike only limited stability. Be especially careful with precious cargo and children.
DO NOT ASSUME THAT THE BIKE IS BALANCED WHEN USING A KICKSTAND!
ALWAYS HOLD ON TO THE BIKE WHEN LOADING CHILDREN!

Maximum payloads

For the carrier: 100kg/ 220lbs
Behind axle: 20kg/ 44lbs
Love Handles: 20kg/ 44lbs (each side)
Kickstand: 50kg/ 110lbs

Main Carrier or loading platform #1

The carrier is the space to be used for the transport of boxes, baskets, and cartons... It is essential to position the load properly, and to securely attach it to the carrier using a rope, cam straps or some type of bungee cord.

Love Handles or lateral loading platforms #2

The two horizontal racks are the platform for carrying wide or big boxes, they are essentials to carry long objects: ladder, kayaks, or lumber. They can also be used for passenger's feet support.

Carrying long loads (ladder, surfboard, solar panels...)

Long loads up to 5m (or 15 ft) can be carried on the lovehandles platform(s) of the Boda Boda Cruiser bike.
In some cases a block (foam for example) might be needed to keep the load(s) away from the pedal(s). Carrying long loads on the non-kickstand side of the bike helps keep the load(s) away from moving traffic and facilitate mounting on the bicycle.

Carrying passenger and children

Carrying passengers by bicycle is subject to limitations and regulations in most countries. Check local traffic and regulations to learn more and comply with the law.
Carrying children on a bicycle should only be done when using approved and certified child seat and equipment. Please call us or visit the nearest bicycle dealer for more information.

Children are your most precious cargo, always be extra careful when operating the bike with 1 or more kids on the back of the bicycle.
Keep feet and hands away from moving wheels
NEVER LEAVE THE BIKE UNATTENDED WITH CHILDREN ON THE BICYCLE!

To reduce risk of injury, use Wheelskirts when carrying children and passengers

We recommend that you always use Wheelskirts when carrying children.
For more tips and pictures on how to carry loads by bicycle, visit yubabikes.com

ADD-ONS FOR YOUR YUBA

Optional Add-ons:

• Baguette bag, large weatherproof pannier
• Bamboo Running Boards
• Boda Double kickstand, two leg kickstand for easy loading
• Boda Foot Peg
• Bread Basket front rack
• Cargo Straps
• Ring, handle for passengers
• Rumble Strap
• Soft spot seat
• Straps, 3 meters straps
• Yepp Maxi/Yepp Adapter

More Yuba accessories are also available, and since your Yuba uses standard parts and components, you can customize your bike in numerous ways. Check out your local bike dealer's selection of parts and accessories.

Documents / Resources

References

• Yuba Cargo Bikes - Register Your Yuba Bike
• YUBA - Cargo Bicycles for families and businesses - Yuba Cargo Bikes

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Yuba BODA BODA Manual
