Summary of Contents for homenoise more or less

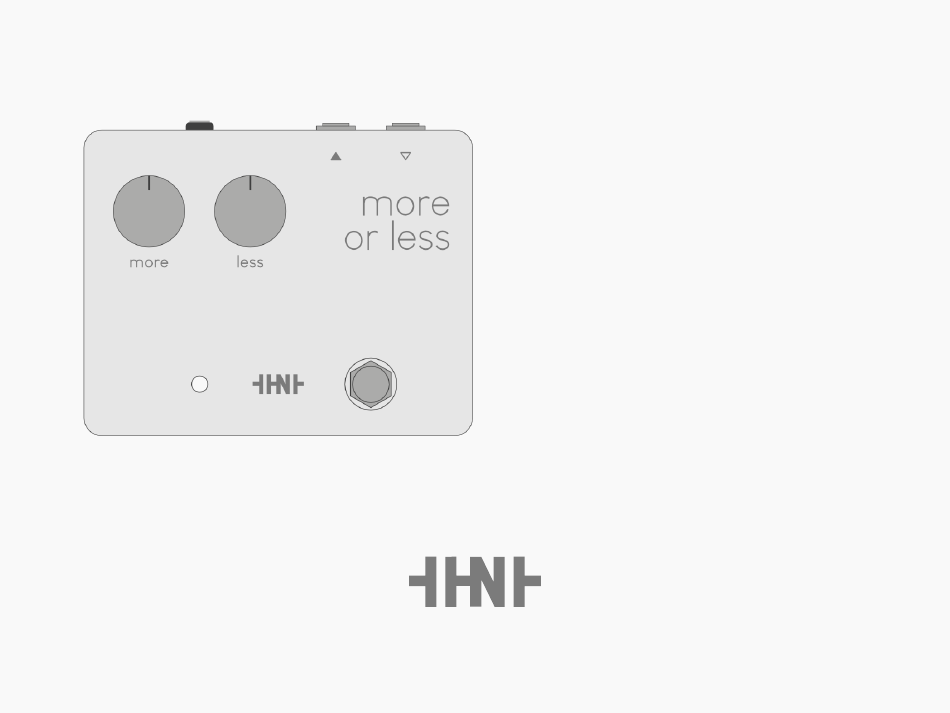

- Page 1 – product rev a © homenoise...
-
Page 2: Table Of Contents
specifications... -
Page 3: More Or Less
range. -
Page 4: Layout
layout power input audio output more or less audio input more less control dials indicator light footswitch... -
Page 5: Operational Modes
operational modes mode switch This switch can be used to select either mode A mode B which alters the way you can use the more dial. Here’s is how you do it: · Unplug power and audio from the pedal. ·... - Page 6 operational modes mode A mode B toneshaping mode boost mode more: -22dB to +22dB low frequencies more: 0dB (unity) to +22dB full range less: -22dB to +22dB high frequencies less: -22dB to +22dB high frequencies mode A mode B starting point starting point...
-
Page 7: Example Settings
example settings mode A shelving tilt filter equaliser high range mid scoop boost boost... - Page 8 example settings mode B full range high pass boost filter low & mid treble range boost boost...
-
Page 9: Technical Specifications
technical specifications buffered relay bypass switching mono audio input & output input impedance: 1 MΩ output impedance: 100 Ω frequency range: 20Hz to 30kHz power input: 9 to 18V DC current draw: ~ 40mA dimensions: 119mm x 100mm x 53mm (4,7” x 3,9” x 2,1”) - Page 10 The information in this document is subject to change without notice. Homenoise disclaims liability for any injury, damage, direct or indirect loss, consequential or economic loss, or any other loss occasioned by the use of, inability to use, or reliance on the information contained in this document.
