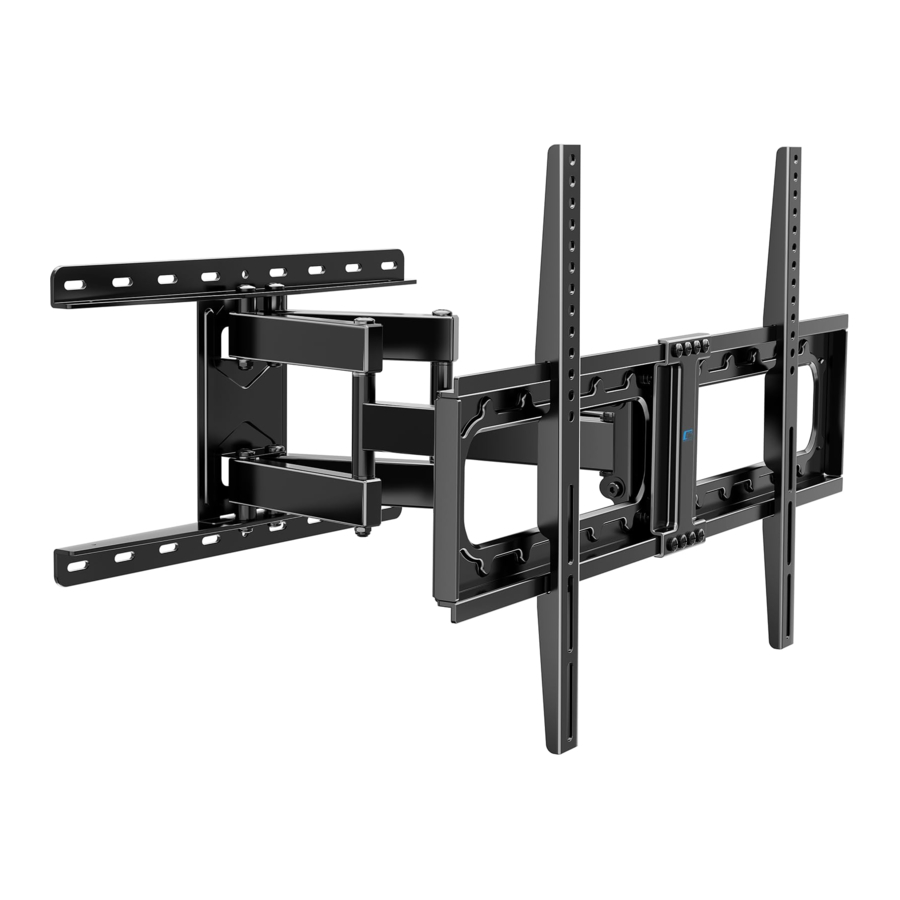

HOME VISION HV6601 Manual

Before Installation

Package Included

Remind: This product contains small accessories, may cause choking hazard if swallowed. Before assembling, please confirm whether all accessories are packaged completely. If you find any damaged parts, please contact our customer service instead of returning them to Amazon.

lnstallation Begin

1. Select TV screws


2. Install the TV panel
   1. Choose the screws
      Choose suitable screws and washers

      OR
      Choose suitable screws, washers and spacer rings

   2. Install the bracket


3. Install the wall panel

   1. Wood studs


   2. Concrete/brick wall

4. Hang the TV
   1. The stability test

   2. Hang the TV

5. Adjustment
   1. Tilt (+5°/-15°)
      Adjust the TV at your preferred angle and tighten the tilt bolts.

   2. Level(+3°)
      Unscrew the four leveling bolts on the back of the TV board and tighten them again after leveling.
