OVERVIEW

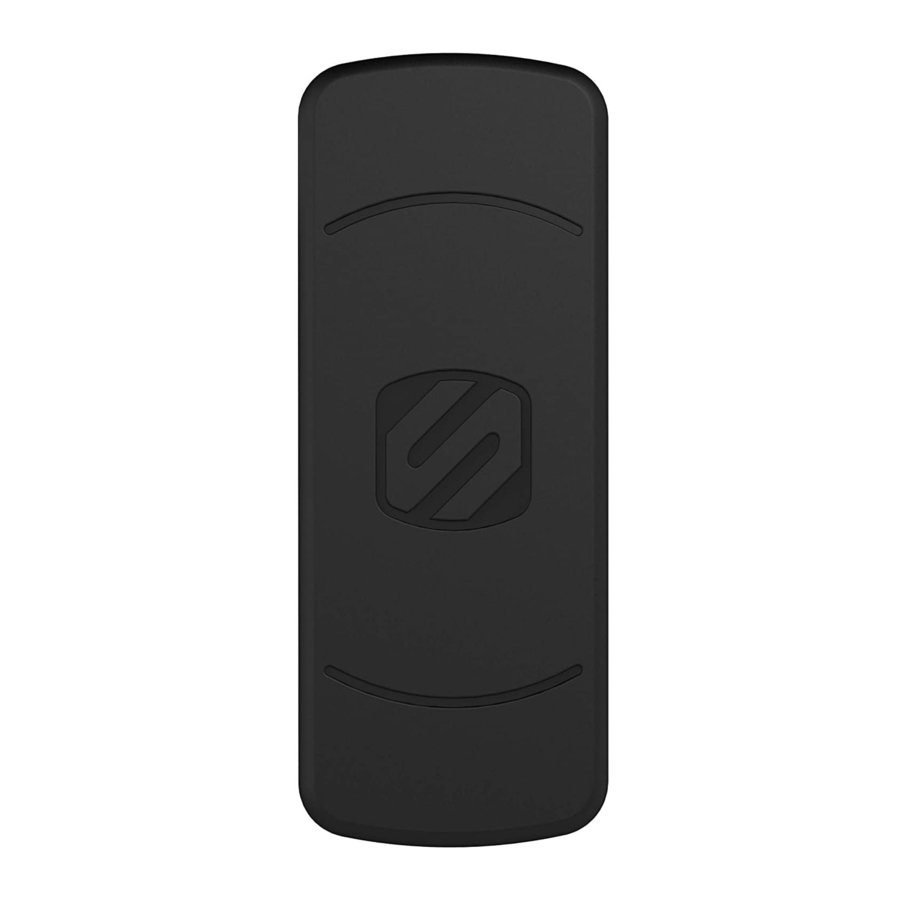

MAGICPLATET" LARGE PLATE
(for mounting to device)
1. TEMPLATE GUIDE
MAGICPLATETMSMALL METAL PLATES (2) (for mounting to case)
1. TEMPLATE GUIDE
MAGICPLATETM SMALL METAL PLATES (2) (for mounting to Galaxy S9/S9+)
1. TEMPLATE GUIDE
2. PROTECTIVE FILM (for bottom plate only)

MOUNTING OPTIONS

NOTE: For mounting directly to device, use the large single plate with template guide as shown.

Remove paper backing from the plate.
Line up the corresponding arrows on the template guide to the bottom of your phone.
When positioned, press plate firmly to affix, and remove template guide.

NOTE: For mounting to case, use the (2) small plates with the integrated template guide as shown.

Remove the white paper backing from both plates.
Line up the corresponding arrows on the template guide to the bottom Of your phone.
When positioned, press plates firmly to affix.
Remove template guide.

NOTE: For mounting directly* to Galaxy S9/S9+, use the (2) small plates with the integrated template guide for Galaxy as shown. *For mounting directly to device only. Do not mount to case.

Remove the white paper backing from both plates.

Line up "U" channel to the fingerprint reader and camera on the phone.

Remove the backing from the protective film as shown on the removal tabs (A), and place between the device and the lower plate (B). The protective film must be used when applying MAGICPLATETM directly to the back of device.

When positioned, press plates firmly to affix.

Remove template guide.

REMOVING THE METAL PLATES

Use a thin plastic card to carefully lift the plate's adhesive surface from the mounting surface. Slowly lift up and remove the plate. Do not use any heat or liquids to remove the plate, due to risk of damaging your phone. Contact Scosche Customer Service for any additional assistance at 800.363.4490 Ext. 1 or customerservice@scosche.com.
