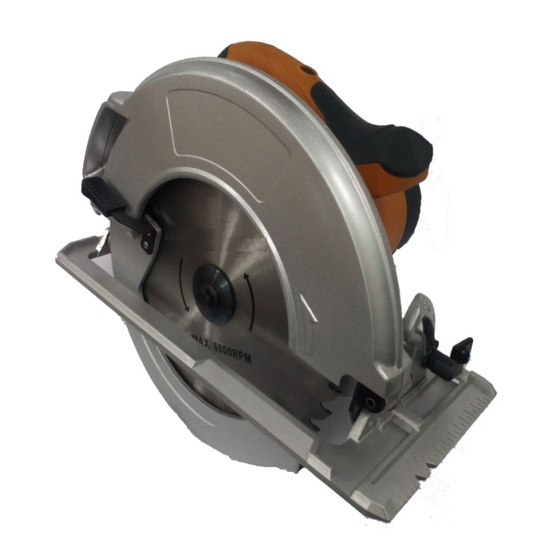

- Page 1 [EN] Circular saw M1Y-ZP2-235B1 ADEO Services 135 Rue Sadi Carnot - CS 00001, 59790 RONCHIN – France Made in China 2022 Original instructions...
-
Page 2: Warning Symbols
Warning symbols WARNING - To reduce the risk of injury, user must read instruction manual. Wear ear protection Wear eye protection Wear dust mask Class II tool Denotes risk of personal injury,loss of life or damage to the tool in case of non-observance of the instructions in this manual. - Page 3 b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
-
Page 4: Additional Safety Rules For Circular Saw
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. - Page 5 jammed -kickback is a sudden reaction to a pinched, or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator; jammed -when the blade is pinched or tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;...
-
Page 6: Technical Characteristics
d) Always observe that the lower guard is covering the blade before placing the saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released. Saw Blade safety warning a) Only use saw blades recommended and only use saw blades if you have knowledge of how to use and handle them... -
Page 7: Parts Identification
- that the declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another; - that the declared vibration total value may also be used in a preliminary assessment of exposure. -
Page 8: Cutting Depth Adjustment
Lock-off button Motor housing Main handle Front handle Bevel adjustment lever Bevel scale Parallel fence locking knob Parallel fence 10. Blade guard lever 11. Lower blade guard 12. Base plate 13. Upper blade guard 14. Dust outlet 15. Depth locking lever 16. -
Page 9: Changing The Blade
· Loosen the cutting depth lever. · Hold the base plate flat against the edge of the work piece and lift the body of tool until the blade is at right depth · Tighten the depth locking lever. PARALLEL CUT ·... -
Page 10: Mounting The Saw Blade
MOUNTING THE SAW BLADE 1) Before you mounting the Circular Saw, ensure the Circular Saw is turned off and unplugged from the power outlet. 2) Wear protective gloves when installing a saw blade. Contact with the saw blade can lead to injuries. -
Page 11: Maintenance / Cleaning
Removal of the saw blade 1. Before you removing the Circular Saw, ensure the Circular Saw is turned off and unplugged from the power outlet. 2. Wear protective gloves when installing a saw blade. Contact with the saw blade can lead to injuries. - Page 12 CAUTION: Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is recommended. Water must never come into contact with the tool. 14. In particular clean the air vents after every use with a cloth and brush. Remove stubborn dirt with high pressure air.
-
Page 13: Ce Declaration Of Conformity
EN IEC 63000:2018 Signed in Shanghai 08/12/2021 Richie PERMAL Supplier Quality Leader Authorized representative of Julien Ledin, ADEO Quality Leader ADEO Services 135 Rue Sadi Carnot - CS 00001 59790 RONCHIN – France Last two number of the year CE marking applied:21...
