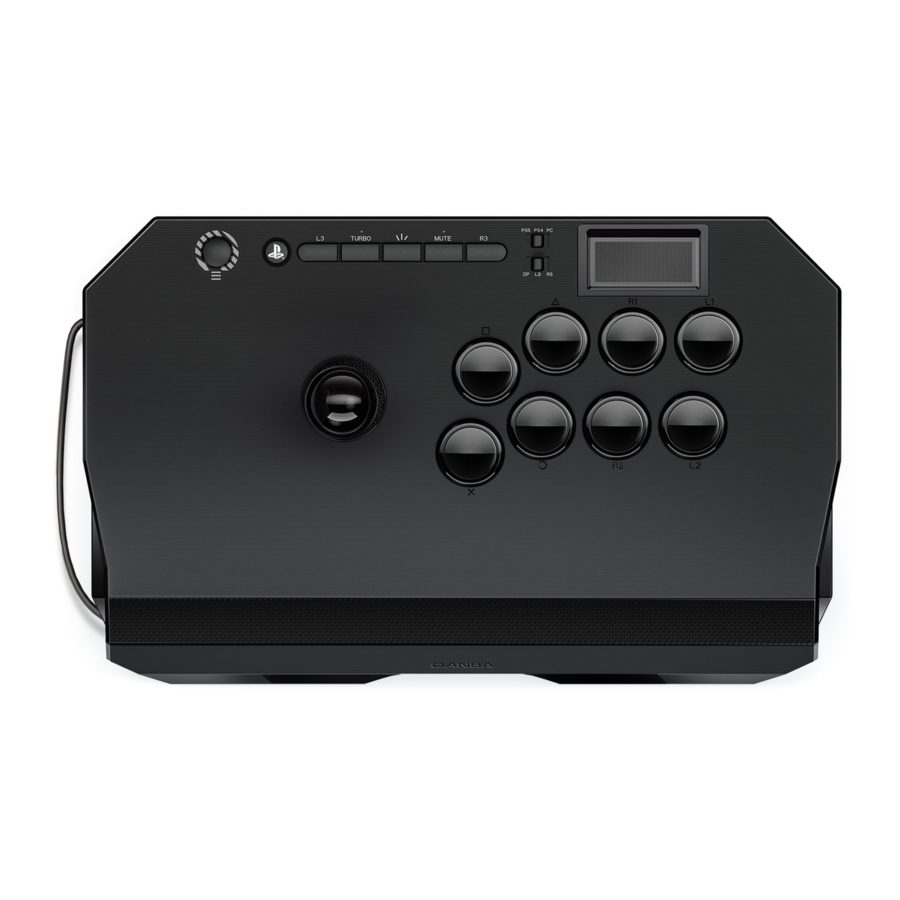

qanba DRONE 2 (N3) Manual

Features

1. USB cord and compartment
2. Qanba lever
3. Qanba 30mm buttons
4. Touch pad
5. Mini buttons
6. 3.5mm headphone jack
7. OPTIONS button
8. PS button
9. L3 button

10. TURBO button
11. CREATE button
    (SHARE button for PlayStation@4 console)
12. MUTE button
13. R3 button
14. MODE switch
15. COMPATIBILITY switch
16. Qanba lever access hole

Operating Instructions

• Turn on your PlayStation® console.
• Use the COMPATIBILITY switch (15) to select the appropriate "PS5 setting" or "PS4 setting"
• Plug your joystick into your PlayStation® console.
• Press the PS button (8) to initialize the joystick.
• Press and hold the PS button (8) if you would like to change the player assignment.


MODE Switch

• The Qanba lever (2) can be toggled between three unique control modes:
  • Directional Pad (DP)
  • Left Analog Stick (LS)
  • Right Analog Stick (RS)
• Slide the MODE switch (14) to toggle between the three unique control modes.


MUTE Button

• When the 3.5mm headphone jack (6) is not used, the MUTE button (12) has no function.
• When headphones are connected to the 3.5mm headphone jack (6), the headphone's microphone can be toggled between two unique control modes:
  • Microphone active (default setting) - MUTE button LED off
  • Microphone off - MUTE button LED on
• Press the MUTE button (12) to cycle between the two unique control modes.


TURBO Button

• Each of the eight Qanba 30mm buttons (3) can be toggled between three unique turbo modes:
  • Turbo Off (default) - LED off
  • Push for Turbo - LED flashing red when button pressed
  • Auto Turbo - LED always flashing
• Press the TURBO button (I O) and the unique Qanba 30mm button (3) at the same time then release to cycle between the three unique turbo modes.


Qanba Lever Access Hole

• Provides access to the Qanba lever screw connected to the ball top.
• Turn the Qanba lever access hole (16) cover counterclockwise and remove to gain access.
• Replace the Qanba lever access hole (16) cover and turn clockwise to close the access hole.

Specifications

Warnings and Safety

• Carefully read the instruction manual.
• Do not clean joystick with alcohol or fluids. Use a dry cloth.
• Do not disassemble joystick.
• Unplug the joystick and wrap the USB cord when not in use to prevent tripping hazards.
• Keep joystick in a cool dry place away from liquids, smoke, and chemicals.

• Do not keep joystick in hot climates such as the trunk of your car in summer heat for prolonged periods of time.
• Do not stack other items on top of joystick.
• Retain the instruction manual for future reference.
• Commercial use of this product is prohibited.
• Joystick design and specifications are subject to change without notice.
• Product is not suitable for children under 12 years of age.
• Qanba USA, LLC will repair or replace product at its discretion 12 months from purchase date.
• Telephone Support USA: (888) 525-8783

www.qanbausa.com
