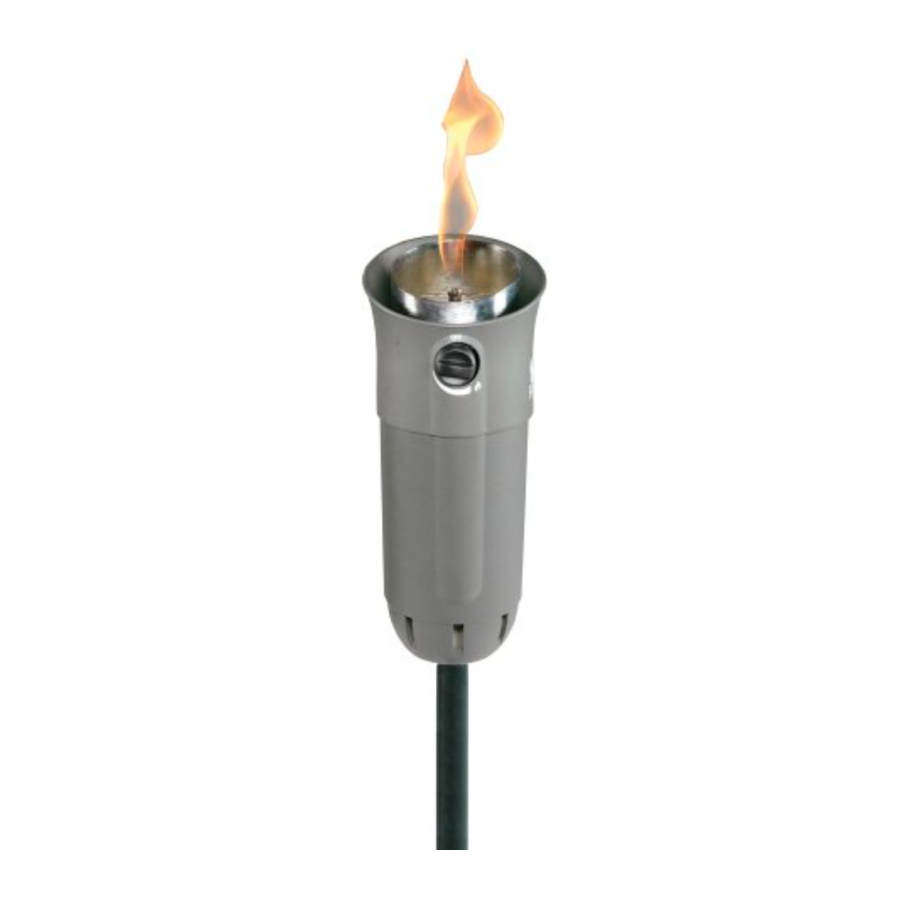

Coleman Match-Light Series, 3150-A22 Manual

Unpack the Unit

CONSUMER NOTICE: These assembly instructions are designed for more than one torch model. Features shown MAY NOT be in your torch and will not be provided by this company or at the place you purchased your torch.

  • Remove torch and components from package.
  • See carton for parts included with your unit.

3150 Series Post Models

To Set Up



CARBON MONOXIDE HAZARD

  • For outdoor use only.
  • Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This torch consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.
  • Note: Use Coleman 16.4 oz. disposable propane cylinders. The LP-gas cylinder(s) used with torches must be constructed and marked in accordance with the specifications for LP-gas cylinders of the U.S. Department of Transportation or Transport Canada, CAN/CSA B339.
  • Take torch outdoors away from ignition sources.
  • Turn fuel valve off. (Fig. 1)
  • Remove protective cap from top of propane cylinder. Save cap for use in storing. (Fig. 2)


SERVICE SAFETY

  • Keep all connections and fittings clean. Inspect propane cylinder and torch propane connections for damage before attaching.
  • During set up, check all connections and fittings for leaks using soapy water. Bubbles indicate a leak. Never use a flame.
  • Screw propane cylinder into torch. Take care not to cross-thread. Hand tighten only. (Fig. 3)
  • Set torch into bottom housing. (Fig. 4)
  • Remove seal from Citronella ring. (Fig. 5)
  • Place Citronella ring inside torch. (Fig. 6)

  • The propane torch must be set up in a vertical position to function properly.
  • Do not place anything inside the torch other than a Citronella ring provided by Coleman.
  • The Citronella ring will liquify and slowly evaporate during operation. Allow the torch to cool and the Citronella ring to solidify before moving or storing the torch.
  • Do not attempt to refill the Citronella ring.
  • Assemble pole assembly by interlocking shock-corded poles. This will make one long pole.
  • Thread pole assembly into bottom collar. (Fig. 7)
  • Mount stake securely into ground.
  • Place pole assembly into stake. (Fig. 8)
  • For models with a globe, place globe in the center of holding clips. (Fig. 9)

  • The post assembly must be set up in a vertical position for the propane torch to function properly.

To Light


If you smell gas:

  1. Do not attempt to light appliance.
  2. Extinguish any open flame.
  3. Disconnect from fuel supply.
  4. Call 1-800-835-3278.



EXPLOSION - FIRE HAZARD

  • Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
  • Always attach or detach propane source outdoors; never while torch is lighted, near flame, pilot lights, other ignition sources or while torch is hot to touch.
  • Always light & use torch outdoors.
  • This torch must not be exposed to flammable vapors or liquids during lighting.
  • This torch is very hot during use and can ignite flammables too close to the torch. Keep flammables at least 72 inches from the sides and 72 inches from the top of the torch. Keep gasoline and other flammable liquids and vapors well away from torch.

To Light Torch

  • For models with a plastic cap, remove plastic cap from torch. (Fig. 10)
  • For models with a soft bag, remove soft bag from torch. (Fig. 11)
  • Place lighted match near burner and open fuel valve fully. (Fig. 12)



BURN HAZARD

  • Never leave torch unattended when hot or in use.
  • Keep out of reach of children.
  • Proper torch operation produces a yellow flame approximately 6 - 8 inches tall. Flame height is not adjustable. (Fig. 13)

To Turn Off



EXPLOSION - FIRE HAZARD

  • Do not use the cap or any other object to snuff out the flame.
  • Allow the flame to self-extinguish by turning off the fuel valve.
  • Turn fuel valve off. (Fig. 14)

To Store



EXPLOSION - FIRE HAZARD

  • Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
  • The cylinder must be disconnected when the torch is in storage.
  • Make sure torch is cool.
  • Move torch away from flame (including pilot lights) and other ignition sources.
  • Remove propane cylinder from torch. (Fig. 15)
  • Replace protective cap on propane cylinder. (Fig. 16)
  • The torch can be placed in an accessory case for secure storage. (Fig. 17)

Things You Should Know

  1. It is unsafe and illegal in some places to store or use liquid propane cylinders of greater than 1.14 kg (2.5 lbs.) water capacity (approximately 465g [1 lb.] propane) in occupied enclosures.
  2. After each use, wipe debris and foreign objects from the inside and outside of the torch with a soft cloth and mild dish detergent. Do not use abrasives.
  3. The usual storage areas for camping and picnic equipment are the basement, attic, or garage. To avoid the accumulation of dust, cobwebs, etc., that is common in these storage areas, place your torch in a plastic bag and seal it with a rubber band.
  4. For repair service call one of the numbers listed on the front cover for location of your nearest Coleman Service Center. If torch must be mailed to Service Center, attach to the product a tag that includes your name, address, daytime telephone number and a description of problem. Remove globe to prevent breakage. Do NOT send propane cylinder. Carefully package the product and send either by courier or insured mail with shipping and insurance prepaid to:
    For products purchased in the United States:
    The Coleman Company, Inc. 3600 N. Hydraulic • Wichita, KS 67219 U.S.A. 1-800-835-3278 • TDD: 316-832-8707
    For products purchased in Canada: Sunbeam Corporation (Canada) Limited 5975 Falbourne Street • Mississauga, Ontario Canada • L5R 3V8 • 1 800 387-6161
  5. If not completely satisfied with the performance of this product, please call one of the numbers listed on the cover of this manual. www.coleman.com

Replacement Parts List (Post Model)

Item Part No. Description
1 3150-1621 Soft Case
2 3150-1611 Cap (Black)
3 3150-5651 Pole Assembly
4 3022A0481 Globe
5 R3150-400 Citronella Ring (2 pk.)
6 3150-5401 ML Torch Assembly (Black)
7 3150-5631 Stake Assembly
8 3150-1821 Bottom Housing (Black)

www.coleman.com

Safety information

FOR YOUR SAFETY
If you smell gas:

  1. Do not attempt to light appliance.
  2. Extinguish any open flame.
  3. Disconnect from fuel supply.

FOR YOUR SAFETY
Do not store or use gasoline or other liquids with flammable vapors in the vicinity of this or any other appliance.


CARBON MONOXIDE HAZARD

  • This appliance can produce carbon monoxide which has no odor.
  • Using it in an enclosed space can kill you.
  • Never use this appliance in an enclosed space such as a camper, tent, car or home.

This manual contains important information about the assembly, operation and maintenance of propane torches. General safety information is presented on this page and is also located throughout these instructions. Particular attention should be paid to information accompanied by the safety alert symbol " ", " ", " ".
Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product.
Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage.
The following symbols shown below are used extensively throughout these instructions. Always heed these precautions, as they are essential when using any mechanical or propane fueled equipment.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.

Failure to comply with the precautions and instructions provided with this torch can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon monoxide poisoning.
Only persons who can understand and follow the instructions should use or service this torch.
If you need assistance or information such as an instruction manual or labels, contact The Coleman Company, Inc.

CALIFORNIA PROPOSITION 65:

This fuel, and byproducts of combustion of this fuel, contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.

  • This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally added to help detect leaks and can be described as a "rotten egg" smell. The odorant can fade over time so leaking gas is not always detectable by smell alone.
  • Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by ignition sources including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only propane gas set up for vapor withdrawal.
  • Propane gas should be stored or used in compliance with local ordinances and codes or with ANSI/NFPA 58. Turn off propane when not in use.



EXPLOSION - FIRE HAZARD

  • Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
  • Propane is heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
  • Never install or remove propane tank while torch is lighted, near flame, pilot lights, other ignition sources or while torch is hot to touch.
  • During operation, this product can be a source of ignition. Never use the torch in spaces that contain or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals. Minimum clearances from house, wooden deck, or any other combustible materials: 72 inches from the sides and 72 inches from the top.
  • Do not obstruct the flow of combustion or ventilation air.
  • Proper torch operation produces a yellow flame approximately 6 - 8 inches tall.


Not for use inside homes, recreational vehicles, or on boats. We cannot foresee every use which may be made of our products. Check with your local fire safety authority if you have questions about use. Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about these.

  • Never refill disposable cylinders.
  • Use the preset regulator that came with the torch. Do not attempt to adjust.
  • Use only Coleman ® accessories or parts. During torch set-up, check all fittings for leaks using soapy water. Never use a flame.



BURN HAZARD

  • Never leave torch unattended when hot or in use.
  • Keep out of reach of children.



CARBON MONOXIDE HAZARD

  • This torch is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO if used and maintained in accordance with all warnings and instructions. Do not block air flow into or out of the torch.
  • Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue and possibly death. You can't see it and you can't smell it. It's an invisible killer. If these symptoms are present during operation of this product get fresh air immediately!
  • For outdoor use only.
  • Never use inside house, camper, tent, vehicle or other unventilated or enclosed areas. This torch consumes air (oxygen). Do not use in unventilated or enclosed areas to avoid endangering your life.


SERVICE SAFETY

  • Use only propane set up for vapor withdrawal.
  • Keep all connections and fittings clean. Inspect propane cylinder and torch propane connections for damage before attaching.
  • During set up, CHECK FOR LEAKS in one or more ways: Apply soapy water to connections. Look for bubbles. Listen for hiss of escaping gas. Feel for extreme cold. Smell for rotten egg odor. Never use a flame. Do not use if leaking.
  • Use as a lighting appliance only. Never alter in any way or use with any device or part not expressly approved by Coleman.
  • Never use as a space heater.
  • Always use in upright position. Protect cylinder from excess heat.


Adult supervision is required during set-up and operation. Do not use this torch for purposes other than for which it is designed. Keep out of reach of children.

Technical Characteristics

Input: 2,200 BTU/HR
Category: Pressure regulated propane
Fuel: 16.4 oz. disposable propane cylinders
Regulator: 3150


Read this manual carefully before assembling, using or servicing this torch. Keep this manual for future reference. If you have questions about assembly, operation, servicing or repair of this torch, please call Coleman at 1-800-835- 3278 or TDD: 316-832-8707. In Canada call 1-800-387-6161.
