WolfVision Cynap Manual

INITIAL SETUP/INSTALLATION

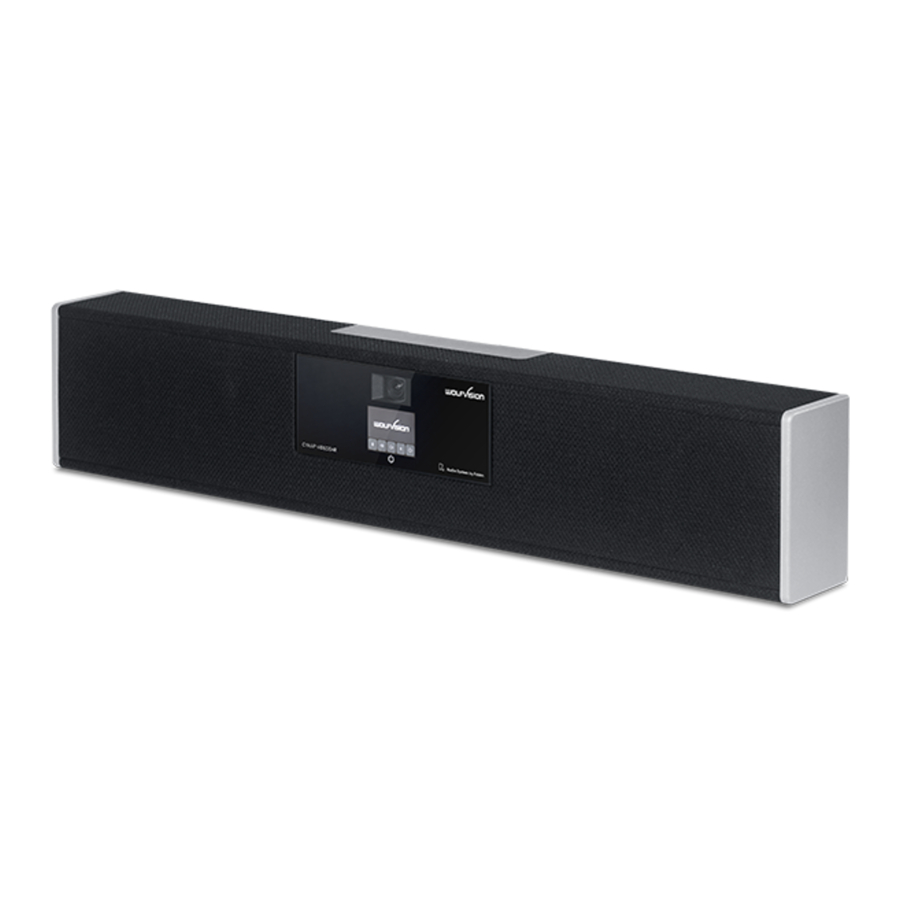

1. Mount the Cynap Videobar your preferred way
2. Connect HDMI cable between Cynap Videobar and screen (monitor or projector)
3. Optional (only for touchscreen users): Connect USB-A cable between Cynap Videobar and touchscreen monitor
4. Connect LAN for a network integration (LAN connection recommended)
5. Plug device into power outlet
6. For best acoustic experience select Room preset and use the Fohhn Optimizer in the Cynap Videobar settings (default admin password "Password")

START SCREEN SHARING

Support for: Apple, Windows, Android and Chrome OS devices
Connect to the Cynap Videobar access point, either by scanning the QR Code or connecting manually. Share your screen using either AirPlay, Chromecast, Miracast or vSolution Cast (vSolution App)

When your device is in the same network as the Cynap Videobar, you can use the shortcuts below.

Windows PC
Press the keys

on the keyboard

Apple Mac
Click on

on the menu bar

START HYBRID MEETING

WIRELESS

1. To start a Hybrid Meeting (BYOM) – Download vSolution App (free download) onto your Windows / macOS laptop
2. Open vSolution App on your Laptop and connect to the Cynap Videobar shown in the Device List.
3. Select "Connect Room Audio/Video" in the Mode Selector
4. Cynap Videobar will now be visible in the audio-/video settings of your conferencing app (MS Teams, Zoom, Google Meet, etc.) as Room Audio / Video

WIRED

1. Connect your Windows / macOS based laptop to USB-C
2. Connect LAN for administrative purposes
3. For best acoustic experience select Room preset and use the Fohhn Optimizer in the Cynap Videobar settings (default admin password "Password")

VOUCHER

Do you need a remote control or a USB-C extension cable?
WolfVision introduces green initiatives wherever possible in order to minimise the company's environmental footprint.
In view of this, and to avoid unnecessary wastage, a remote control is not delivered with this model. However, for customers that need a remote control they are available free-of-charge on request at the time of purchase.
Same rule applies for the USB-C extension cable, which we recommend, when USB-C connection is required, for the necessary cable routing.
Please send an email to wolfvision@wolfvision.com including the serial number(s) of your newly purchased units so that we can complete your request.

More Information and Video Guides in our Quick Start Area

Scan the QR code or visit our website for more information videobar.cynap.net/support
