Kukirin G2 Max Manual

Sketch map

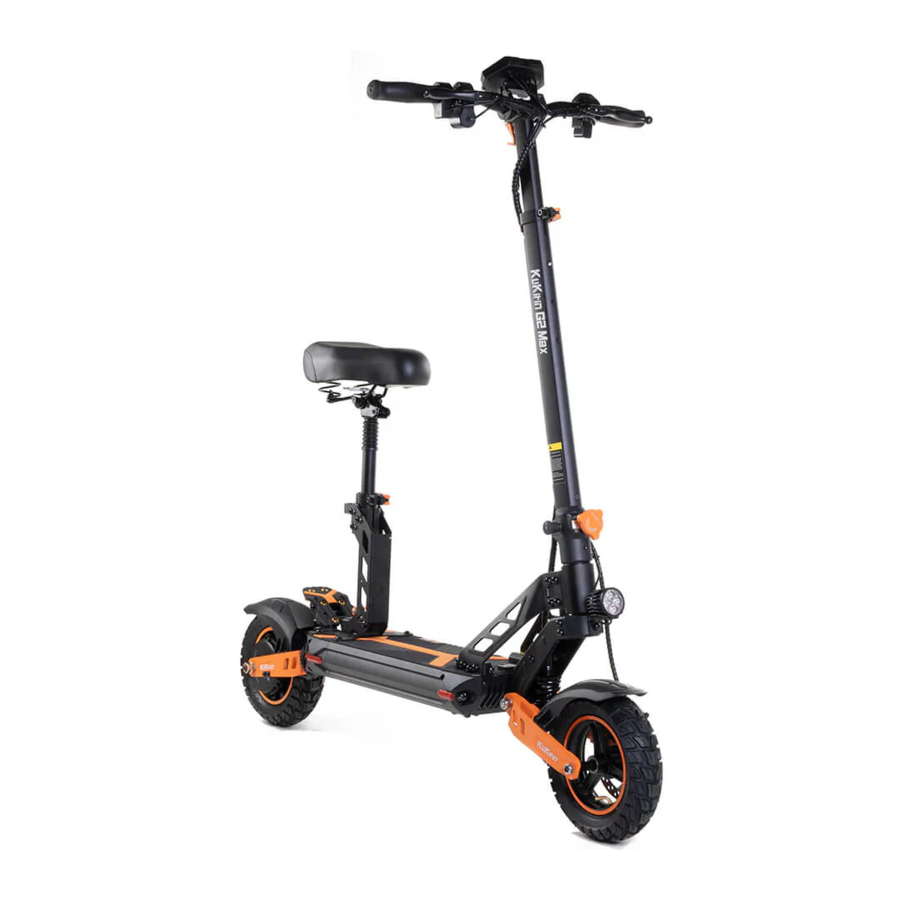

Sketch map and Product Overview

Argument list

Product name KuKirin G2 Max
Size Folded size 1260*605*580 mm
Unfolded size 1260*605*1300 mm
Parameters Maximum speed ≤ 25 km/h
Medium-speed endurance ≤ 70 km
Maximum slope ≤ 22°
Tires 10 inch off-road tires
Shock-absorbing Spring suspension
Waterproof IP54
Brakes Front and rear disc brakes
Display device Speed, mileage, battery level, front light, etc.
Lighting LED
Battery data Input voltage 100~240V/50~60Hz
Voltage/Capacity 48V/20.8Ah
Charging time 54.6V/2A chargers, charging takes about 10 hours.
Maximum load Maximum load 120 kg
Weight Net weight About 31 kg

Packing list

Please carefully check for any loss or damage. If so, please contact us promptly.

Assembly guidelines

Unpacking and assembly

  1. Turn the knob to secure the folding switch
  2. Put the handle tube into the fixed seat.
  3. Tighten the screws and check the power switch.

Fold and unfold

  1. Drop the hook and pull the standing bar.
  2. Pull up the upright pole.
  3. Turn the knob to lock the folding clip.

Maintenance

Lubricating oil: Every six months, a small amount of white lubricating grease or lubricant needs to be added to the folded area for maintenance. The scooter should be inspected every three months to see if any screws are loose. If any are loose, please tighten them.

Battery: When the scooter is charging or not in use, please turn off the power. When it is not in use for a long time, the electric scooter should be placed in a safe location and charged at least once every 3 months.

Storage: Please do not leave the scooter in scorching sun or other severely humid areas for a long time. Please keep the scooter clean.

Operation instruction

Controls and Control Panel Description

  1. Long press the power button to turn it on/off.
  2. Short press the power button once to switch gears. There are three levels.
  3. Press the power button three times in a row to enter the menu setting interface. The instrument panel will display P01, P02, P03, P04, P05, P06, P07, P08, PA, PB.
    P01: Kilometer/mile selection settings, (default is kilometers).
    P02: Voltage level setting, 36V/48V/52V/60V/72V (default value is 48V).
    P03: The unit of wheel diameter is inch, which can be set to 080-160 (default is 100).
    P04: Speed measurement magnetic pole range: 1-100, (default is 30).
    P05: Cruise selection, 0 is no cruise, 1 is cruise, (default is no cruise).
    P06: Zero start/non zero start settings, 0 is zero start, 1 is non zero start, (default is zero start).
    P07: Speed limit setting: range 0-100 percentage speed limit; (default 100).
    P08: For the setting of sleep time, 0 is not sleep, and other numbers are sleep time, (default is 5 minutes).
    PA: Starting force setting, 1-5, 1 minimum, 5 maximum.
    PB: For the braking force setting, it is from 0-5, 0 is turned off, and the braking force of 1-5 gradually increases.

Troubleshooting

Malfunction Code Solutions

Rear motor malfunction

E001 Retry after replacing the rear motor/controller.

Throttle malfunction

E002 Retry after replacing the throttle.

Controller malfunction

E003 Retry after replacing the controller.

Under-voltage

E005 Low battery level, recharge and retry.

Instrument malfunction

E006 Retry after replacing the instrument/controller.
E007 Retry after replacing the instrument/controller.

Charging

Friendly reminder: When charging, the charger indicator light is red; it turns green when fully charged.

Warning

It is important to have a thorough understanding of your new electric scooter so that you can achieve the best performance, comfort, fun, and safety while cycling. To understand the new scooter and its correct operation, you should first carefully read the manual.
It is important to ride for the first time in a safe and controlled manner. For example, stay away from cars, obstacles, and other riders. It should be prohibited to enter highways, motor vehicle lanes, public lanes, reverse traffic, and avoid cycling in the rain. When encountering waterlogged roads, you should slow down and detour.

Scooters are vehicles with certain risks. Do not use mobile phones or wear headphones while cycling. It is necessary to understand the traffic rules for riding electric scooters on local public roads. When you ride every time, you should follow the rules. For your own safety, don't forget to wear a qualified helmet before getting on the scooter. It is recommended to use protective equipment such as elbow and knee pads to provide better protection.

When electric scooters are supplied, there is no basic mandatory equipment, and the situation may vary in different regions. Therefore, if you plan to use electric scooters on public roads, it is necessary to equip electric scooters with basic mandatory equipment in accordance with relevant laws and regulations.
This product is designed specifically for your personal use. Do not use it for commercial or other purposes.
Please keep this manual properly for reference.

Caution

Before cycling, the tire pressure should be checked, the handlebars should be installed correctly and securely. Please ensure that the battery is fully charged. If the battery is low during cycling, please keep the vehicle moving slowly and steadily. Charging should be done as soon as possible.
Before each charging, please check the charger, cables, and plugs. If there is any damage, do not use a charger.

When braking on slippery roads, the braking distance is usually longer than on dry roads. Therefore, it is necessary to brake earlier to park more safely.
You should try to avoid using electric scooters on rainy, stormy, or snowy days. If electrical components (control units, engines, and batteries) become damp or submerged, irreversible damage can occur, even leading to battery explosion.

This product can only be used by one adult at a time. Do not carry any additional passengers. If you feel uncomfortable or under the influence of alcohol or drugs, please do not ride a scooter.
The vehicle is not a toy. Like other vehicles, there is a possibility of falling, colliding, or encountering other dangerous situations. Please do not provide your electric scooter to anyone who does not know how to use it correctly. If you allow others to ride your scooter, it is your responsibility to ensure that all riders are aware of all warnings, precautions, instructions, and safety precautions, and to ensure that they are able to use this product safely and responsibly, and to protect themselves and others from harm. Electric scooters should be kept away from flammable materials and open flames.
