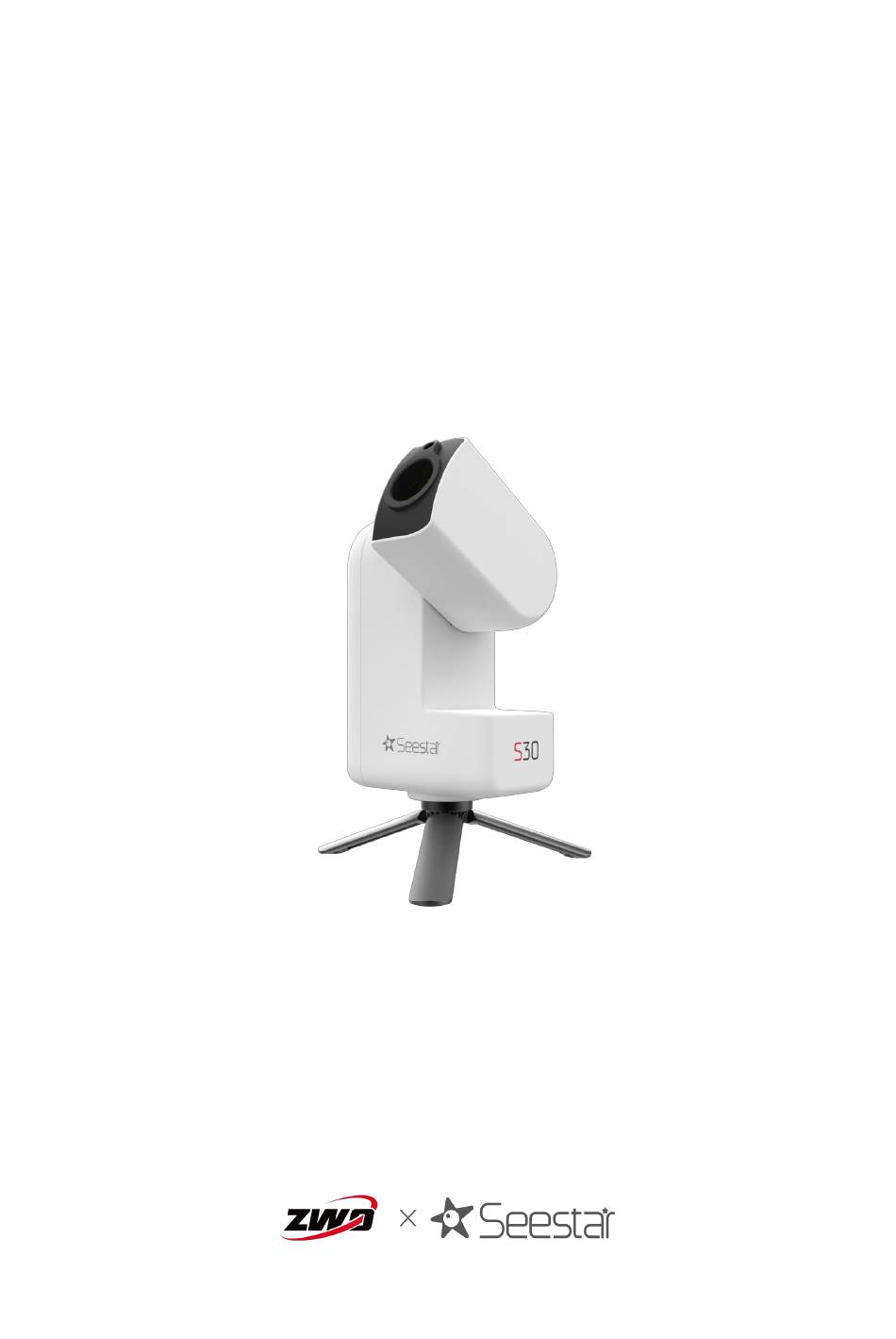

  • Page 1 Seestar S30 User Manual...

  • Page 2: Table Of Contents

    Seestar S30 user manual V1 Table of Contents Preface ..........................2 Important Reminder ......................3 1. Introduce Seestar S30 ...................... 5 1.1 Introduction ......................5 1.2 Key Features ......................5 1.3 What's in the Box? ....................6 1.4 Specification ......................7 1.5 Components ......................10 2.

  • Page 3: Preface

    Based on the successful development experience of the first product, ZWO launched a new Seestar - the Seestar S30, a lighter, smarter and more cost-effective smart telescope featuring dual lenses, makes more people accessible to the beautiful starry sky.

  • Page 4: Important Reminder

    2. Minors must use this product under adult supervision. 3. To charge this device, only use chargers from reputable manufacturers. ZWO is not responsible for damage caused by unqualified chargers. (Charger requirements: supports USB BC1.2; supports 5V 2A in normal mode and up to 12V 3A in fast charge mode).
  • Page 5 Seestar S30 user manual V1 11. Store the product in a clean, dry place (recommended storage conditions: temperature below 60°C, humidity below 50%). During thunderstorms or prolonged periods of non-use, please turn off and properly store the device. 12. Do not use the product in weather conditions where wind speeds exceed Force 3 on the Beaufort scale.

  • Page 6: Introduce Seestar S30

    ED glass. This setup ensures high color fidelity, sharp focus, and crisp imaging by effectively converging refracted light. 3. Intelligent Functionality: Powered by ZWO's proprietary star-finding algorithm, a simple one-click operation enables the built-in telescope to automatically locate, track, plate solve, and focus on celestial targets.

  • Page 7: What's In The Box

    8. Proprietary System: Built on ZWO's independently developed motherboard, ensuring stable system performance. This proprietary system, along with ZWO's patented technologies, guarantees precision in imaging and system stability. Continuous APP updates enhance functionality and user experience.

  • Page 8: Specification

    Seestar S30 user manual V1 1.4 Specification Product Model Seestar S30 Tele：Sony IMX662 Sensor Wide：Specific sensor for wide-angle lens Resolution Tele：1080 x 1920 ,vertical Wide：1920 x 1080 ,landscape orientation Field of View Tele：2.46° Wide：23.2° Aperture Tele：30mm Focal Ratio Focal Length 150mm Optical System Apochromatic...
  • Page 9 Alt-Azimuth Slew Rate 1X- 1440X Zero Position Mechanical 6000mAh, Lasts up to 6 hours after a full charge (tested Battery Life in ZWO laboratory) Interface on Base 3/8-16 Weight 1.65kg (without tripod) Power Input Type-C, Supports DC 5V~12V, 2A~3A Wi-Fi Reset Button...
  • Page 10 Seestar S30 user manual V1 Battery Specification Charging Voltage 4.2V Rated Voltage 3.7V Rated Capacity 6000mAh Rated Power 22.2Wh...

  • Page 11: Components

    Seestar S30 user manual V1 1.5 Components ① Charger Port: USB Type-C ② Power Switch Show battery status Short press the button while power off Power on Long press 2s (Short press 1s and then 2s for first-time use) Power off Long press 2s Forced shutdown Long press 6s...
  • Page 12 Seestar S30 user manual V1 51-75% battery, red, 3 lights on 76-100% battery, red, 4 lights on Boot failure# Red light blinks Four lights blink rapidly Power off Light off Light off Reset Wi-Fi While resetting, the yellow power when the light blinks;...
  • Page 13 Seestar S30 user manual V1 #Reasons for startup failure and solutions ○ Insufficient device battery: Please fully charge the S30 before attempting to power it ○ Other malfunctions: Please contact after-sales technical support. ④ Wi-Fi reset button: Press and hold the Reset button for about 3 seconds to reset the Wi-Fi.

  • Page 14: For First-Time Use

    Seestar S30 user manual V1 2. For First-Time Use 2.1 Set up Seestar S30 Remove the Seestar S30 and accessories from the packaging. Set up the tripod on a flat surface and align the hole at the bottom of the S30 with the 3/8" screw on top of the tripod.

  • Page 15: Start Connection

    Seestar S30 user manual V1 The minimum system and hardware requirements to run the Seestar App: Version IOS/IPadOS 13.0 and above Recommend Adreno 660 Android 10.0 and above 840MHz and above 2.3 Start Connection For first-time use, briefly press the power button on the S30 body for 1 second, then press and hold for an additional 2 seconds.
  • Page 16 Seestar S30 user manual V1 Hit the "Connect" button. *Note: Ensure that Bluetooth, device connection, and Network permissions are enabled for the Seestar App to facilitate a smooth connection. The App will then scan for nearby Seestar S30 devices. Select the S30 you wish to connect to, and tap "Connect".

  • Page 17: Network Activation

    Seestar S30 user manual V1 For the first connection, follow the prompts to locate and press the reset button at the bottom of the S30 to confirm the connection. 2.4 Network Activation When using the Seestar S30 for the first time, you will need to activate it online. Ensure that your mobile phone or tablet has an active Internet connection to complete the activation process smoothly.
  • Page 18 Seestar S30 user manual V1 If activation fails midway, verify that your mobile device is connected to a working Network or home Wi-Fi. You can put the Seestar App in the background, manually connect your mobile device to a valid Network, and then return to the Seestar App to tap the "Retry"...

  • Page 19: Initiating The Connection

    Seestar S30 user manual V1 Important Notes: Do not minimize or close the Seestar App during activation. If activation fails, check your network connection and try again. If the issue persists, please contact customer support. 2.5 Initiating the Connection After successful activation, your mobile device will automatically connect to the Seestar S30's built-in Wi-Fi hotspot.

  • Page 20: Firmware Update

    Seestar S30 user manual V1 hotspot with the name of your S30's serial number (e.g., S30_xxxxxx). The default password is 12345678. 2.6 Firmware Update Once your mobile device is successfully connected to the Seestar S30, if a firmware update is prompted, please follow the instructions to allow the update. Wait for the update process to complete before using the device.

  • Page 21: Using The S30 For Photography

    Seestar S30 user manual V1 2.7 Using the S30 for Photography Below are instructions for both deep space and solar photography. Deep Space Object Photography (Best Conducted at Night) After connecting the Seestar App to your Seestar S30, select "Stargazing" on the homepage.
  • Page 22 Seestar S30 user manual V1 As the telescope moves, you'll notice the angle from the object decreasing, indicating that the device getting closer to the target. After a short wait, the telescope lens will lock onto the target, and then S30 will begin its automatic initialization process, which prepares for subsequent photography.
  • Page 23 Seestar S30 user manual V1 Once initialization is complete, the S30 will automatically start imaging. By default, the Seestar S30 captures 10-second exposure frames and stacks them. You can watch the image gradually getting sharpened in the App. (The waiting time for clear images depends on weather conditions, light pollution, etc.) While it's imaging, you can exit the App and do other things.
  • Page 24 Seestar S30 user manual V1 Once you're satisfied with the quality of the stacked image, click the "Stop" button to end the session. Congratulations, you've successfully captured a deep space object with your S30 ! To export the image to your phone, open the album in the bottom left corner of the imaging page.
  • Page 25 Seestar S30 user manual V1 Click on the image you just took to view it. Hit the "Share" button and then select "Download to local" from the bottom menu. This will save the image to your phone's gallery for quick access.
  • Page 26 Seestar S30 user manual V1 View the target photos you've captured in your phone's gallery, you may share them on social media or in the App's community to share your special stargazing experience with fellow astronomy enthusiasts. *Tip: You can also quickly share your photos directly to the App's community from the Seestar gallery.
  • Page 27 Seestar S30 user manual V1 Once Seestar App is connected to Seestar S30, go to the home page and select "Solar System." In the Solar System targets, select Sun, then click GOTO (ensure the Sun is visible in the sky). The lens will lift to a certain angle and stop. At this point, please follow the...
  • Page 28 Seestar S30 user manual V1 instructions in the App to install the solar filter onto the telescope lens. After installation, click "Installed & Shooting," and S30 will continue its GOTO to the Sun. To ensure maximum safety for both you and the device, auto GOTO will stop once the lens roughly points at the Sun.
  • Page 29 Seestar S30 user manual V1 fine-tune the alignment. Here's how: Switch to the wide-angle view, hit once on the brightest point of the Sun, and the "GO" icon will Appear. Hit again, and Seestar S30 will slew towards the targeted point. Repeat this process until the Sun is visible in the telephoto view.
  • Page 30 Seestar S30 user manual V1 speed, and manually adjust the lens to align with the Sun. Once aligned, you will see the Sun clearly in the telephoto view. Choose the suitable magnification levels (1x/2x/4x) to observe the Sun, choose the Appropriate field of view, and tap the circular button below to capture a photo.
  • Page 31 Seestar S30 user manual V1 Next, let's view the photos you've just captured. Open the album at the bottom left of the imaging interface, and switch the album tab at the top to "Saved" to view images taken with the S30. (For videos, navigate to the "Seestar"...

  • Page 32: Battery Life

    When using the device outdoors, you can carry a portable charger to charge the device as needed. Note: The battery life is based on test results from ZWO's internal laboratory. Actual usage time may vary depending on the environment and operating conditions of the device.
  • Page 33 Seestar S30 user manual V1 a. Method 1: In the App, go to the "My" page, and at the bottom, use the swipe-to-shut-down function. The Seestar S30 lens will return to the zero position and then shut down smoothly. b. Method 2: On the Seestar S30 device, press and hold the power button for 3 seconds.

  • Page 34: Accessory Installation And Removal

    Seestar S30 user manual V1 3. Accessory Installation and Removal 3.1 Installing the Solar Filter Warning: Do not allow the telescope lens to directly observe the sun! ● While observing the sun, please use the standard solar filter coming with Seestar. Before entering the Solar System mode in the Seestar App for solar observation, follow the on-screen instructions to attach the magnetic solar filter to the primary mirror position.
  • Page 35 Seestar S30 user manual V1 3. Carefully disconnect the battery terminal. 4. Finally, remove the battery. Please ensure that you handle everything gently throughout the process to avoid damaging the equipment. Precautions: 1. Before removing the battery, make sure the device is turned off and disconnected from any power source.

  • Page 36: Observation/Photography Tips

    Seestar S30 user manual V1 4. Observation/Photography Tips ● Targets like the Veil Nebula can be very difficult to observe and require extremely dark skies. For beginners, it is recommended to start with brighter deep-sky objects such as M31, M42, and NGC104. ●...

  • Page 37: Structural Dimension Diagram

    Seestar S30 user manual V1 5. Structural Dimension Diagram...

  • Page 38: Disclaimer

    ZWO assumes no responsibility for any losses resulting from the improper use of this product against the guidelines outlined in the User Manual. To the extent permitted by law, ZWO reserves the right of final interpretation of this document. ZWO may update, revise, or discontinue this document without prior notice.

  • Page 39: After-Sales Service

    If ZWO confirms in writing that a replacement is necessary, the user must return the product with all accessories, manuals, and packaging to the address specified by ZWO.

  • Page 40: Warranty Policy

    3 days, ZWO will verify and offer refund or replacement for items shipped directly by ZWO or its authorized distributor. If the shipment is handled directly by the dealer, the dealer will be responsible for after-sales support.
  • Page 41 Seestar S30 user manual V1 7）Damage due to force majeure events such as floods, fires, earthquakes, lightning, or severe impact. 8）User errors during operation or usage that result in damage. 9）Lack of valid proof of purchase or warranty certificate. 10）The product is a second-hand item. Accessories or other components with quality issues are not grounds for returning or replacing the main device.
