IMPORTANT:
Before you begin, make sure you familiarize
yourself with all the parts and fully read the
instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays
between 7:00am and 6:00pm Central Time at
800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver and tape
measure. NOTE: If screw gun has a clutch, set to
lowest setting so as not to over tighten and/or
strip screws.
PARTS IDENTIFICATION:
A
Pilaster Pole
B
Pilaster Extension Connect Clip
Shoulder Screw, M4 x 6 mm long,
C
3 mm Shoulder
Phillips flat Head Wood Screw,
D
#8 x 1"
E
Nylon Push Rivet

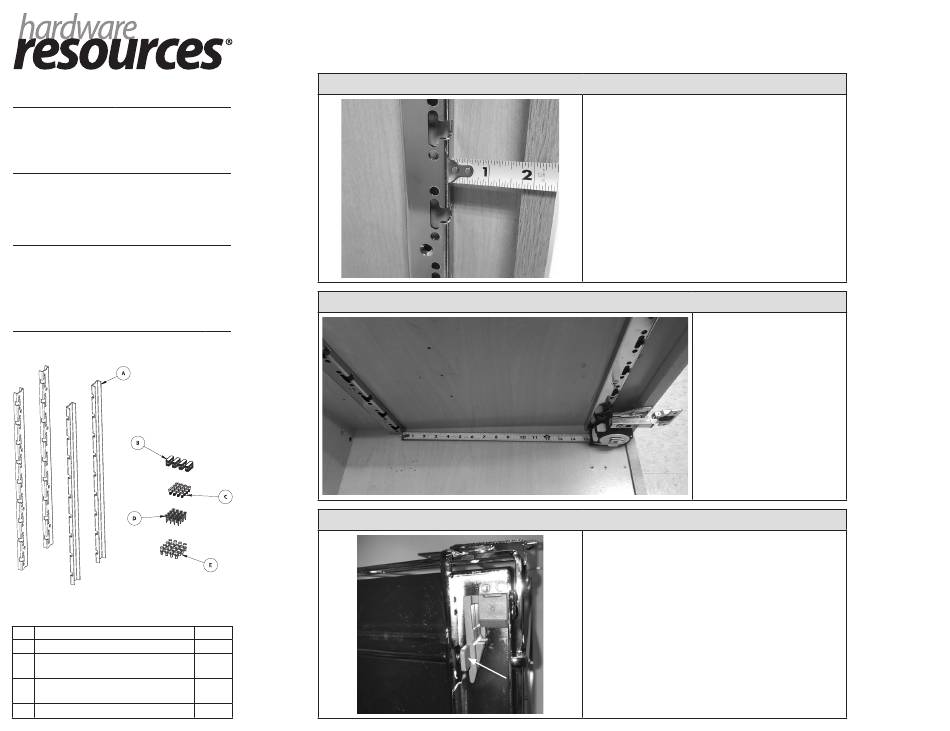

Storage with Style Pilaster System
Installation Instructions for the SWS-PIL Series
Bottom View
4 pcs
4 pcs
16 pcs
16 pcs
16 pcs
STEP 1
Place front pilaster poles (A) approximately 1 ¾" behind face
frame using #8 x 1" wood screws (4x each)
STEP 2
STEP 3
Detach basket from slide assembly by pressing the clip release
Press Inward
Measure 15" between front and
back poles and attach back pilaster
poles (A) using #8 x 1" wood screws
(4x each)
Advertisement
Summary of Contents for HARDWARE RESOURCES SWS-PIL Series
- Page 1 Storage with Style Pilaster System Installation Instructions for the SWS-PIL Series STEP 1 IMPORTANT: Before you begin, make sure you familiarize yourself with all the parts and fully read the instructions. CUSTOMER SERVICE: Toll free customer help line available weekdays Place front pilaster poles (A) approximately 1 ¾”...
- Page 2 STEP 4 STEP 5 Shoulder screw Loosen screw Attach shoulder Loosen 4 screws screws M4 x 6 mm holding extendable (C) on 4 extendable arms arms STEP 6 STEP 7 Ensure slide assembly is seated properly and insert Nylon push rivet nylon push rivets as shown Extend arms to...
