Nordtronic Box Dimmer Zigbee G2 Manual

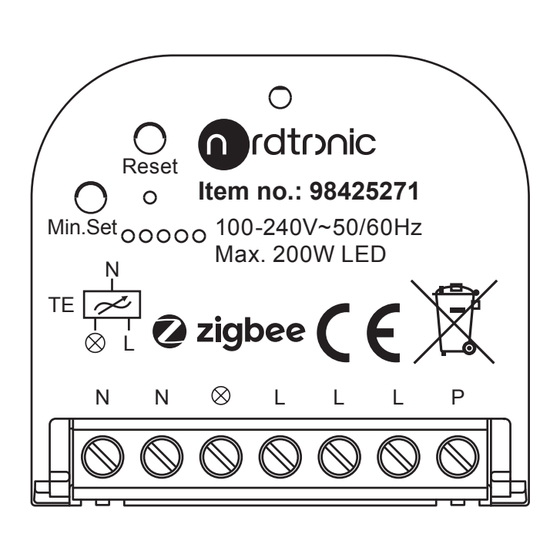

Box Dimmer Zigbee
Reset
Item no.: 98425271
Min.Set 100-240V~50/60Hz
Max. 200W LED
N
TE
L
N N
42 mm
Reset key
For network pairing or factory reset of the dimmers
Zigbee network.
Dim Up/Down and turn ON/OFF load.
Min. Set Button
1) Set minimum brightness
2) Set startup brightness
Input voltage Output voltage
100-240VAC 100-240VAC
Load symbol Load type Maximum load
Dimmable
LED lamps
Dimmable
LED drivers
DO NOT install with power applied to device
DO NOT expose the device to moisture
Talks with
Homey
100-240 5-200W
Vac LED
RoHS
Find the updated manual on our website – nordtronic.com
With reservation for typing errors
Nordtronic A/S | Flade Engvej 4 | DK-9900 Frederikshavn | Denmark | CVR: 29808708
Tel: +45 7020 9531 | nordtronic.com
G2
38 mm
L L L P
Reset
Item no.: 98425271
100-240V~50/60Hz
Min.Set
Max. 200W LED
N
TE
L
N N L L L
Output Current
0.1-1.1A
Remarks
Due to variety of LED
lamp designs, maximum
200W @ 230V number of LED lamps
100W @ 110V is further dependent on
power factor result when
connected to dimmer
Maximum permitted
200W @ 230V number of drivers is
100W @ 110V 200W divided by driver
nameplate power rating
Notes for the diagrams
L terminal for live lead
N terminal for neutral lead
O output terminal of the dimmer (controlling connected light source)
P terminal for switch
P
Method 1: With neutral
Method 2: Without neutral
16 mm
42 mm

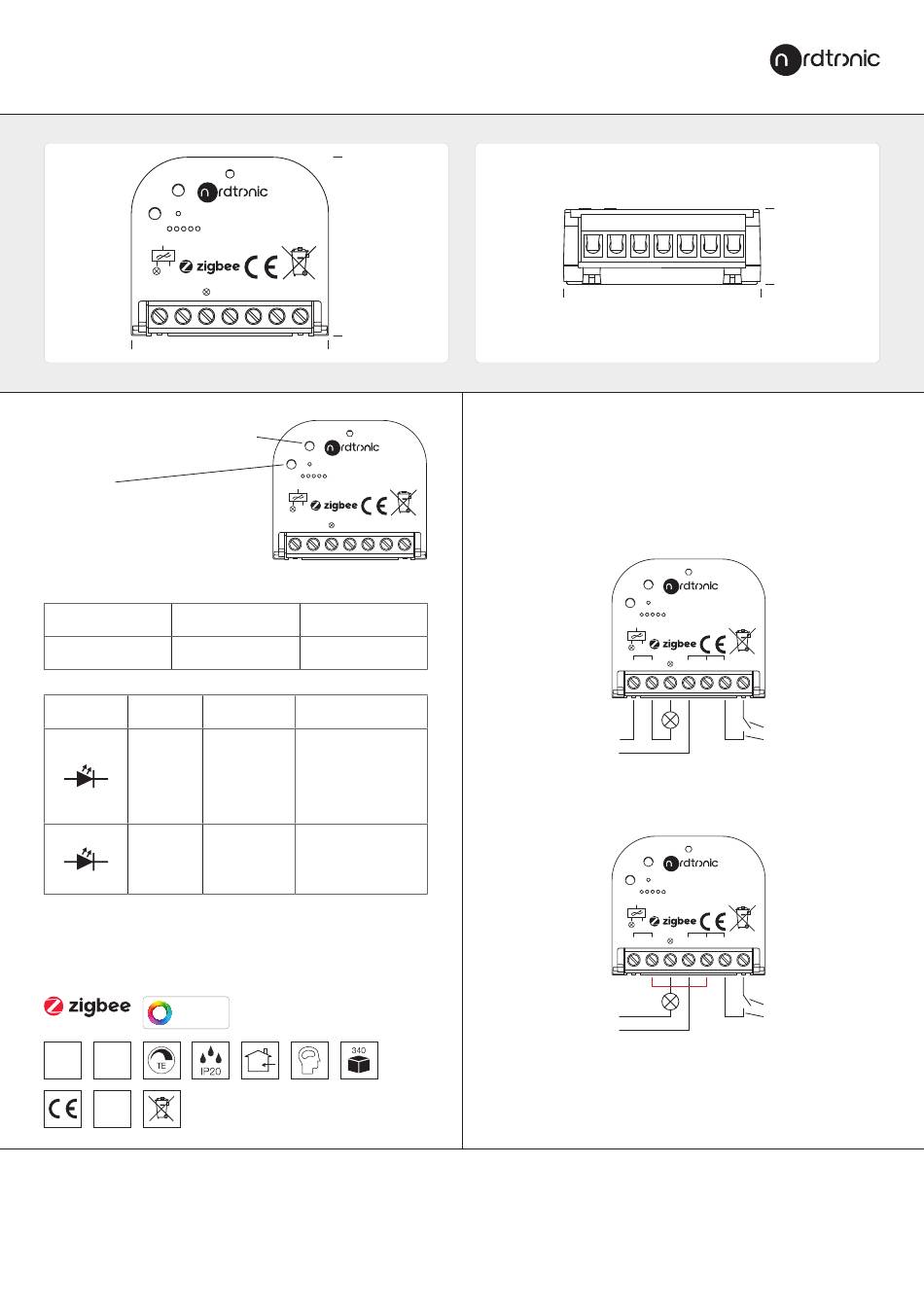

Wiring Diagram
Reset
Item no.: 98425271
Min.Set 100-240V~50/60Hz
Max. 200W LED
N
TE
L
N N L L L P
Max. 180 m 1.50 mm
N Max. Push x 10
L
Reset
Item no.: 98425271
Min.Set 100-240V~50/60Hz
Max. 200W LED
N
TE
L
N N L L L P
Max. 180 m 1.50 mm
N Max. Push x 10
L
›››››
2
2
Manual
98425271 | 12-2024
