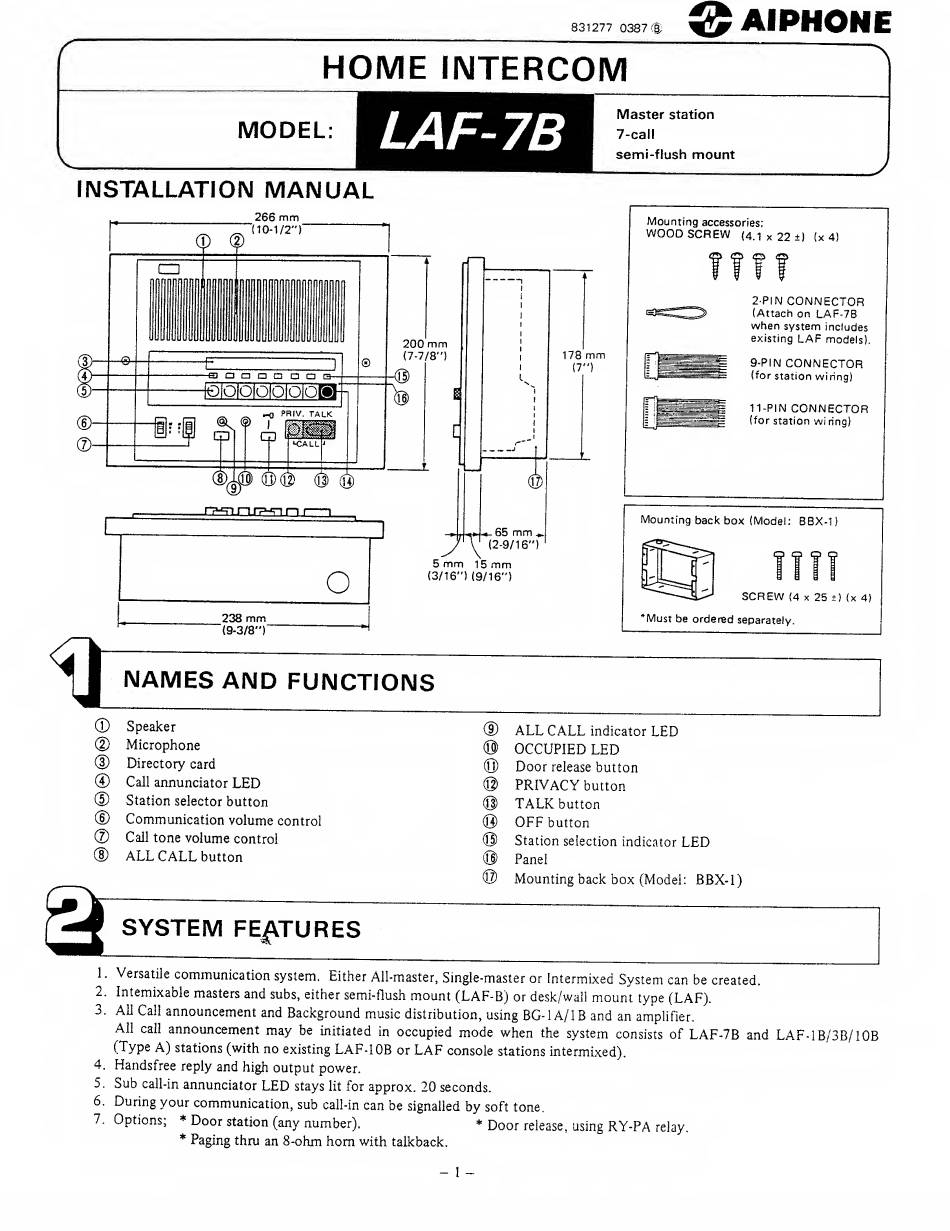

Aiphone LAF-7B Installation Manual

831277 0387 4
@ AIPHONE
HOME INTERCOM
MODEL:
LAF-7B
INSTALLATION MANUAL
__ 266 mm
I _ ^ (10-1/2")
200 mm
(7-7/8")
i □ □ □ o □ □ 0-
)|QIOIOIOlOlO»
^ ^ -o PRIV. TALK
®v ? i K&Ma
178 mm
(7")
Master station
7-call
semi-flush mount
Mounting accessories;
WOOD SCREW (4.1 x 22 ±) (x 4)
2-PIN CONNECTOR
(Attach on LAF-7B
when system includes
existing LAF models).
9-PIN CONNECTOR
(for station wiring)
11-PIN CONNECTOR
(for station wi ring)
»- 65 mm H
(2-9/16")
5 mm 15mm
(3/16")(9/16")
238 mm
"(9-3/8")'
NAMES AND FUNCTIONS
Speaker
Microphone
Directory card
Call annunciator LED
Station selector button
Communication volume control
Call tone volume control
ALL CALL button
ALL CALL indicator LED
OCCUPIED LED
Door release button
PRIVACY button
TALK button
OFF button
Station selection indicator LED
Panel
Mounting back box (Model: BBX-1)
• SYSTEM FEATURES
1. Versatile communication system. Either All-master, Single-master or intermixed System can be created.
2. Intemixable masters and subs, either semi-flush mount (LAF-B) or desk/wall mount type (LAF).
3. All Call announcement and Background music distribution, using BG-1 A/IB and an amplifier.
All call announcement may be initiated in occupied mode when the system consists of LAF-7B and LAF-1B/3B/10B
(Type A) stations (with no existing LAF-10B or LAF console stations intermixed).
4. Handsfree reply and high output power.
5. Sub call-in annunciator LED stays lit for approx. 20 seconds.
6. During your communication, sub call-in can be signalled by soft tone.
7. Options; * Door station (any number). * Door release, using RY-PA relay.
* Paging thru an 8-ohm horn with talkback.
