Summary of Contents for EV charging Atlas AC Home

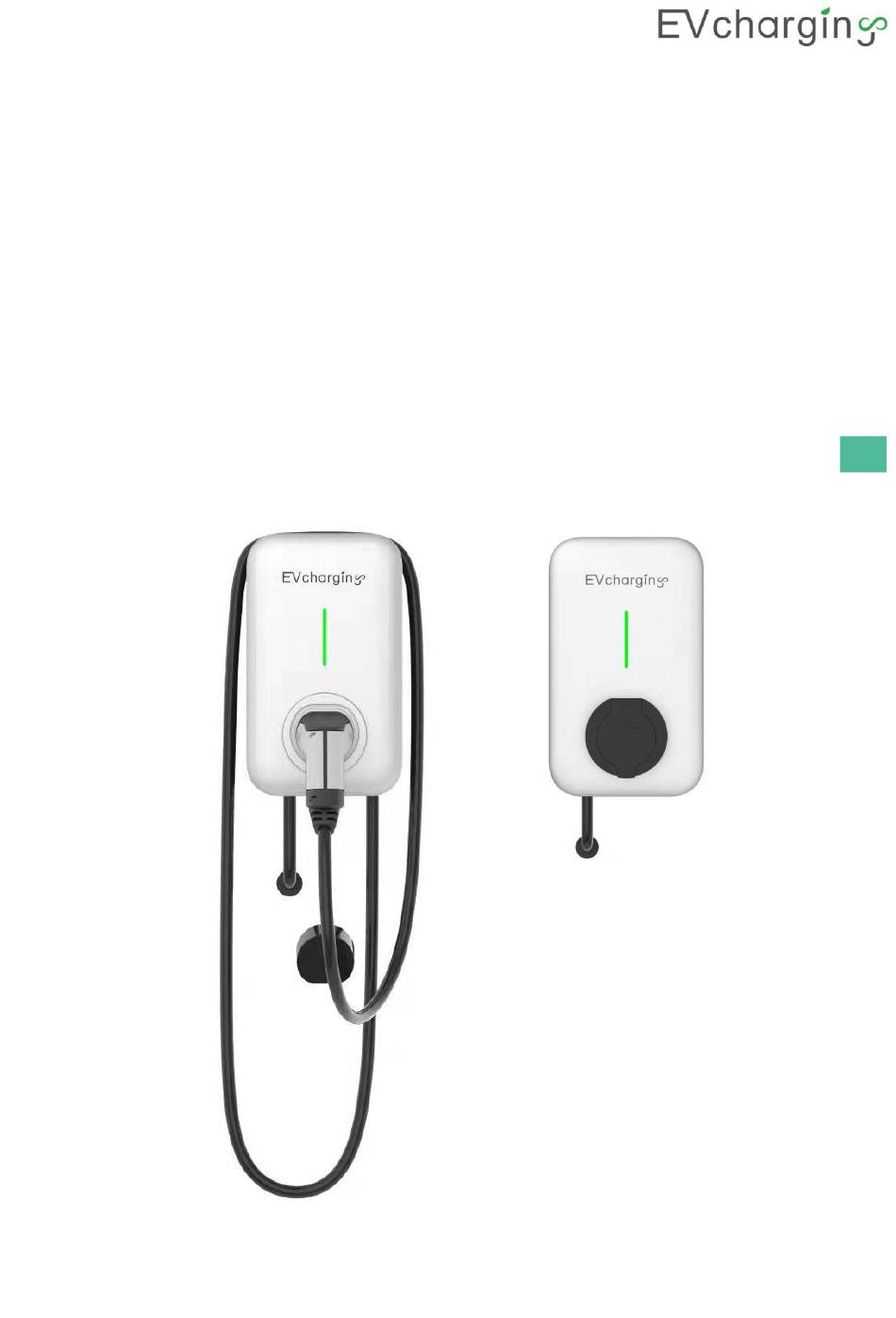

- Page 1 Atlas AC Home Charger User Manual...
- Page 2 Important Safety Instructions Please read all instructions carefully before using this product. This document describes the precautions to be paid attention to during the installation, operation, and maintenance of the product. Strictly follow the instructions in this document before installing and using the product. Warning: Do not install or use wall-mounted Warning: Before the equipment is powered on, make connectors near flammable, explosive or combustible...
-
Page 3: Table Of Contents
Table of Contents Safety Features ............................1 Product Specification ..........................2 Components & Features ........................... 3 Installation steps ............................4 Networking Configuration ........................6 Devide Maintenance ..........................7 Status Indicator Light ..........................7... -
Page 4: Safety Features
Residual current detection (RCD) Atlas AC home charger has integrated typeA 30mA + 6mA DC leakage protection residual current device (RCD) conforming to IEC standards, so there is no need to install RCD B type leakage protection circuit breaker outside unless the local grid require to. -
Page 5: Product Specification
Product Specification Model A7-ST Socket A11-ST Socket A7-ST Cable A11-ST Cable Voltage Range AC 183-276 Vac L-N AC 320-480 Vac L-L AC 183-276 Vac L-N AC 320-480 Vac L-L Rated Current Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz Rated Power 11kw 11kw Wire Single phase (1P+N+PE) Triphasic (3P+N+PE) Single phase (1P+N+PE) Triphasic (3P+N+PE) -
Page 6: Components & Features
Components & Features Product Enclosure Sweep card area: The integrated RFID reader allow charging cards scanned. Atlas will read the information on your card to determine whether it is allowed to start or stop charging. LED indicator: Light in different colors and display mode to reflect the real-time status of the charger. -
Page 7: Installation Steps
Installation steps Choose the circuit breaker before installation For safe use of Atlas Charger and maximum output power, please install circuit breaker as suggestion: 1. A single-phase 40A circuit breaker at the input line of ‘A7-ST Socket’ or ‘A7-ST Cable’. 2. - Page 8 Note: For single-phase cables, require at least 32A cables 2 Wiring as input cables. For three-phase cables, require at least Input power cable 16A cables as input cables. 1. Release the two screws which used for fix input power Ethernet line line.
-
Page 9: Networking Configuration
2. Click in the center or ‘+’ in the upper right corner. Member management You can share the Atlas AC home charger with your family or friends. 3. Scan the QR code of the label on the right side of the 1. -
Page 10: Devide Maintenance
You can also get the detailed product manual through our official website. We’d love to hear from you, please reach out to us at http://www.evchargingplus.com. All rights to copyrights, registered trademarks, and trademarks reside with their respective owners. Copyright @EV Charging Clean Energy Technology Co.,Ltd. All rights reserved.
