Summary of Contents for Macurco TracXP TXP-WRR

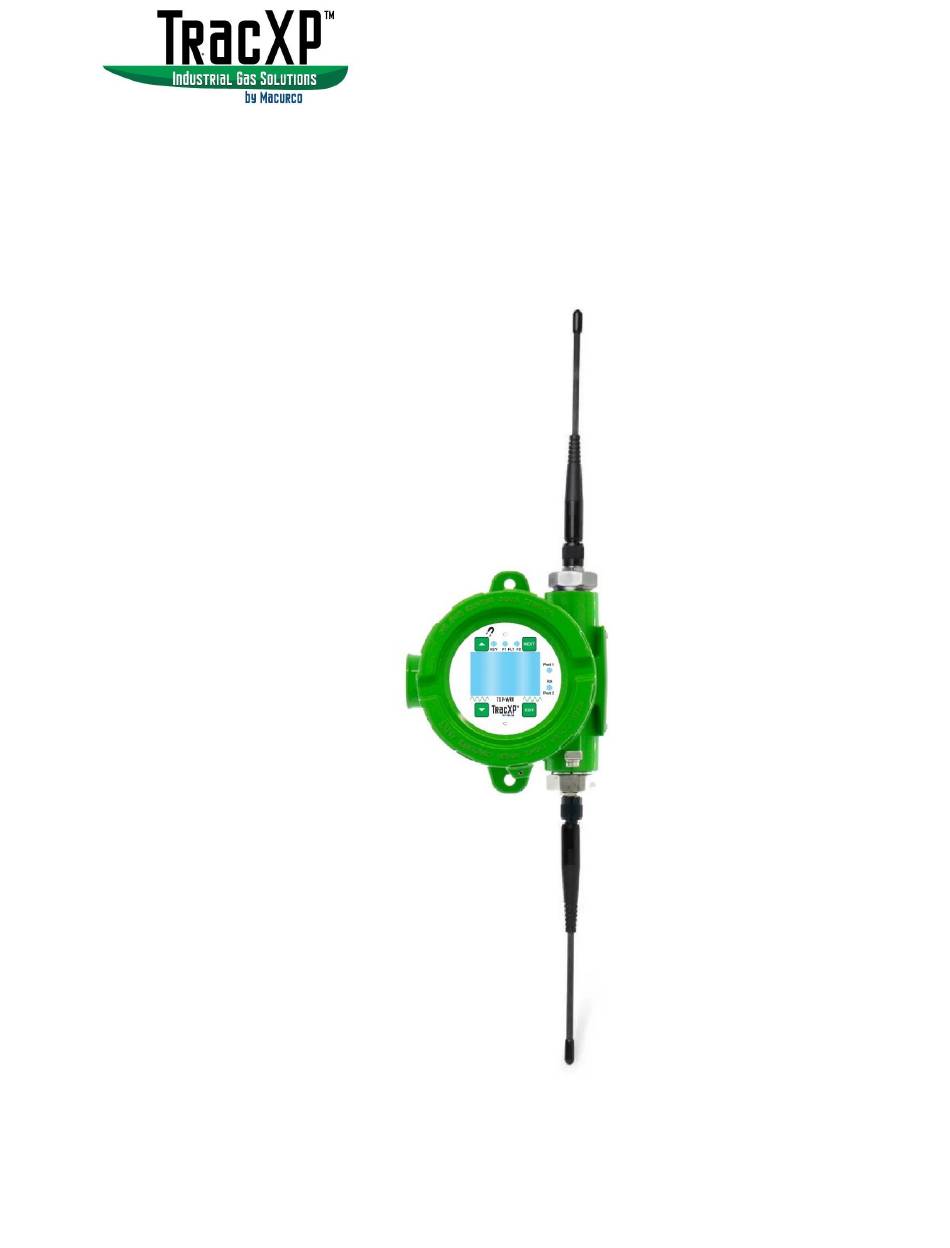

- Page 1 TracXP™ TXP-WRR Wireless Radio Repeater Instruction Manual IMPORTANT: Read and understand contents of this manual prior to operation. Keep these user instructions for reference.
-
Page 2: Table Of Contents
4.3.3 BAUD RATE ........................10 CONTRAST MENU ........................10 SYSTEM SECURITY MENU ....................... 10 RADIO MODE ......................... 10 Chapter 5 Macurco Gas Detection Product limited warranty ......12 Contact Information ......................... 12 REV – 1.0 [34-2900-0000-1] P a g e... -
Page 3: Chapter 1 Safety Information
TracXP TXP-WRR Manual Chapter 1 Safety Information SAFETY INFORMATION – READ BEFORE INSTALLATION AND APPLYING POWER The following symbols are used in this manual to alert the user of important instrument operating issues: This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions. -
Page 4: System Design Specifications
TracXP TXP-WRR Manual SYSTEM DESIGN SPECIFICATIONS DISPLAY 128x64 pixel LCD, LED Backlight for menu navigation and unit setup. AMBIENT TEMPERATURE RANGE -40 – 60 degrees C POWER SUPPLY 10 - 30 VDC at 10 Watts max ANTENNNA SELECTION AND INSTALLATION 2.4.1 ANTENNA TRANSMISSION RANGE... -
Page 5: Antenna Selection And Location
TracXP TXP-WRR Manual 2.4.2 ANTENNA SELECTION AND LOCATION A site survey using an RF spectrum analyzer and test radios is highly recommended. The location of the antenna is very important. Ensure the area surrounding the proposed location is clear of objects such as other antennas, trees or power lines which may affect the antenna’s performance and efficiency. -
Page 6: Txp-Wrr Display Assembly
TracXP TXP-WRR Manual WARNING: Qualified personnel should perform the installation according to applicable electrical codes, regulations and safety standards. Ensure correct cabling and sealing fitting practices are implemented. Install the ST-97 to a wall or bracket using the predrilled mounting flanges with I.D. 0.25 on 5 inch centers (Figure 3-1). If conduit is rigid and able to support the weight of the TXP-WRR, the mounting bolts may be omitted. -
Page 7: Rf Bridge Board
TracXP TXP-WRR Manual RF BRIDGE BOARD The RF Bridge Board is installed piggy backed to the Display Assembly for easy access to the Port two radio module. The TXP-WRR RF Bridge Board contains connections for the 900MHz Radio Module which can be used for Port 2 radio communication. -
Page 8: Main Menu
TracXP TXP-WRR Manual P OR T 9 0 0 MH z N e t w o r k N E T WOR K S E R V E R P OR T 9 0 0 MH z N e t w o r k... -
Page 9: Network Mode
TracXP TXP-WRR Manual WaveNet Mode Legacy Mode H OP C h a n n e l S y s t e m H o p C h a n n e l S y s t e m Figure 4-4 Radio Menus 4.3.1 NETWORK MODE... -
Page 10: Baud Rate
TracXP TXP-WRR Manual Note: TX Power menu settings are available to improve communications reliability by increasing the power of wireless broadcasts. TX Power may be set for 10mW, 200mW, 400mW and 1W (EIRP based upon a 2 dBi antenna). The maximum TX Power setting is 30db (1 watt), and each time TX power is reduced by half, antenna transmit power is reduced by 3dB. - Page 11 TracXP TXP-WRR Manual which utilizes the TXP-WCR as the server. In some installations, it may be desirable to make the TXP-WRR the server. If its location is more central to all radios in the network or is in range of units that are out of range of other nodes.
-
Page 12: Chapter 5 Macurco Gas Detection Product Limited Warranty
Chapter 5 Macurco Gas Detection Product limited warranty Macurco warrants the TXP-WRR will be free from defective materials and workmanship for a period of two (2) years from the date of manufacture, provided it is maintained and used in accordance with Macurco instructions and/or recommendations.
