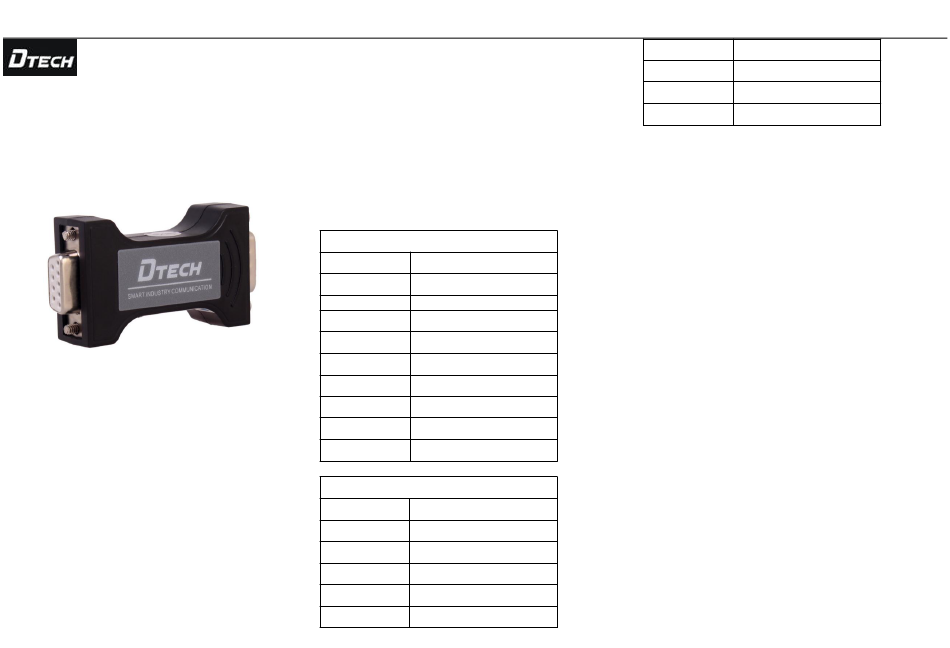

DTech DTIB-0708 Manual

DTIB-0708
RS232 Optical Isolator
Manual
Overview
The DTIB-0708 is a compact, port-powered, 3-wire RS-232
isolator. With adoption of advanced photoelectric isolation
technology, it optically isolates three RS-232 lines (TX, RX and
GND) and 2500Vrms optical isolation effectively protects devices
on both ends of the RS-232 interface from ground loops, transient
surges, lightning strikes ， noise and hot-plug issues. The isolator
has a DB-9 female connector on the RS-232C serial port and DB-9
male connector on the other RS-232 port. It is powered from the
RS232 data lines, requires no external power or software drivers,
making the unit a highly reliable and plug-and-play device.
The Performance Parameters
GUANGZHOU DTECH ELECTRONICS TECHNOLOGY CO.,LTD
5th Floor, No. 74 Xingshan Middle Road, Zhongluotan Town,Baiyun District, Guangzhou, China
1. Standards: EIA RS-232 & CCITT v. 24 asynchronous protocol
2. Connector Type: DB-9 female and DB-9 male
3. Baud Rate: from 300 bps to 115200 bps
4. Isolation Voltage: 2500 VRMS pulse or 500V DC continuous
5. Port Powered from RS-232 data lines (TXD, RTS or DTR)
6. Transmission Modes: asynchronous, full duplex, transparent
7. Operating Environment: - 86 ℉ to 158 ℉
The Connector and Signal：
RS-232C DTE Side Pin Assignment
DB9 Female RS-232C Interface Signal
1 Protective Ground
2 Transmitted Data (TXD)
3 Received Data (RXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 Ring Indicator (RI)
RS-232C DCE Side Pin Assignment
DB9 Male RS-232C Interface Signal
1 Protective Ground
2 Received Data (RXD)
3 Transmitted Data (TXD)
4 Data Terminal Ready (DTR)
5 Ground (GND)
6 Data Set Ready (DSR)
7 Request To Send (RTS)
8 Clear To Send (CTS)
9 Ring Indicator (RI)
Connection:
The DTIB-0708 is used between RS-232 port. Between DTE and
DCE device, the female connector of the isolator is connected with
host/DTE (e.g. PC, multiple user card), the male connector is
connected with client/DCE (e.g. modem, terminals); Between two
DTE devices, a crossover cable is needed and the female connector
of the isolator is connected with DTE device, the male connector
of the isolator is connected with the crossover cable, then connect
the cable to another DTE device.
Applications：
Multi-user system like UNIX
Multi-user
terminal and host
Program-controlled switches, terminals, switch billing
Satellite receiver
Multi-user card
Modem and router
Between RS-232 devices without common ground (e.g. ATMs)
Note: This isolator is used for 3 wire RS-232 isolation (pin 2, pin 3
and pin 5). For 5 wire RS-232 isolation (pin 2, pin 3, pin 4, pin 5
and pin 7), you may choose DTIB-0708S model. If you have a
high requirement for power source, please choose active
photoelectric isolators like DTIB-0708T (3 wire) or DTIB-07080N
（9 wire）
