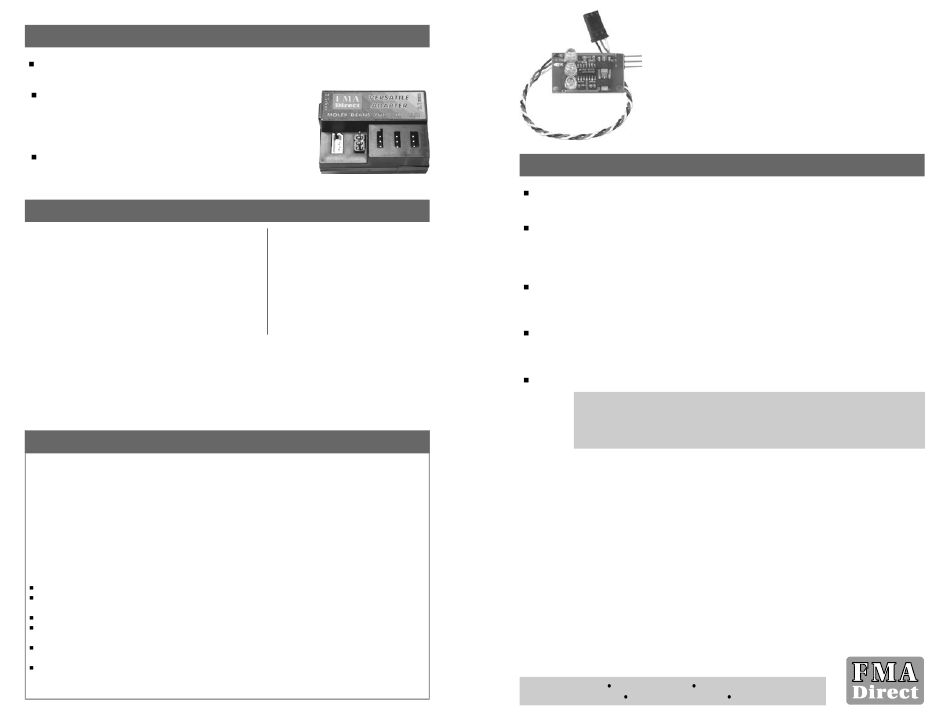

FMA Direct Sport VRLI1-LIPO Quick Start Manual

4
Even more tips
The LIPO-402 and LIPO-102/202 chargers, available from Kokam/USA, are ideal for charging
LiPo battery packs.

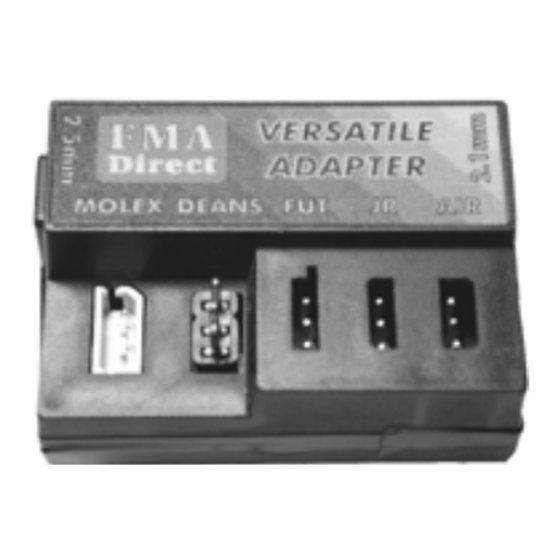

The Versatile Adapter, part number 501MC, is a great companion
for any charger. It provides Futaba, JR, Airtronics, Deans and
Molex connectors, plus 2.1mm and 2.5mm power jacks, enabling
you to easily connect your cells and packs to the charger. The
chargers plug right into the 2.5mm power jacks.
To determine the LiPo pack configuration that will work best in
your application, use the LiPo Calc design tool on the Kokam/USA
Web site, www.kokamusa.com (or www.fmadirect.com).
Sport VRLI specifications
Model VRLI1-LIPO
For battery types Lithium Polymer (LiPo)
Nominal input voltage 7.4VDC
(2 LiPo cells in series)
Nominal output voltage 5.0V
LEDs versus input voltage
Green LED on at >7.3V
Yellow LED on between 7.3V and 6.0V
Red LED on at <6.0V
Nominal output voltage Regulated 5.0VDC at 2A continuous for inputs greater than 5.0V,
maximum 0.5V output drop for inputs less than 5.0V (regardless of
input voltage)
Maximum output current 2.0A continuous
Dimensions 1.3 in. (33mm) L x 0.75 in. (19mm) W x 0.23 in. (5.8mm) H
(not including LEDs and connectors)
FMA limited warranty for electronic speed controls
FMA, Inc. warrants this product to be free of manufacturing defects for the term of 1 year from the date of pur-
chase. Should any defects covered by this warranty occur, the product shall be repaired or replaced with a unit of
equal performance by FMA or an authorized FMA service station.
Limits and exclusions
This warranty may be enforced only by the original purchaser, who uses this product in its original condition as
purchased, in strict accordance with the product's instructions. Units returned for warranty service to an FMA
service center will be accepted for service when shipped postpaid, with a copy of the original sales receipt or
warranty registration form, to the service station designated by FMA.
This warranty does not apply to:
Consequential or incidental losses resulting from the use of this product.
Damage resulting from accident, misuse, abuse, neglect, electrical surges, reversed polarity on connectors,
lightning or other acts of God.
Damage from failure to follow instructions supplied with the product.
Damage occurring during shipment of the product either to the customer or from the customer for service
(claims must be presented to the carrier).
Damage resulting from repair, adjustment, or any alteration of the product by anyone other than an authorized
FMA technician.
Installation or removal charges, or damage caused by improper installation or removal.
Call (301) 668-7614 for more information about service and warranty repairs.
VRLI1-NCD
NiCd/NiMH
4.8 or 6.0VDC
(4 or 5 NiCd/NiMH cells in series)
4.8 or 5.0V
on at >4.75V
on between 4.5V and 4.75V
on at <4.5V
Sport VRLI
voltage regulator / LED indicator for powering
radio control receivers and standard servos
Model VRLI1-LIPO: for 7.4V Lithium Polymer battery packs
Model VRLI1-NCD: for 4.8 and 6.0V NiCd and NiMH battery packs
Features
Designed specifically for powering flight electronics (receiver and servos) in engine-powered
radio controlled aircraft.
VRLI1-LIPO regulates 7.4VDC (from two Lithium Polymer cells in series) to 5.0VDC.
VRLI-NCD regulates 6.0VDC (from five NiCd/NiMH cells in series) to 5.0VDC. Low drop-
out regulator maintains maximum 0.5V drop, even if battery voltage decreases under full load
(e.g., if battery outputs 4.8V, the VRLI outputs 4.3V minimum).
Supplies 2A continuous current, sufficient for driving up to five standard (moderate torque)
sport servos, as well as micro and mini servos. This unit is not recommended for use with
digital servos.
LEDs show two battery voltage check points—helpful for stopping radio use before battery
packs fall below 2.5V/cell (LiPo); 1.13V/cell (4-cell NiCd/NiMH); 0.90V/cell (5-cell NiCd/
NiMH).
Easy to install: connects between radio switch and receiver using universal plug and jack.
Note: When using LiPo batteries in electric-powered models, use an FMA LiPo
Electronic Speed Control instead of the Sport VRLI. FMA LiPo ESCs work with LiPo,
NiCd and NiMH batteries, and have a Battery Eliminator Circuit (BEC) to power the
radio system.
Kokam/USA Lithium Polymer cells are the next-generation replacement for NiCd, NiMH and
Lithium Ion cells. This unique power technology offers high energy density, low weight, long
life, safe operation and environmentally-friendly chemistry. Order Kokam/USA cells and packs
through the Kokam/USA Web site, www.kokamusa.com (or www.fmadirect.com). LiPo technical
and application information is available in the Support section of the Web site.
FMA, Inc. 5716A Industry Lane Frederick, MD 21704
Sales: (800) 343-2934 Technical: (301) 668-7614 www.fmadirect.com
