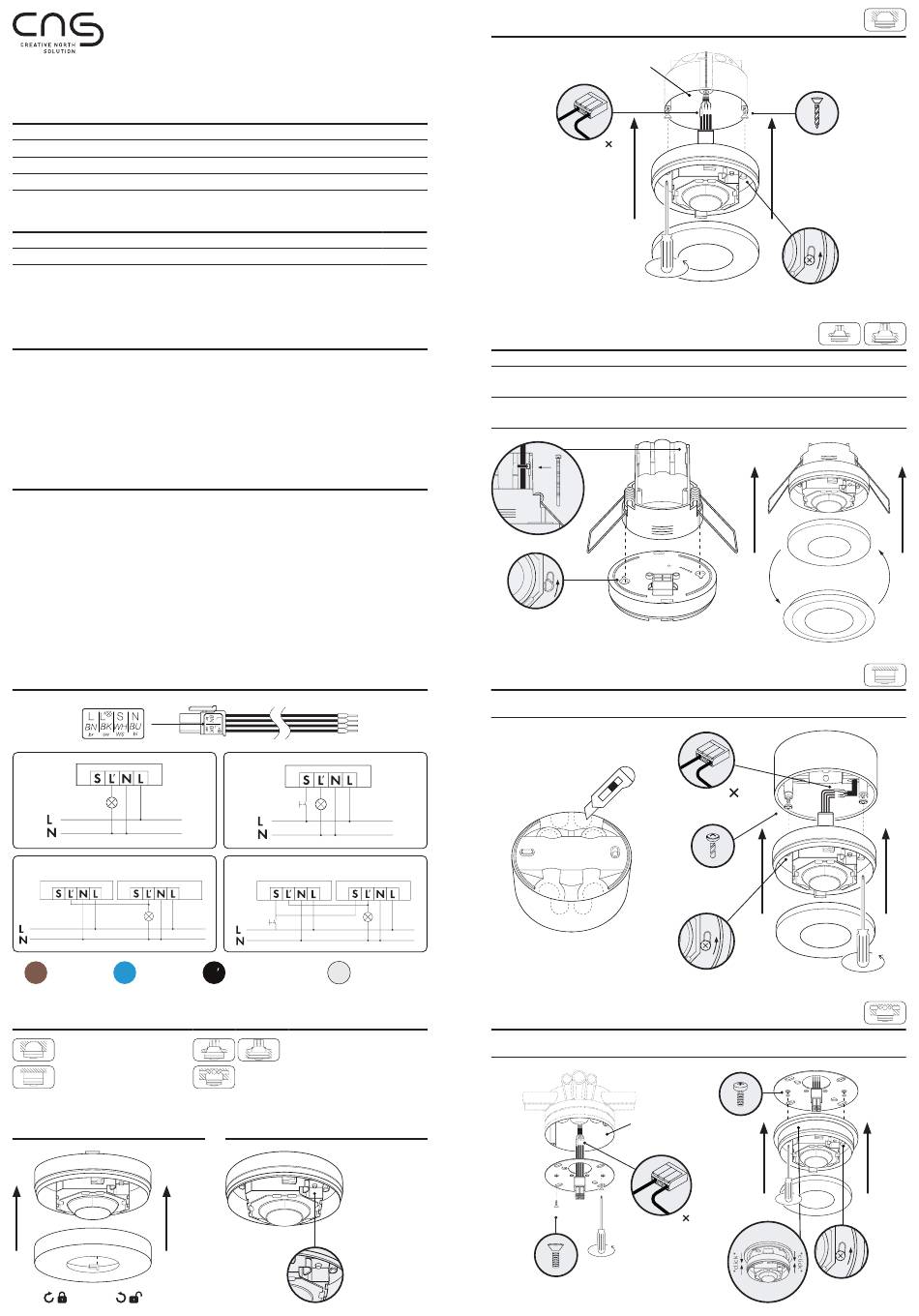

CNS DT 230V Series Manual

MANUAL
D T 2 3 0 V S E R I E S
APPLIES TO THE FOLLOWING MODELS
DT-230-360i-10 wo
DT-230-360i-10 ao
DT-230-360i-10-MIC wo
DT-230-360i-10-MIC ao
SCOPE OF DELIVERY
DT-230-360i-10 XXX xx
Connection cable
MAN-No.: ME-901004-10
SAFETY INFORMATION
• Work on the 230V current may only be carried out by authorized
specialist personnel under consideration of the country's customary
installation regulations/standards.
• Disconnect the supply voltage before installation.
• Do not put the device into operation if damaged!
SHORT DESCRIPTION
The All in One sensors are passive infrared detectors for automated
switching of connected lighting. They react according to ambient
brightness and presence/movement indoors. At the push of a button
you can switch between motion or presence detection (MD / PD).
The 360° detector has a range of 10m in diameter at an installation
height of 2.80m. The microphone (product-variant with additional
function) allows the lighting to be switched on again in non-detectable
areas, by receiving acoustic signals.
WIRING DIAGRAM
Master-Master connection
Phase Neutral
L N
brown blue
INSTALLATION
1. Flush-mounting
3. Surface-mounting
COVER MOUNTING
*click*
DT202000
DT202001
DT202003
DT202004
DT20200X
CB-001000
Master-Master connection (button)
Switched output Push button input
L S
black gray or white
2. Recessed ceiling
mounting w/ spring clips
4. Flush-mounting w/
cover frame
PROG-BUTTON
FLUSH-MOUNTING
Ø 68mm
4
RECESSED CEILING MOUNTING
DT-FM Set Recessed ceiling mounting set
Recessed ceiling mounting set
DT-FM Set - GST18
w/ Wieland GST18
Recessed ceiling mounting set
DT-FM Set - WINSTA
w/ WAGO WINSTA
*
Optionally switch cover for flush ceiling installation.
SURFACE-MOUNTING
DT-Surface Box w / a IP 20 surface box white / anthracite
FLUSH-MOUNTING W/ COVER FRAME
Adapter plate white / anthracite
DT-Adapter Set w / a
for flush-mounted box >Ø68mm
Ø 68 - 89mm
DT302003
DT302008
DT302009
or
*
DT302001/
DT302002
4
DT302005/
DT302006
4
