- Page 1 EN 54-24 0051 0051-CPR-3003 0051-CPR-3004 0051-CPR-3005 SPI-W420200, SPI- W520200, SPI-W640200 Two-way wall-mount loudspeakers Installation manual...
-
Page 2: Table Of Contents
Table of contents 1. Description of SPI-W420200, SPI-W520200, SPI-W640200 1.1 Description of parts 1.2 Technical specifications 1.3 CE Mark 2. Installation 2.1 Response diagrams 3. General information 3.1 About this manual 3.2 Manufacturer's details 3.3 Warranty 3.4 Limited warranty 3.5 Documents for the users 3.6 Disposal of the product Installation manual- 100... -
Page 3: Description Of Spi-W420200, Spi- W520200, Spi-W640200

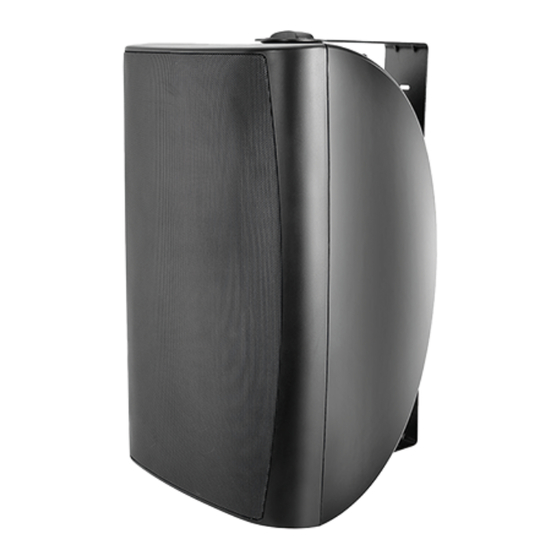

Suitable for 70V or 100V lines Selector for adjusting the output power Equipped with internal transformer for adapting the power parameters Flame resistant ABS thermoplastic casing IP21C certified protection grade Metal front grille Adjustable metal coupling bracket Waterproof cable glands for connection cables Connection via external IP66 box supplied Ceramic terminal block Thermal fuse included Black colour Power selector The output power of the audible signal can be set using a manual selector located on the back of the pro- jector and reachable with a flathead screwdriver(Description of parts, [I]). The power setting depends on the signal voltage used (70 or 100V): SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l. -
Page 4: Description Of Parts
1. Description of SPI-W420200, SPI-W520200, SPI-W640200 70 V Model SPI-W420200 SPI-W520200 SPI-W640200 Voltage applied 70 V 100 V 70 V 100 V 70 V 100 V 2.5W [A] 1.25W 2.5W 1.9W 3.75W 2.5W [B] 2.5W 3.75W 7.5W [C] 7.5W [D] ... -
Page 5: Technical Specifications
Type of environment 170 x 170 x 270 mm 185 x 185 x 295 mm 220 x 220 x 330 mm 4= woofer 5= woofer 6.5= woofer 1= tweeter 1.5= tweeter 1.5= tweeter Dimensions 500mm securing cable Weight 2.5 Kg 3.7 Kg Operating environmental conditions Temperature from -10 to +40 °C Relative humidity f95 % without condensation (EN IEC 62368-1) Isolation class Terminal type INPUT ES2, PS2 SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l. -
Page 6: Ce Mark
1. Description of SPI-W420200, SPI-W520200, SPI-W640200 1.3 CE Mark 0051 INIM Electronics s.r.l. Via Dei Lavoratori 10 - Fraz. Centobuchi 63076 Monteprandone (AP) - Italy 0051-CPR-3003 0051-CPR-3004 0051-CPR-3005 EN54-24:2008 SPI-W420200, SPI-W520200, SPI-W640200 Loudspeakers for fire detection and signalling systems Essential features Performance Performance in the event of fire... -
Page 7: Installation
The installation must be in compliance with the national rules. The cables used for the wiring must have an adequate section and comply with the IEC 60332-1-2 or IEC 60332- 2-2 standard. SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l. -
Page 8: Response Diagrams
2. Installation 2.1 Response diagrams Frequency response The graph below shows the frequency response with values found from 500 Hz to 4 KHz. SPI-W420200 [dB] 80.0 75.0 70.0 65.0 60.0 55.0 50.0 45.0 40.0 35.0 30.0 1000 1500 2000 2500 3000 3500 4000 4500 [Hz] SPI-W520200 [dB] 80.0 75.0 70.0 65.0 60.0 55.0 50.0... - Page 9 Horizontal and vertical coverage angle The diagrams below show the angles of horizontal and vertical coverage, measuring the directivity of the loudspeaker in both positions for the octave bands from 500 Hz to 4 kHz. SPI- [dB] [dB] W420200 -30° 30° 330° 30° -60° 60° 300° 60° CLIO -90° 90° 270° CLIO 90° -120° 120° 240° 120° -150° 150° 210° 150° 180° 180° SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l.
- Page 10 2. Installation SPI- [dB] [dB] W520200 330° 30° -30° 30° -60° 60° 300° 60° CLIO CLIO -90° 90° 270° 90° -120° 120° 240° 120° -150° 150° 210° 150° 180° 180° SPI- W640200 [A] Horizontal coverage [B] Vertical coverage [C] 500 Hz [D] ...
-
Page 11: General Information
Copyright:The information contained in this document is the sole property of Inim Electronics S.r.l.. Copy- ing, reprinting or modification of this document, in part or as a whole, is not permitted without prior autho- rization in writing from Inim Electronics S.r.l.. All rights reserved. 3.2 Manufacturer's details Manufacturer: Inim Electronics S.r.l. Production plant: Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP), Italy Tel.: +39 0735 705007 Fax: +39 0735 734912 E-mail info@inim.biz Web: www.inim.biz The persons authorized by the manufacturer to repair or replace the parts of this system have authorization to work only on devices marketed under the brand Inim Electronics. 3.3 Warranty Inim Electronics S.r.l.. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As Inim Electronics does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us;Inim Electronics does not warrant against loss of quality, degradation of performance of this product or actual damage that results from the use of products, parts or other repla- ceable items (such as consumables) that are neither made nor recommended by Inim Electronics. Seller obligation and liability under this warranty is expressly limited to repairing or replacing, at Seller's option, any product not meeting the specifications. In no event shall Inim Electronics be liable to the purchaser or any other person for any loss or damage whether direct of indirect or consequential or incidental, including without limitation, any damages for lost profits, stolen goods, or claims by any other party caused by defec- tive products or otherwise arising from the incorrect or otherwise improper installation or use of this product. This warranty applies only to defects in parts and workmanship relating to normal use. It does not cover damage arising from improper maintenance or negligence, damage caused by fire, flood, wind or lightning, vandalism, fair wear and tear. SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l. -
Page 12: Limited Warranty
3. General information Inim Electronics S.r.l. shall, at its option, repair or replace any defective products. Improper use, that is, use for purposes other than those mentioned in this manual will void the warranty. Contact Our authorized dea- ler, or visit our website for further information regarding this warranty. 3.4 Limited warranty Inim Electronics S.r.l. shall not be liable to the purchaser or any other person for damage arising from impro- per storage, handling or use of this product. Installation of this Product must be carried out by qualified persons appointed by Inim Electronics. Instal- lation of this Product must be carried out in accordance with Our instructions in the product manual. 3.5 Documents for the users Declarations of Performance, Declarations of Conformity and Certificates concerning to Inim Electronics S.r.l. products may be downloaded free of charge from the web address www.inim.biz, getting access to Extended Access and then selecting "Certifications" or requested to the e-mail address info@inim.biz or requested by ordinary mail to the address shown in this document. Manuals may be downloaded free of charge from the web address www.inim.biz, getting access to the reser- ved area, after the login, and then to the section of each product. 3.6 Disposal of the product Informative notice regarding the disposal of electrical and electronic equipment (applicable in countries with differentiated waste collection systems) The crossed-out bin symbol on the equipment or on its packaging indicates that the product must be ... - Page 13 3.6 Disposal of the product SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l.
- Page 14 3. General information Installation manual- 100...
- Page 15 3.6 Disposal of the product SPI-W420200, SPI-W520200, SPI-W640200 | © 2023 Inim Electronics S.r.l.
