MIC IN

PUSH

100-240V

1.5A~

50/60Hz

Please read this Manual before setting up Impact Pro Codec and stick to its

requirements strictly for Safety reason. Suggest you save this manual for

PUSH

OUT AUDIO IN

SDI OUT

SDI IN

USB1 USB2

User Guide

(English Version)

further inquiries reference.

PeopleLink Impact Pro Codec

Product Manual | Edition | Release 042023 |PEP-PIS-COD

VGA IN

HDMI OUT2

HDMI OUT3

HDMI OUT1

HDMI IN

DVI-I IN

User Guide

D-MIC

BASIC SETUP

VTOUCH

COM 1/2

NET1

NET2

Table of Contents

Need help?

Do you have a question about the Impact ProCodec and is the answer not in the manual?

Questions and answers

Summary of Contents for PeopleLink Impact ProCodec

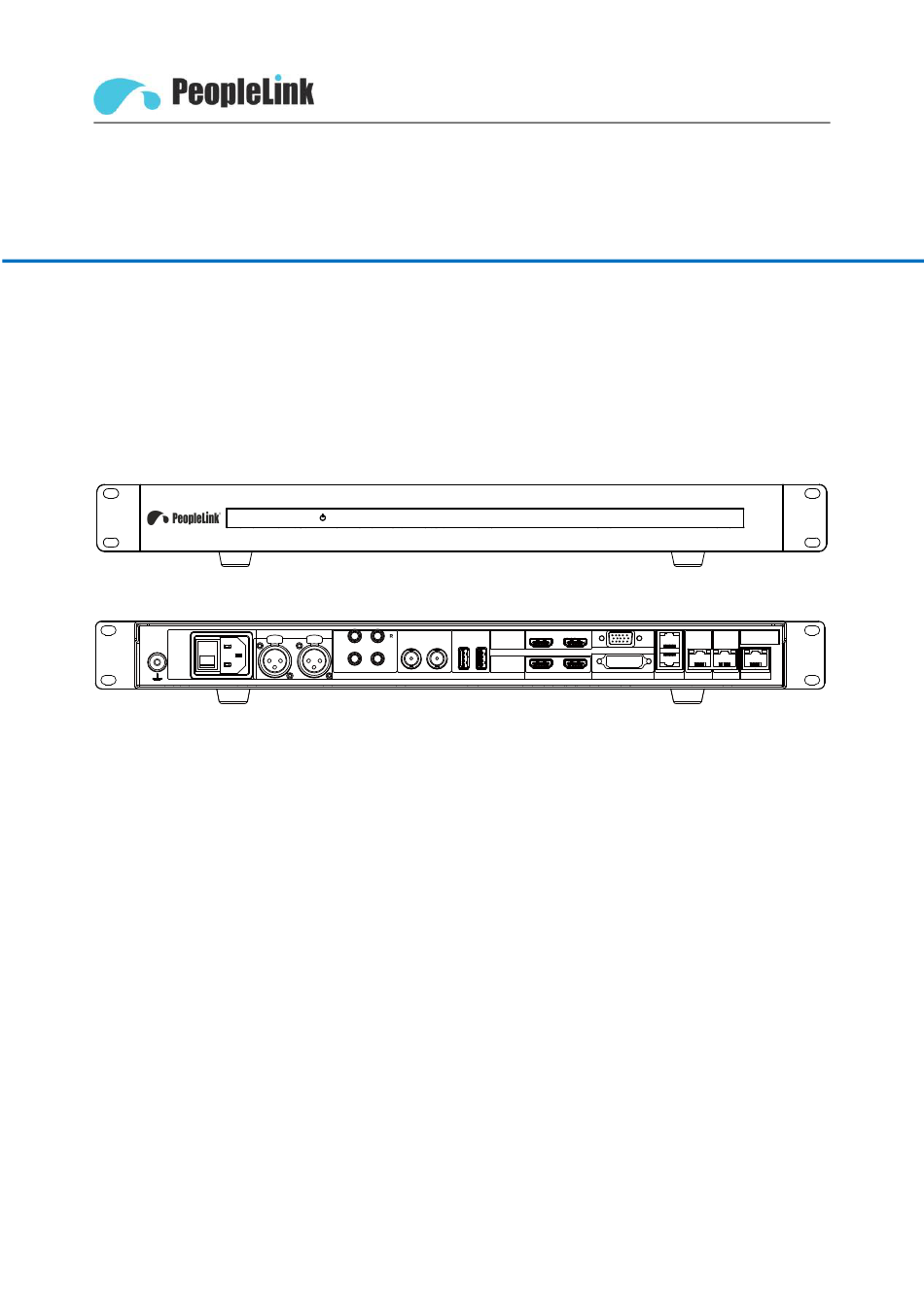

Page 1 User Guide User Guide PeopleLink Impact Pro Codec Product Manual | Edition | Release 042023 |PEP-PIS-COD MIC IN D-MIC BASIC SETUP PUSH PUSH VTOUCH 100-240V VGA IN HDMI OUT2 HDMI OUT3 1.5A~ 50/60Hz OUT AUDIO IN SDI OUT SDI IN...
Page 2 PeopleLink Under the law, reproducing includes translating into another language or format. As between the parties, PeopleLink, retains title to and ownership of all proprietary rights with respect to the software contained within its products.
Page 3: Table Of Contents
User Guide Catalogue Packing List ....................1 About Product .....................2 Product Appearance .................... 2 Product Specifications ..................4 Installation Connection ................5 Connection Cable ....................5 Power On ......................7 Remote Control ...................8 GUI Main Interface ..................9 Basic Settings ....................10 Network Settings ....................10 H323 Account (optional) ..................11 SIP Account (optional) ..................13 Display Name .....................
Page 4: Packing List
User Guide 1 Packing List When unpacking, please check and confirm all accessories that should be provided. PQRS WXYZ FAR/NEAR LAYOUT HD Video Conference Terminal x 1 Power Adapter x 1 Remote Control x 1 RJ45 to DIN8 Control Cable x 1 HDMI Cable x 2 Quick Start x 1 User Guide x 1...
Page 5: About Product
User Guide 2 About Product The split HD video conference terminal adopts embedded system design and supports 1080P HD codec and H.323 and SIP communication protocols. Split-type design, easy to install, connect to the network, microphone, TV, plug in the power to communicate. The voice and image information are transmitted to each other to complete various conference functions such as document sharing.
Page 6 User Guide MIC IN 2 Microphone audio input interface 2 for receiving voice Lotus head audio output interface, connects the speaker AUDIO OUT and terminal through the audio cable to output sound. Lotus head audio input interface, connects to the audio AUDIO IN input devices such as microphones, mixers, etc.
Page 7: Product Specifications
User Guide COM 1/2 interface for connecting the external serial COM 1/2 communication device. D-MIC Digital microphone input interface. Network interface 1, connected to the network through the NET1 network cable. Network interface 2, connected to the network through the NET2 network cable.
Page 8: Installation Connection
User Guide 3 Installation Connection The terminal can be installed in the cabinet or placed directly on the horizontal desktop. Note  If you place the terminal directly on the desktop, keep the desktop steady and pay attention to the anti-slip. ...
Page 9 User Guide  Microphone Audio Input: Use the cannon cable to connect a matching microphone to MIC IN interface.  Player Audio Input: Use the lotus head cable to connect a computer or phone audio source to the AUDIO IN interface. ...
Page 10: Power On
User Guide 3.2 Power On Turn on the power after all the devices used with the conference terminal have been connected. Notice  When the terminal power is on, prevent the power cord disconnecting from the terminal and causing the terminal to lose power. ...
Page 11: Remote Control
User Guide 4 Remote Control Power On/Restart Key: Remote Control Indicator Open/Close or restart the terminal Zoom + Key: Zoom in Volume + Key: Increase output volume Zoom - Key: Zoom out Volume - Key: Decrease output volume Direction Key: Up/down/left/right OK Key: Confirm selection move menu Home Key: Enter the main menu...
Page 12: Gui Main Interface
User Guide 5.GUI Main Interface Press the menu key “ ” of the remote control to enter the GUI main interface. 192.168.14.22 10:00 Call Diagnostic Control Description Description Description IP Address Time Call Menu Diagnostic Menu Control Menu Settings Menu Move the cursor to “...
Page 13: Basic Settings
User Guide Basic Settings 4.1 Network Settings Before using the Ethernet for video communication, you must pre-configure the Ethernet parameters of the terminal, like IP address, netmask, Default gateway and DNS address. Operation  Step 1 Enter the GUI main interface, select “Settings > Network > IP”. Step 2 Configure the network parameters.
Page 14: H323 Account (Optional)
User Guide Parameter Description Configure the network working mode:  Auto  10M Full Duplex  10M Half Duplex Work Mode  100M Full Duplex  100M Half Duplex  1000M Full Duplex  1000M Half Duplex  DHCP: The terminal automatically obtains an IP address through a DHCP server.
Page 15 User Guide Settings H323 Account Network Enable H.323: Account Register Mode: Manual Call H323 Account *GK Server: Audio SIP Account *Site Name: Site Number: Video Display Name Username: Security Site Password: Protocol Save Record Parameter Description Enable H.323 Enable or disable H.323 function. Select the H.323 account register mode, when in manual register Register Mode mode, you need to enter the information required for H.323...
Page 16: Sip Account (Optional)
User Guide 4.3 SIP Account (optional) Configure the SIP parameters, set the SIP address of the terminal, and communicate with the remote server through the registration number. Operation  Step 1 Enter the GUI main interface, select “Settings > Account > SIP Account”. Step 2 Configure the SIP parameters.
Page 17: Display Name
User Guide Parameter Description Username Enter the username used to register the SIP server. Enter the password of the SIP server to be used by the terminal to authenticate the terminal of the SIP server. When the SIP server is Password authenticated, the password set by the terminal must be the same as the password set in advance on the SIP server.
Page 18: Language Setting
User Guide Settings Display Name Network Terminal Name: Encode H.323 display name as: Unicode Account Decode H.323 display name as Auto Call H323 Account Audio SIP Account Video Display Name Security Protocol Record Save Default 4.5 Language Setting Step 1 Enter the GUI main interface, select “Settings > System > Language”. Step 2 Set the desired system language.
Page 19 User Guide Settings Date Audio Automatic Date Time Language Video NTP Server Date Select Time Zone Security Guide Enable 24 hour Format Protocol Reset Record Select Date Format Subtitles System Other Save Parameter Description Enable “Automatic Date Time” to indicate the time provided Automatic Date Time by the network.
Page 20: Reset Setting
4.7 Reset Setting Step 1 Enter the GUI main interface, select “Settings > System > Reset”. Step 2 Select “Reset to factory settings”. Step 3 Select “Save” to confirm and restart system. Notice After restoring the factory settings, all the terminal parameters you configured previously will be lost and restored to default settings.
