Zone Industrielle des Chanoux - F 93330 NEUILLY / MARNE (France)
1 - USE :
Temperature control or limitation of liquids or gases.
Can be removed without draining the tank provided the protective well sheath is left in place.
2 - DESCRIPTION :
- A liquid expansion thermostat with a copper bulb (diameter 6 mm) inserted in a copper protective well sheath
(diameter 8 mm). The thermostat is attached to the protective well sheath by a perpendicular locking screw on
the threaded union.
- Load temperature range:
-
reference 9030-11 : 10 - 90°C, maximum admissible temperature on the bulb : 120°C,
-
reference 9030-12 : 40 - 120°C, maximum admissible temperature on the bulb: 150°C.
- Adjustment of temperature set value by indexed button.
- Change-over contact with rapid power cut-out.
- Cut-out power on a resistive load : 15 amps at 250 volts a.c., 10 amps at 400 volts a.c.
- Differential : 6°C ± 1°C.
- Connections to 3 screw terminals + earth, inside the box.
- Protection index : IP 40.
- Comes with a copper protective well sheath (diameter 8 mm, length 120 mm on the 1/2" BSPT threaded union).
- Maximum load pressur : 10 bar.
- Storage temperature: -10 - 120°C.
3 - PRECAUTIONS BEFORE USE : Check that :
- The boss provided to take the protective well sheath has a 1/2" BSPT thread.
- The bulb is made of a material compatible with the fluid controlled.
- Adequate clearance will allow the thermostat to be removed (tunned side : 120 mm).
- The unit must only be powered up when the box lid is in place.
4 - INSTALLATION AND ELECTRICAL CONNECTION :
4 - 1 - INSTALLATION :
-
Screw the protective well sheath (having first removed it) on to the boss provided for this purpose.
-
Carefully insert the bulb into the protective well sheath and tighten the locking screw located on its union.
VULCANIC S.A. - 48, rue Louis Ampère
Tél. (33) 01.49.44.49.20 - Fax (33) 01.49.44.49.41

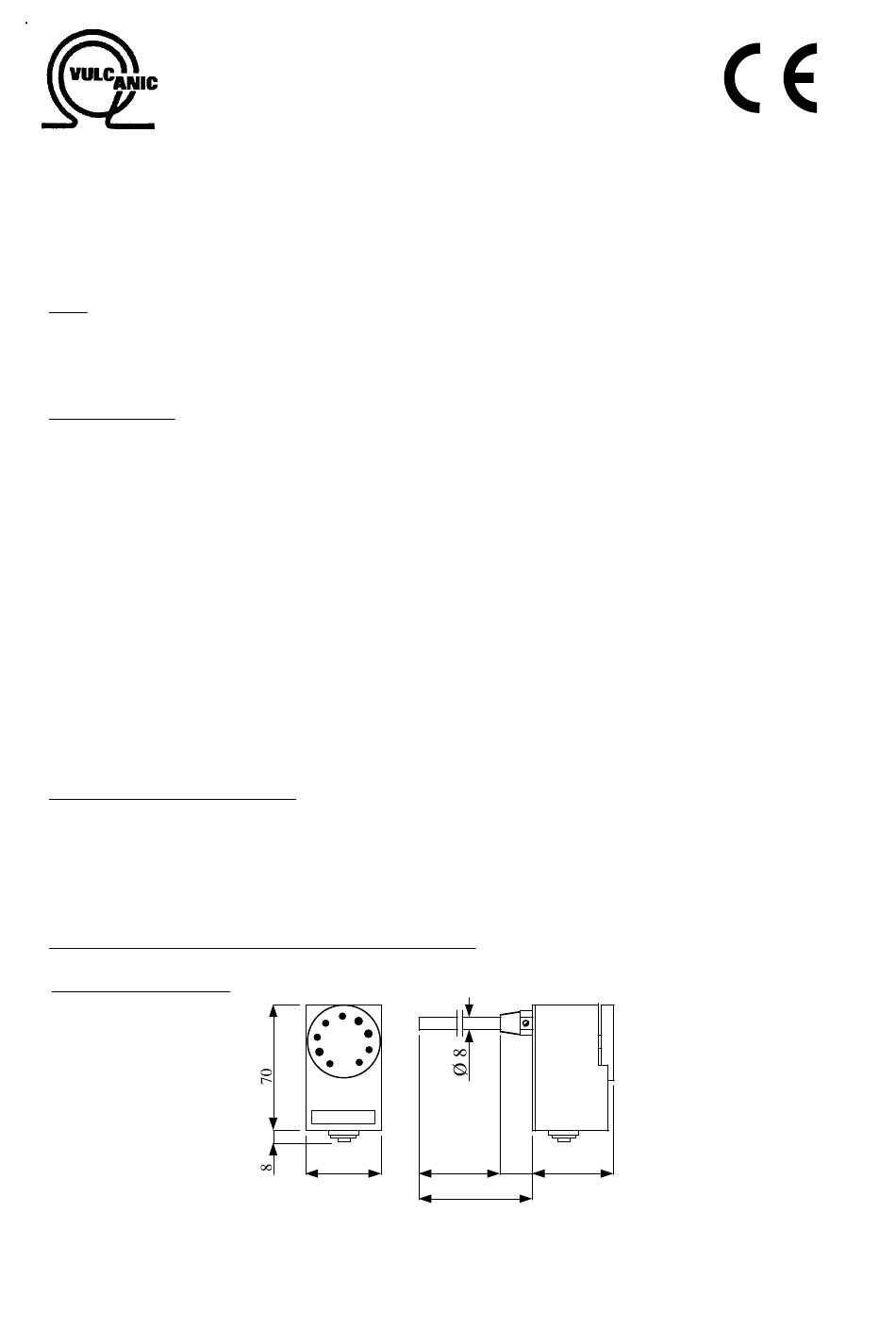

OWNER'S MANUAL

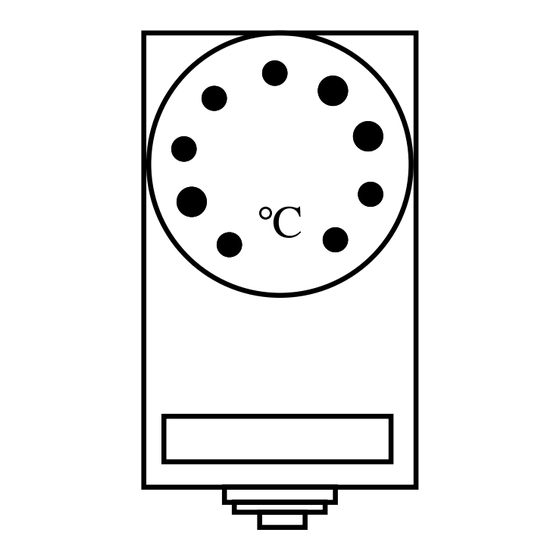

ROD THERMOSTATS
REFERENCE 9030 - 11 AND 9030 - 12
°C
40
25
95
42
120
UT 9030 - 11/12 A - Issued 12/01/96
1/2

Advertisement

loading
Need help?

Need help?

Do you have a question about the 9030-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VULCANIC 9030-11

  • Page 1 - Load temperature range: reference 9030-11 : 10 - 90°C, maximum admissible temperature on the bulb : 120°C, reference 9030-12 : 40 - 120°C, maximum admissible temperature on the bulb: 150°C. - Adjustment of temperature set value by indexed button.
  • Page 2 4 - 2 - ELECTRICAL CONNECTION : Remove the box lid after removing the control knob and unscrewing the screw. Follow the diagram below, paying particular attention to the terminal numbers : Cut-out by rise in temperature Common Cut-out by fall in temperature Do not omit to connect the earth terminal to the earth point.
