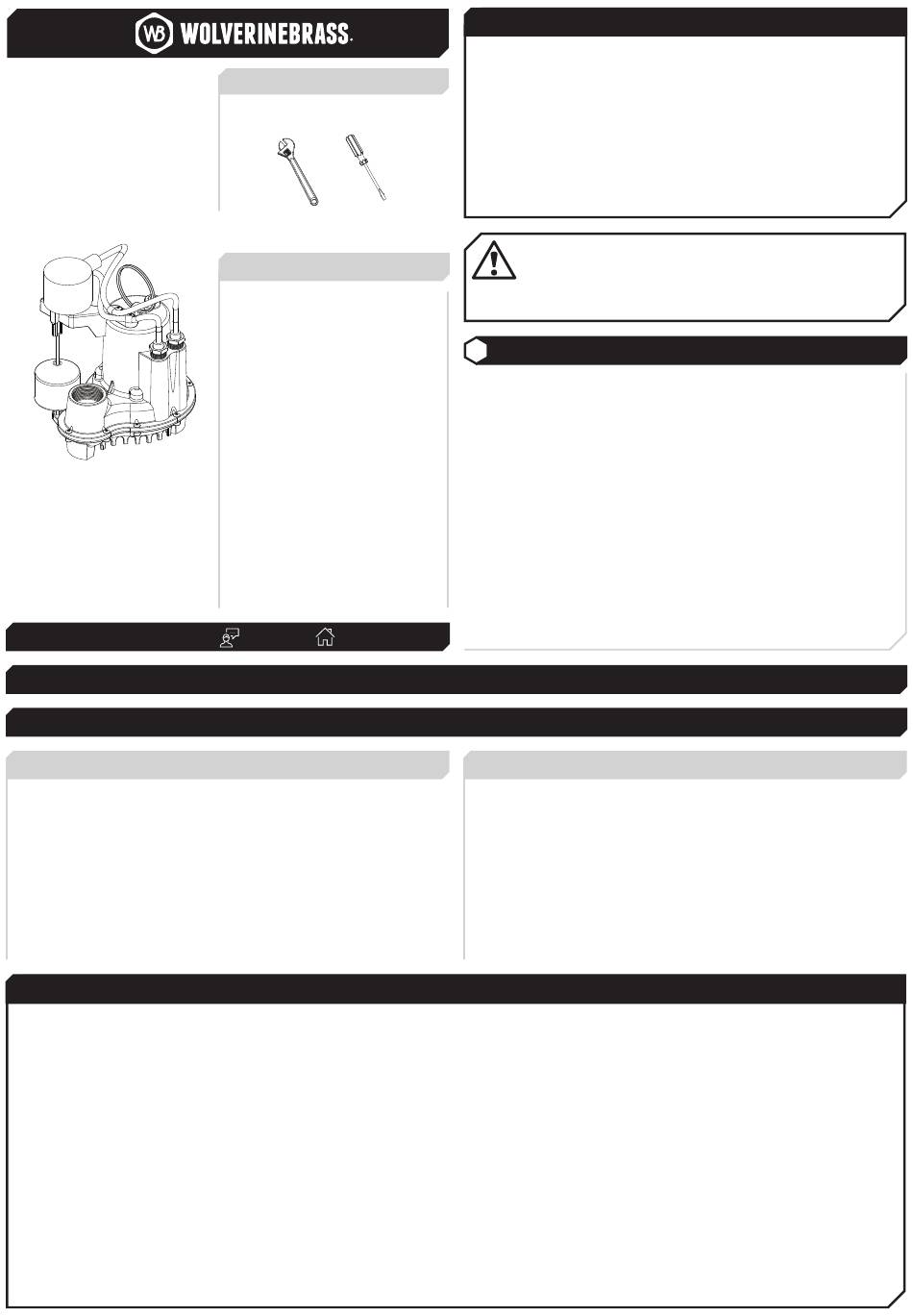

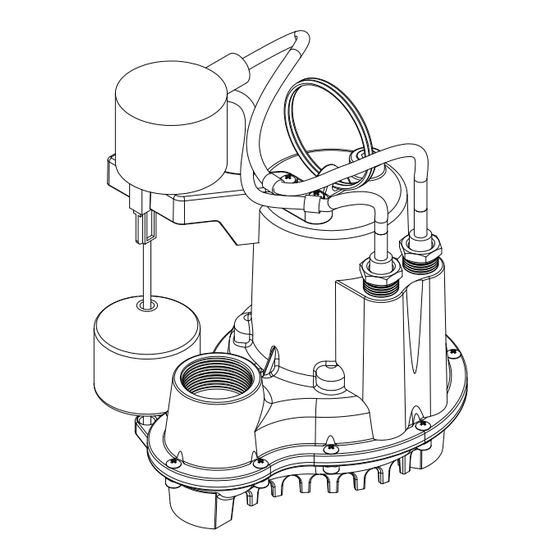

Wolverine Brass Beast 2.0 Installation Instructions

Installation Instructions
80747
1/2 hp Sump Pump
92-80747-01
WARRANTY:
PRODUCT DEFECTS COVERED 12 MONTHS FROM
DATE OF PURCHASE.
RECEIPT AND PRODUCT DATE CODE REQUIRED FOR
WARRANTY CLAIM.
NEED HELP?
For additional assistance or service please contact:
INSTRUCTIONS PERTAINING TO RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS
CAUTION
• DO NOT connect to any voltage other than that listed on the nameplate.
• DO NOT use in water over 104˚F (40˚C).
• DO NOT modify the pump in any way.
• DO NOT expose pump or discharge to freezing temperatures.
• DO NOT use this product to pump salt water or brine. Use with salt water or brine will void the warranty. Pump
water only.
• The sump pit must be a minimum of 12" diameter x 10" depth for Vertical switch models usage.
Do keep the pump inlet screen clear.
• The pump MUST be placed on a solid foundation, such as a brick, stone, or other flat heavy surface. Do
not place the pump directly on the ground in sandy or rocky surfaces. Earth, sand, or gravel that enters the pump
would damage the impeller of the sump and cause flooding. Sand or mud-choked pumps can be back-flushed clean.
• Extended usage of the pump in a partially submerged or non-submerged situation may cause the pump to overheat
due to lack of heat dissipation from the water. If this occurs, the pump will shut itself off until the motor cools to its
normal temperature. Repeated overheating may cause damage to the pump.
Issue: Pump does not run.
Cause:
• Circuit breaker or fuse has tripped.
• Water level in sump has not reached turn-on level as indicated in installation drawing.
• Float may be stuck. It should operate freely in basin.
Issue: Pump runs but does not deliver water.
Cause:
• Check valve is installed backwards.
Arrow on valve should point in direction of flow.
• Discharge shut-off valve (if used) may be closed.
• Impeller or volute openings are fully or partially clogged.
Remove pump and clean.
• Pump is air-locked. Start and stop several times by plugging and unplugging cord. Check for
clogged vent hole in pump case.
• Inlet holes in pump base are clogged. Remove pump and clean the openings.
• Vertical pumping distance is too high. Reduce distance or change the discharge fittings of the pump.
Issue: Pump runs and pumps out sump, but does not stop.
Cause:
• Float is stuck in up position. Be sure float operates freely in basin.
• Defective float switch. Replace with float switch.
TOOLS AND SUPPLIES NEEDED
Adjustable Flat Tip
Wrench Screwdriver
IMPORTANT
• Be sure to read instructions thoroughly before
beginning installation.
• Inspect all connections after installation.
SAFETY TIPS:
• SHOCK HAZARD: Turn off electric power at fuse
box or circuit breaker.
• Cover your drain to prevent loss of parts.
• Be sure to wear eye protection while cutting pipe.
MAINTENANCE:
Your new Wolverine Brass Product is designed for years
of trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. Avoid abrasive
cleaners, steel wool, and harsh chemicals as these will
dull the finish and void your warranty.
www.wolverinebrass.com
800-944-9292
IMPORTANT SAFETY INSTRUCTIONS
TROUBLESHOOTING
OVERLOAD PROTECTION
This pump series has a built in thermal protection switch.
The pump stops if an overload condition occurs. The pump
motor will restart automatically after it has cooled down for
3 to 10 minutes.
CALIFORNIA PROPOSITION 65:
WARNING: This product can expose you to chemicals including lead, which is known to
the State of California to cause cancer and birth defects or other reproductive harm. For
more information go to www. P65Warnings.ca.gov.
Wash hands after installation, repair, or removal of this product.
1
Before use, read the following
instructions carefully.
Closely following these
instructions will eliminate
potential operating problems,
assuring years of
trouble-free service.
WARNING
• Risk of electric shock. The pump is supplied with a grounding conductor and grounding-type attachment plug. To
reduce the risk of electric shock, install only on a circuit protected by ground-fault circuit-interrupter. Always disconnect
the pump from the power source before handling or making adjustments. Always wear rubber boots when servicing in
wet areas. Make sure the pump power source is a separately fused, grounded 3-wire type receptacle of 15-amp
capacity. DO NOT REMOVE GROUND PRONG OR PLUG. DO NOT USE AN EXTENSION CORD. Check to
make sure installation is in accordance with the National Electric Code and all applicable local codes. Installation and
servicing are to be conducted by qualified personnel.
• DO NOT pump flammable liquids.
• DO NOT use around explosive materials.
• DO NOT handle unit with wet hands or while standing in water.
• DO NOT lift the pump by the power cord.
• DO NOT handle or carry the pump by the power cord. Use the handle, or rope.
Issue: Pump runs but delivers only a small amount of water.
Cause:
• Pump is air-locked. Start and stop several times by plugging and unplugging cord. Check for
clogged vent hole in pump case.
• Impeller or volute openings are fully or partially clogged.
Remove pump and clean.
• Pump impeller is partially clogged with tar or paint, causing motor to run slow and overload.
Remove pump and clean.
Issue: Circuit breaker trips or fuse blows when pump starts.
Cause:
• Pump impeller is partially clogged with tar or paint, causing motor to run slow and overload.
Remove pump and clean.
• Motor stator may be defective.
• Check that circuit breaker or fuse is rated for at least 15 amps.
• Impeller or volute opening are fully or partially clogged.
Remove pump and clean.
