Summary of Contents for Honda Civic Hybrid 2025

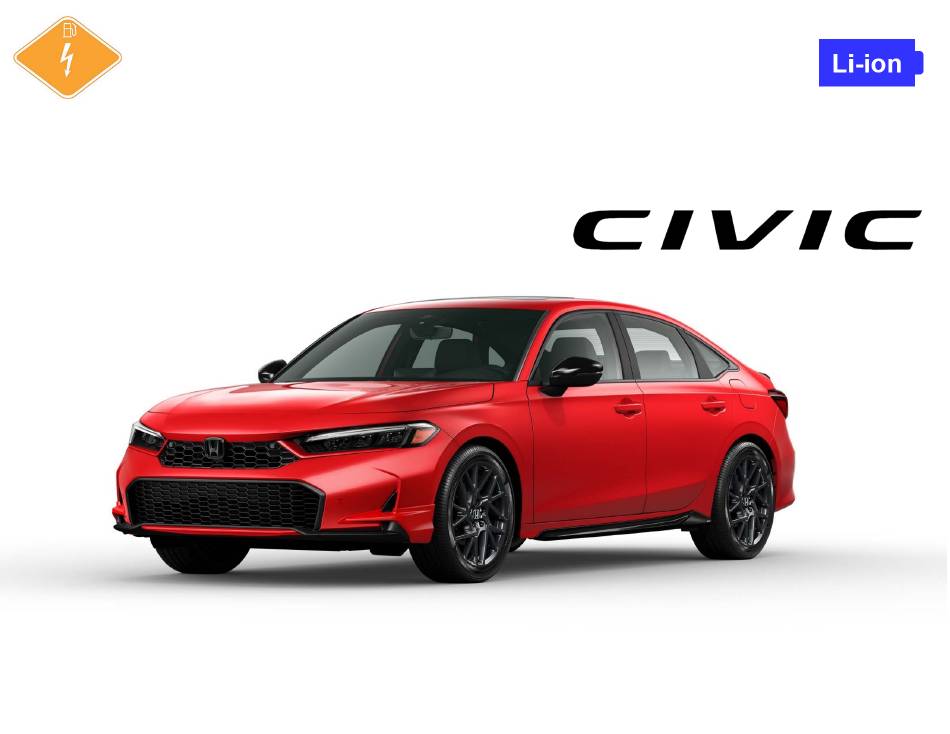

- Page 1 Information for First & Second Responders Emergency Response Guide For Vehicle:: 2025 Civic Hybrid Hybrid Vehicle Version 1 © 2024 American Honda Motor Co., Inc. – All Rights Reserved. 26065 (2406)
- Page 2 Introduction This guide has been prepared to assist emergency response professionals in identifying a 2025 Honda Civic Hybrid vehicle and safely respond to incidents involving this vehicle. Copies of this guide and other emergency response guides are available for reference or downloading at https://techinfo.honda.com.
-
Page 3: Table Of Contents
Contents Contents 1. Identification / Recognition Page 04 2. Immobilization / Stabilization / Lifting Page 10 3. Disable Direct Hazards / Safety Regulations Page 14 4. Access to the Occupants Page 17 5. Stored Energy / Liquids / Gases / Solids Page 21 6. -
Page 4: Identification / Recognition
1. Identification / Recognition Body Type The Civic Hybrid comes in two variations, a 4-door or 5-door model. 4-Door Model 5-Door Model Page 4 of 43... - Page 5 1. Identification / Recognition By Emblem The Civic Hybrid can be identified by the 5-Door Model Hybrid emblem mounted on the trunk (4-door models) or the tailgate (5-door models). 4-Door Model Page 5 of 43...
- Page 6 1. Identification / Recognition By Emblem The Civic Hybrid can also be identified by inspecting the VIN at the three locations shown below. VIN plate located on the lower-right corner of the front windshield Characters 4 thru 5 of the VIN will show either: (4-Door) or a (5-Door) ***FE4******000001...
-
Page 7: Warning Labels
1. Identification / Recognition Warning Labels Emission Control Information & Air Conditioning Information Engine Coolant Information 12-Volt Battery Caution Support Rod Warning Radiator Cap Danger Page 7 of 43... - Page 8 1. Identification / Recognition Warning Labels (continued) High-Voltage Battery High-Voltage Caution Disposal Information Power Control Unit Caution High-Voltage Battery Caution Expansion Tank Cap Danger For electric powertrain cooling system Page 8 of 43...
- Page 9 1. Identification / Recognition High-Voltage Battery Location The high-voltage battery is a 72 cell (2 modules), Li-ion battery that is mounted under the rear seats with an output of 262-volts. Battery Module (Inside) Page 9 of 43...
-
Page 10: Immobilization / Stabilization / Lifting
2. Immobilization / Stabilization / Lifting How to Determine if Vehicle is in ON / OFF Mode Check the POWER button and the gauges for the vehicle status. Vehicle is OFF Vehicle is Ready to Drive The power to all electrical components is turned off. The READY indicator is shown on the gauge. -
Page 11: Parking The Vehicle
2. Immobilization / Stabilization / Lifting Parking the Vehicle Applying the Parking Brake • Block the wheels if the 12-volt battery power is NOT available. • The parking brake cannot be applied or released if the 12-volt battery is not available. To Apply The electric parking brake can be applied any time the vehicle has battery, no matter which position the power mode is in. - Page 12 2. Immobilization / Stabilization / Lifting Parking the Vehicle Shifting the Vehicle into Park or Neutral 1. Press the POWER button twice to turn the vehicle ON. NOTE: This action will not turn the engine/hybrid system on. 2. Press and hold the brake pedal, press the release button, then shift to the P position on the Gear Selector to shift the transmission to Park, or N to shift the transmission to Neutral.
-
Page 13: Lifting The Vehicle
2. Immobilization / Stabilization / Lifting Lifting the Vehicle Use the indicted lifting points to raise the vehicle. Front Lifting Point (If Necessary) Floor Jack Lifting Points Front Tow Hook 5-Door Models Recommended Lifting Points 4-Door Models Page 13 of 43... -
Page 14: Preventing Current Flow Through The High-Voltage Cables
3. Disable Direct Hazards / Safety Regulations Preventing Current Flow Through the High-Voltage Cables Preventing Current Flow Through the High-Voltage Cables Before attempting to rescue occupants or move a damaged Civic Hybrid, you should reduce the potential of current flowing from the electric motor or the high-voltage battery through the high-voltage cables. - Page 15 3. Disable Direct Hazards / Safety Regulations ALTERNATIVE BEST METHOD for High-Voltage Shutdown Locate and cut the negative 12-volt battery cable and the Power Control Unit (PCU) cable in the engine compartment. Cutting both the negative 12-volt battery cable and PCU cable immediately turns off and shuts down the high-voltage system controllers and engine, preventing current flow into the high-voltage cables.
- Page 16 3. Disable Direct Hazards / Safety Regulations ALTERNATIVE BEST METHOD for High-Voltage Shutdown (continued) 4. Locate the two cut point labels as shown, and cut them. If touching high-voltage cables and/or other high-voltage components is unavoidable, personal protective equipment (insulating gloves, goggles, and boots) should always be worn.
-
Page 17: Access To The Occupants
4. Access to Occupants High-Strength and Ultra-High-Strength Steel The body of the Civic Hybrid is made of high-strength steel and ultra-high-strength steel indicated in the colored areas. NOTE: Non-hybrid model shown. Hybrid model similar Page 17 of 43... - Page 18 4. Access to Occupants High-Strength and Ultra-High-Strength Steel The body of the Civic Hybrid is made of high-strength steel and ultra-high-strength steel indicated in the colored areas. NOTE: Non-hybrid model shown. Hybrid model similar Page 18 of 43...
-
Page 19: Extricating Occupants
4. Access to Occupants Extricating Occupants If you need to cut the hood to open it, be sure to stay within the cut zone as shown. CUT ZONE When cutting the vehicle body, personal protective equipment (insulating gloves, goggles, and boots) should always be worn. Side Curtain Airbag Inflator If you need to cut the vehicle body or use Jaws-of-Life equipment to remove occupants, be sure to stay within the cut... - Page 20 4. Access to Occupants Moving the Seats, Head Restraints & Steering Wheel Power Seats Adjustment Head Rest Adjustment To raise the head restraint: Pull it upward. To lower the head restraint: Push down while pressing the release button. Manual Seats Adjustment Steering Column Adjustment Pull the steering wheel adjustment lever down.
-
Page 21: Stored Energy / Liquids / Gases / Solids
5. Stored Energy / Liquids / Gases / Solids Type Capacity Content Dangers 12-Volt Battery Lead 34% Lead Peroxide 31% 12 V－45 Ah/20 HR (12 V－36 Ah/5 HR) Lead Sulfate 1% Sulfuric Acid (35%) 34% Lithium-Ion, •... - Page 22 5. Stored Energy / Liquids / Gases / Solids Type Capacity Content Dangers • Lubricating base stocks 80-90% Transmission Fluid 2.3 US qt (2.2 L) Not provided on SDS • 2,6 Di-tert-butyl-p-cresol <0.1 to 1.0% • Diethylene Glycol Less than 10% •...
-
Page 23: In Case Of Fire
6. In Case of Fire Fire Extinguishing Methods In case of a vehicle high-voltage battery fire, the fire should be extinguished using the following procedure if possible. If touching high-voltage cables and/or other high-voltage components is unavoidable, personal protective equipment (insulating gloves, goggles, and boots) should always be worn. -
Page 24: In Case Of Submersion
7. In Case of Submersion Submerged Vehicle If a Civic Hybrid is submerged or partly submerged in water, first pull the vehicle out of the water, then shut down the high-voltage system. See Section 3 (Disable Direct Hazards / Safety Regulations for the high-voltage shutdown procedures. If touching high-voltage cables and/or other high-voltage components is unavoidable, personal protective equipment (insulating gloves, goggles, and boots) should always be worn. -
Page 25: Towing / Transportation / Storage
8. Towing / Transportation / Storage Shifting the Vehicle into Neutral If the 12-volt battery power available Image 1 Refer to page 12, Parking the Vehicle to turn the vehicle to the ON mode and follow the instructions to get the vehicle into neutral. - Page 26 8. Towing / Transportation / Storage Emergency Towing The preferred method for emergency towing is to use a flat-bed tow truck. If wheel lift equipment must be used, be sure to suspend the front wheels and release the parking brake. DO NOT use cable-type tow equipment. NOTE: If there is a 12-volt power failure, the vehicle cannot be shifted into neutral.
- Page 27 8. Towing / Transportation / Storage Lifting the Vehicle Use the indicted lifting points to raise the vehicle. Front Lifting Point (If Necessary) Floor Jack Lifting Points Front Tow Hook 5-Door Models Recommended Lifting Points 4-Door Models Page 27 of 43...
-
Page 28: Securing The Vehicle
8. Towing / Transportation / Storage Securing the Vehicle The recommended tie-down locations for securing the vehicle are indicated below. Four tie-down slots (covered by rubber plugs) - Two behind the front wheels and two in front of the rear wheels Tie-Down Slots Rubber Plug Page 28 of 43... -
Page 29: Dimensions And Weight
8. Towing / Transportation / Storage Dimensions & Weight 4-Door Model 5-Door Model Wheelbase (in.) 107.7 Wheelbase (in.) 107.7 Length (in.) 184.0 Length (in.) 179.0 Height (in.) 55.7 Height (in.) 55.7 Width (in.) 70.9 Width (in.) 70.9 Page 29 of 43... -
Page 30: Storing The Vehicle
8. Towing / Transportation / Storage Storing the Vehicle The damaged vehicle can be stored in either Open Perimeter Isolation or Barrier Isolation. Open Perimeter Isolation Store the vehicle in an outdoor area separated from all combustibles and structures by a minimum distance of 50 feet (15.2 m) from all sides. NOTE: Accord Hybrid model shown. - Page 31 8. Towing / Transportation / Storage High-Voltage Battery Access See Section 8 (Battery Discharging) for procedures to remove the rear seat and turning off the high-voltage service plug. NOTE: In the event of an emergency, remove the seat cushion with extrication equipments as necessary. Reference Only VEHICLE INTERIOR –...
-
Page 32: Battery Discharging
8. Towing / Transportation / Storage Battery Discharging If the high-voltage battery is severely damaged or burned, or the vehicle has been submerged, and water has entered and accumulated on the floor of passenger compartment, the battery must be discharged. Failure to discharge stored or stranded energy remaining in the battery may result in a fire or re-ignition due to damage or short circuit. - Page 33 8. Towing / Transportation / Storage Battery Discharging (Continued) 5. Remove the rear seat cushion. 6. Remove the service plug cover 10 mm bolts, then remove the service plug cover. 7. Push and slide the tab on the service plug until you hear a click. Continued on the next page.
- Page 34 8. Towing / Transportation / Storage Battery Discharging (Continued) 8. Raise the lever and remove the service plug. 9. Set up a pool approximately 18 feet long x 9 feet wide x 3 feet high in a well-ventilated outdoor area. 10.
- Page 35 8. Towing / Transportation / Storage Battery Discharging (Continued) 11. Fill the pool with water from a fire hydrant, well water, or pond water until the high voltage battery is completely submerged. If there is a risk of water leakage from the pool, place a thick plastic sheet under the pool. Never use seawater or any water containing salt.
-
Page 36: Important Additional Information
9. Important Additional Information Lithium-Ion Battery Fumes or Fire A damaged high-voltage lithium-ion battery can emit toxic fumes, and the organic solvent used as electrolyte is flammable and corrosive. Responders should wear appropriate personal protective equipment. Even after a lithium-ion battery fire appears to have been extinguished, a renewed or delayed fire can occur. - Page 37 9. Important Additional Information Seat Belts and Airbags The Civic Hybrid is equipped with lap/shoulder belts in all seating positions. The front seat belts are equipped with pyrotechnically activated tensioners that help tighten the seat belt in a sufficient crash. In addition, the Civic Hybrid is equipped with the following airbags: •...
- Page 38 When responding to an incident involving a Civic Hybrid, we recommend that emergency personnel follow their organization’s standard operating procedures for assessing and dealing with vehicle emergencies. Honda recommends that responders follow the procedures in this guide to avoid potentially lethal shock from high voltage. NOTE: Accord Hybrid model shown...
- Page 39 Dealer Inspection and Repair A damaged Civic Hybrid should be taken to an authorized Honda dealer for a thorough inspection and repairs. For questions or to locate an authorized Honda dealer, please contact your local Honda dealer or Honda Automobile Customer Service at (800) 999-1009.
- Page 40 9. Important Additional Information Components High-Voltage Components 12-Volt Battery Components Fuel Tank Reinforcement Seat Belt Pretensioners NOTE: Accord Hybrid model shown. Civic Hybrid similar Page 40 of 43...
-
Page 41: Explanation Of Pictograms Used
10.10.10. 10.010. Explanation of Pictograms Used Pictogram Name Pictogram Name Hood release/opener control High-voltage battery pack Tailgate/cargo area opener control High-voltage component Power switch High-voltage power cable Keyless operation key distance Fuel tank (gasoline) Fuse box disabling high-voltage Air-conditioning component Cable to cut to disconnect high-voltage General warning High-voltage service plug... - Page 42 This guide has been prepared to assist emergency response professionals in identifying a 2025 Honda Civic Hybrid vehicle and safely respond to incidents involving this vehicle. Copies of this guide and other emergency response guides are available for reference or downloading at https://techinfo.honda.com.
- Page 43 Page 43 of 43 © 2024 American Honda Motor Co., Inc. – All Rights Reserved. 2025 Honda Civic Hybrid Emergency Response Guide...
