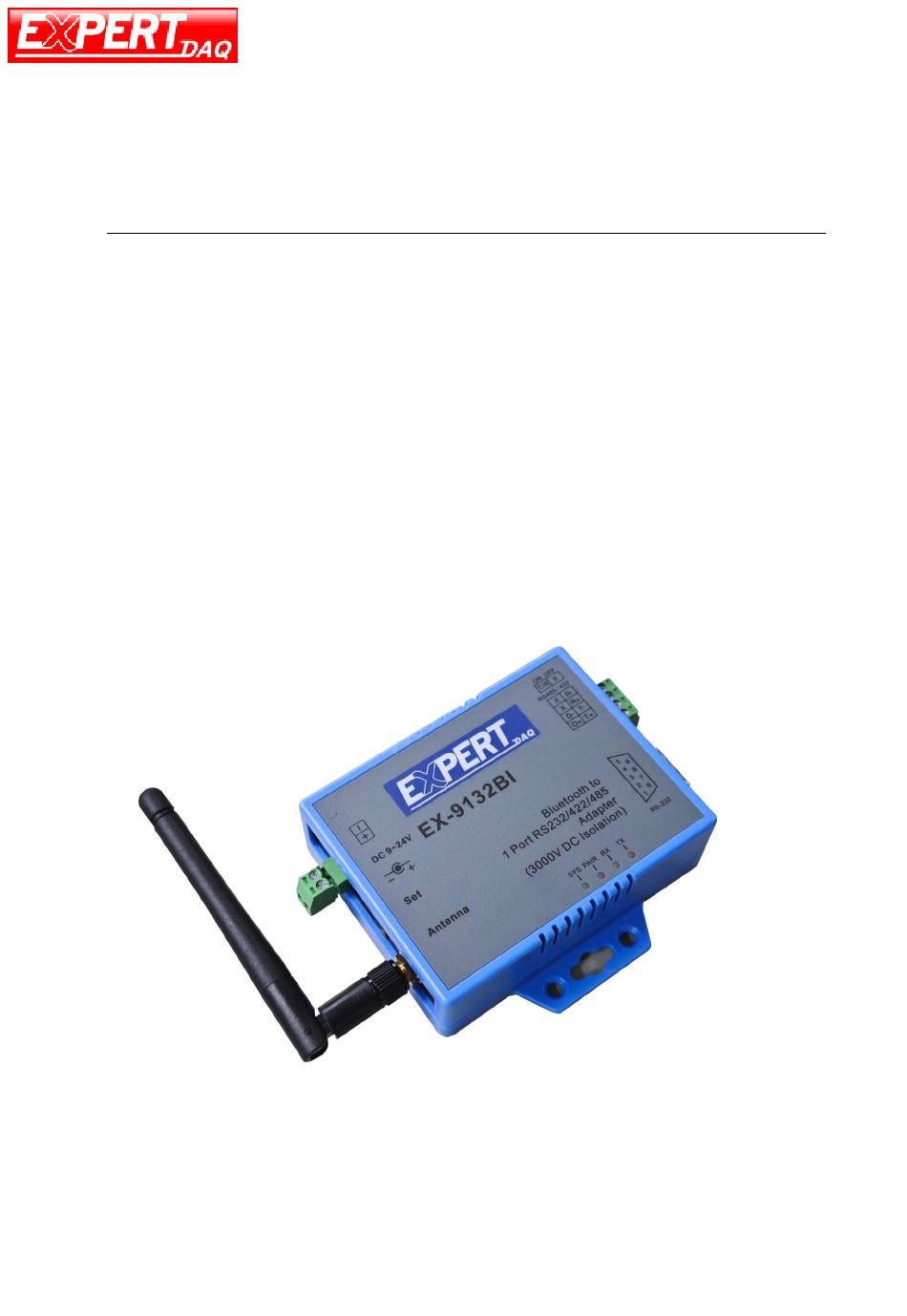

- Page 1 EX-9132BI(5.0) Manual Bluetooth to RS-232&RS422/485 EX-9132BI(5.0) Bluetooth Adapter Operation Manual First Edition, Dec 2023...
- Page 2 EX-9132BI(5.0) Manual The EX9132BI(5.0) with Bluetooth 5.0 LE version is good performance in 2 units paring as Master and Salve. If it is used as Salve for paring with Mobile Phone or Pad, please refer the descriptions in Config Tool “Bonding Enable” chapter. For EX9132BI(5.0) as Salve paring with Mobile Phone or Pad, we strongly recommend to pair EX9132BI(5.0) with Mobile Phone or Pad via APP (such as “nRF UART”...
- Page 3 EX-9132BI(5.0) Manual 4. When the Config Tool window pops up, ensure EX9132BI(5.0) has been set into Configuration mode. Clicking “Com Port” dropdown button to select the right Com Port which is connected with EX9132BI(5.0). Be careful to check the Com port not to be occupied by other Utility. Click “Connect”...
-
Page 4: Configuration Settings
EX-9132BI(5.0) Manual 6. Configuration settings: 6.1 Device Name: as per default or to be modified. 6.2 Local Address: ID of this device is modifiable. 6.3 Peer Address: manually input the ID (address) of another device for paring. 6.4 Config Password: input password for opening this Config Tool. Bonding Enable: 6.5.1 Pairing Mobile Phone or Pad with EX9132BI(5.0) Slave: 6.5.1.1 “Bonding Enable”... - Page 5 EX-9132BI(5.0) Manual This is way is more security in link of Master and Slave. Once a Master or Slave was set to Configuration mode, then back to Transparent mode, another pairing device should do the same procedure otherwise will not restore linking. 6.5.2.2 For “Bonding Enable”...
- Page 6 EX-9132BI(5.0) Manual 8.2 If Master had linked with a Slave previously, the Master is still able to link with Slave though Master’s Pin Code changed unless Slave changed Pin Code afterward. It is because of Master still remembered the MAC and UUID of Slave. 8.3 Master and Slave will link after clicking “ReBoot”.
- Page 7 EX-9132BI(5.0) Manual with mobile phone. 11.5 Type some letters on the mobile phone and send it. The TX/RX will appear the letters of sending.
- Page 8 EX-9132BI(5.0) Manual 11.6 If mobile phone not received the letters back via RX but the “Pair” LED still on, please release pairing of EX9132BI(5.0) from mobile phone’s Bluetooth settings page and then run the “nRF UART v2.0” to connect the EX9132BI(5.0) and input pin code again.
