#1055 Multi-Band WSPR Receiver - Quick Guide
Connecting the WSPR Receiver to a computer.

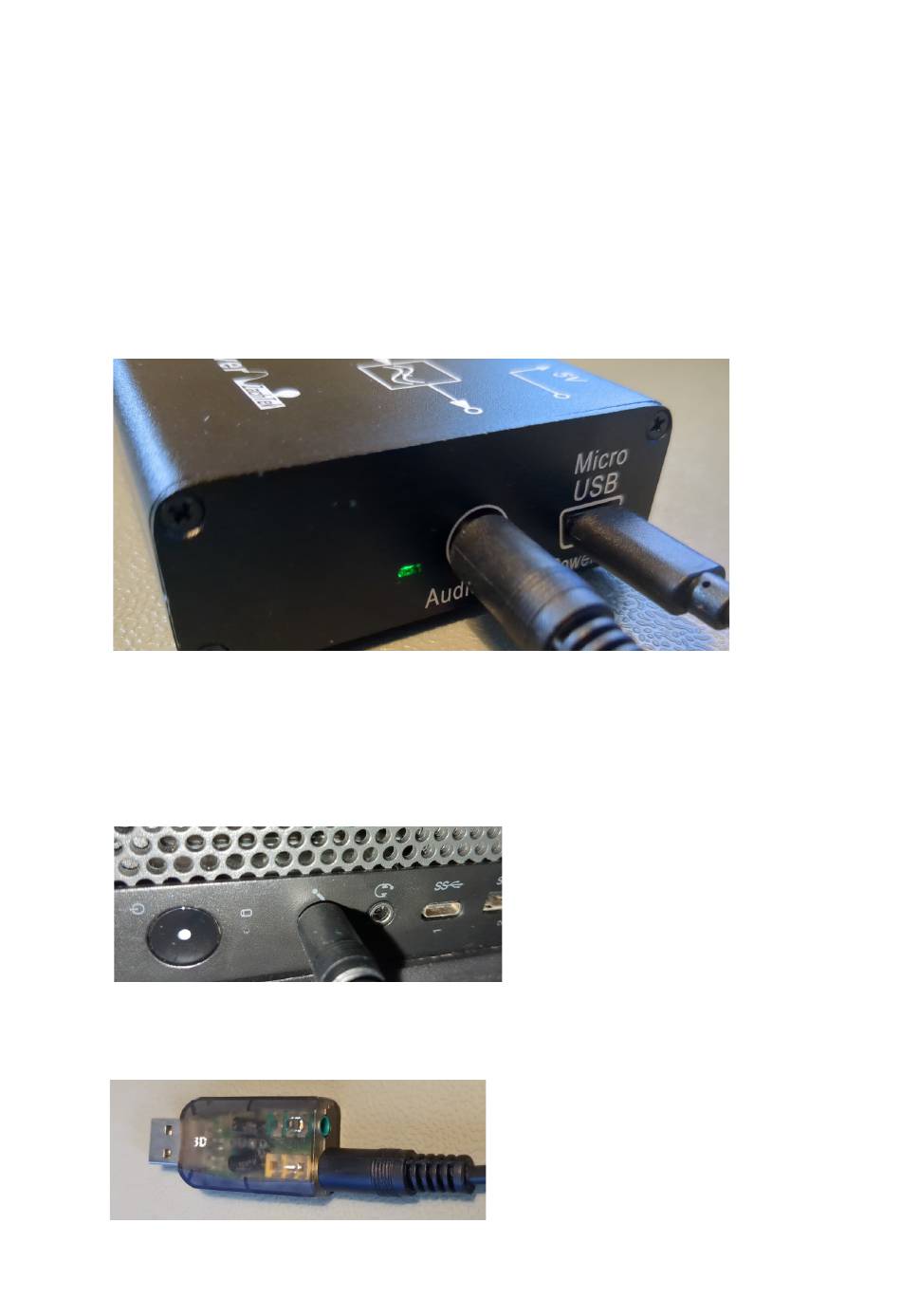

Connect an antenna to the Antenna port on the receiver
1.
Connect the USB cable between the receiver and your
2.
computer.
This cable will both power the receiver and be used to set
the frequency of the receiver.
The green power LED in the receiver should go on as soon
as it is connected to the computer.
Connect the audio cable between the receiver and your
3.
computer.
If there is a microphone or line input on the computer use
that.
If there is no Audio-In port on your computer you can use a
USB Sound card to get the Audio in to the computer.
Page 1
#1055 Quick Guide
Version 1.0
Advertisement
Summary of Contents for ZachTek 1055
- Page 1 #1055 Multi-Band WSPR Receiver - Quick Guide Connecting the WSPR Receiver to a computer. Connect an antenna to the Antenna port on the receiver Connect the USB cable between the receiver and your computer. This cable will both power the receiver and be used to set the frequency of the receiver.
- Page 2 9600. Set the Serial port to one of the available ports in the list. Set the other setting to the default setting or to the same settings shown in the screenshot below. Page 2 #1055 Quick Guide Version 1.0...
- Page 3 Sound input until you find the correct one coming from the receiver. Tell WSJT-X to listen for WSPR signals by using the menu “Mode, WSPR” Make sure the “Monitor” button is green, if not click it once to make it go green. Page 3 #1055 Quick Guide Version 1.0...
- Page 4 If any signals were received it will show up as text in the main windows. Picking what band to receive. You can pick what band to listen to by using the band selector on the left side of WSJT-X Page 4 #1055 Quick Guide Version 1.0...
- Page 5 … and many many other useful things. Page 5 #1055 Quick Guide Version 1.0...
- Page 6 In MS Windows you do it like this: Hold down the Windows Key on the Keyboard and press the R key. In the dialog that pops up write MMSYS.CPL and press Enter or click the OK Key. Page 6 #1055 Quick Guide Version 1.0...
- Page 7 Audio level. Click it once and then click the “Properties” button. In the dialog that pops up you can change the name on the General tab if you want. Page 7 #1055 Quick Guide Version 1.0...
- Page 8 The lower bands like 80m and 40m will be among the strongest especially at night so you might have to tweak the volume level to make sure that the 40m band during the night does not cause clipping of the volume. Page 8 #1055 Quick Guide Version 1.0...
- Page 9 “Windows Drivers” section and click the “Download driver” button. After installation you may need to restart your computer before the device shows up. End Of Document Page 9 #1055 Quick Guide Version 1.0...
