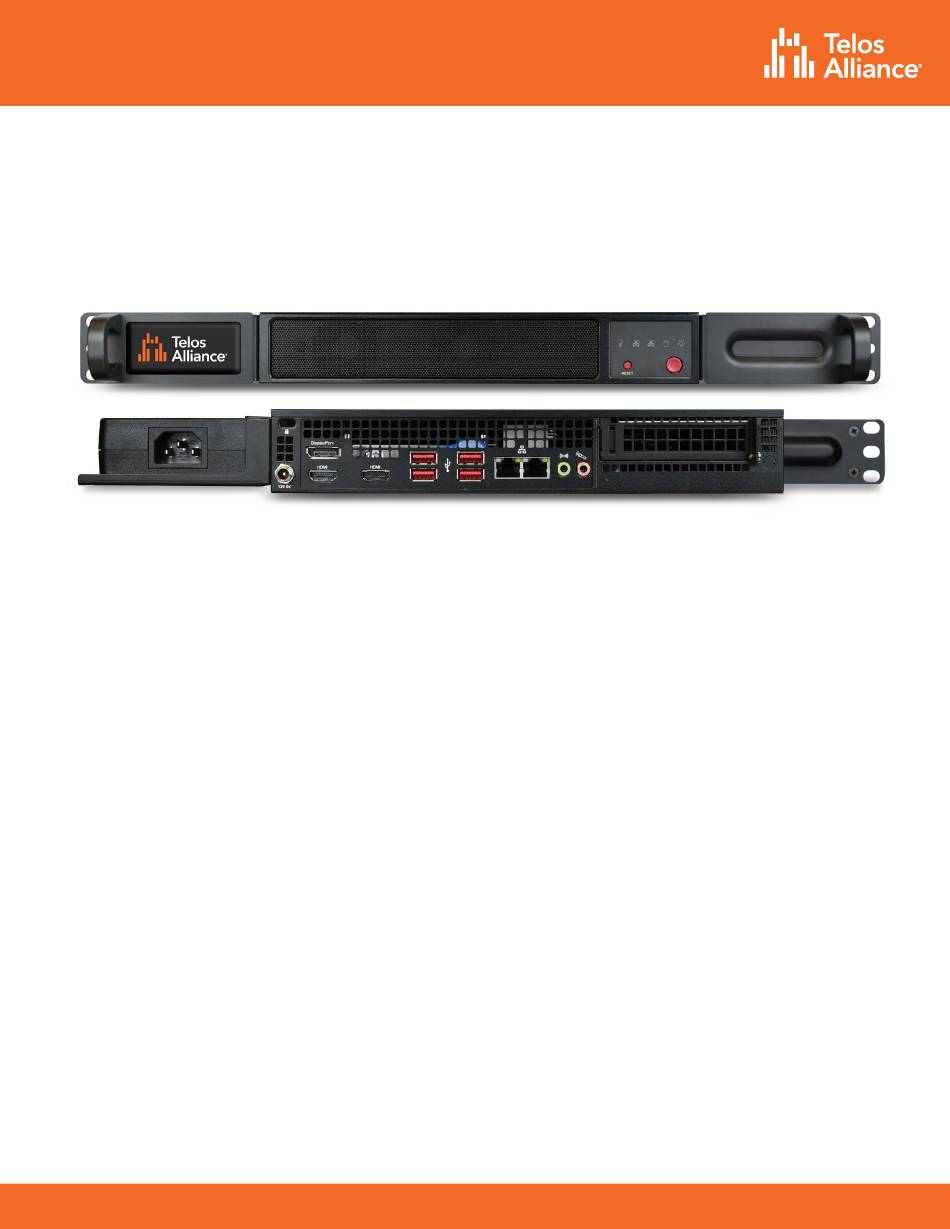

Quick Start Guide
Telos Alliance® AP-3000
Hardware Platform
Thank You for Purchasing the AP-3000
AP-3000 hosts pre-installed container-delivered Telos Alliance products, providing
an alternative to customers who want the benefits of our software-based products
but prefer not to purchase and configure their own server for hosting.
Mounting the Included External
Power Supply
The AP-3000 is rack-mountable using the two included rack ears and a two-part
power adapter shelf bracket.
1. Secure the rack ears to the chassis using the three provided screws on each
side. The rack ear with the Telos Alliance logo is intended to be installed on
the left side of the AP-3000.
2. To install the power adapter bracket, first clip the power adapter into place on
the bracket as shown in the illustration below, then add the retention bracket
using the two provided screws.
3. Mount the power adapter bracket assembly on the right side of the chassis
using the three provided screws.
2024 Telos Alliance®. All Rights Reserved. PN: 1490-00256-001 QUICK START GUIDE: AP-3000
TelosAlliance.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Telos Alliance AP-3000

  • Page 1 1. Secure the rack ears to the chassis using the three provided screws on each side. The rack ear with the Telos Alliance logo is intended to be installed on the left side of the AP-3000.
  • Page 2 AP-3000’s threaded DC input (B), then connect AC power to the power supply’s IEC input (A). • NIC 1 (C) connects the AP-3000 to your AoIP network, and NIC 2 (D) is used for the WAN/internet connection (if configured for dual network use). For detailed network information, please see your AP-3000 configuration sheet.
  • Page 3 Do not remove any containers unless instructed to do so by Telos Alliance support. Additional Support If you need additional help or support with AP-3000, please visit https://www.telosalliance.com/support TelosAlliance.com 2024 Telos Alliance®. All Rights Reserved. PN: 1490-00256-001 QUICK START GUIDE: AP-3000...
  • Page 4 Radio: support@telosalliance.com TV: support@linearacoustic.com 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2024 Telos Alliance®. All Rights Reserved. C24/19130 1490-00256-001 QUICK START GUIDE: AP-3000 TelosAlliance.com TelosAlliance.com 2024 Telos Alliance®. All Rights Reserved. PN: 1490-00256-001 QUICK START GUIDE: AP-3000...
