FEATURES
High precision
⚫
High efficiency
⚫
High output voltage stability
⚫
Linear modulation of output voltage
⚫
Overcurrent protection
⚫
Arc and Short circuit protection
⚫
Digital display for output voltage and current
⚫
OEM Customization Available
⚫
APPLICATIONS
A2UHVACP10KV25MARM, is designed for achieving
AC-DC conversion from AC voltage to high DC voltage
isolated power supply. This series high voltage power
supply is rack-mounted, and is mainly used in ion beam
injection, semiconductor technology, electron beam
welding, capacitor charging, high power radio frequency
transmitter, accelerator, CW laser, high voltage insulation
test, lithography technology, X-ray system, electrostatic
applications, scientific
applications, electrostatic spraying
DESCRIPTION
The power supply comes with high stability, high
reliability, high accuracy of output voltage regulation,
and continuously adjustable output voltage; low time
drift and temperature drift; it adopts modular design
www.analogtechnologies.com
©Copyrights 2000-2024, Analog Technologies, Inc. All Rights Reserved. Updated on 10/16/2024

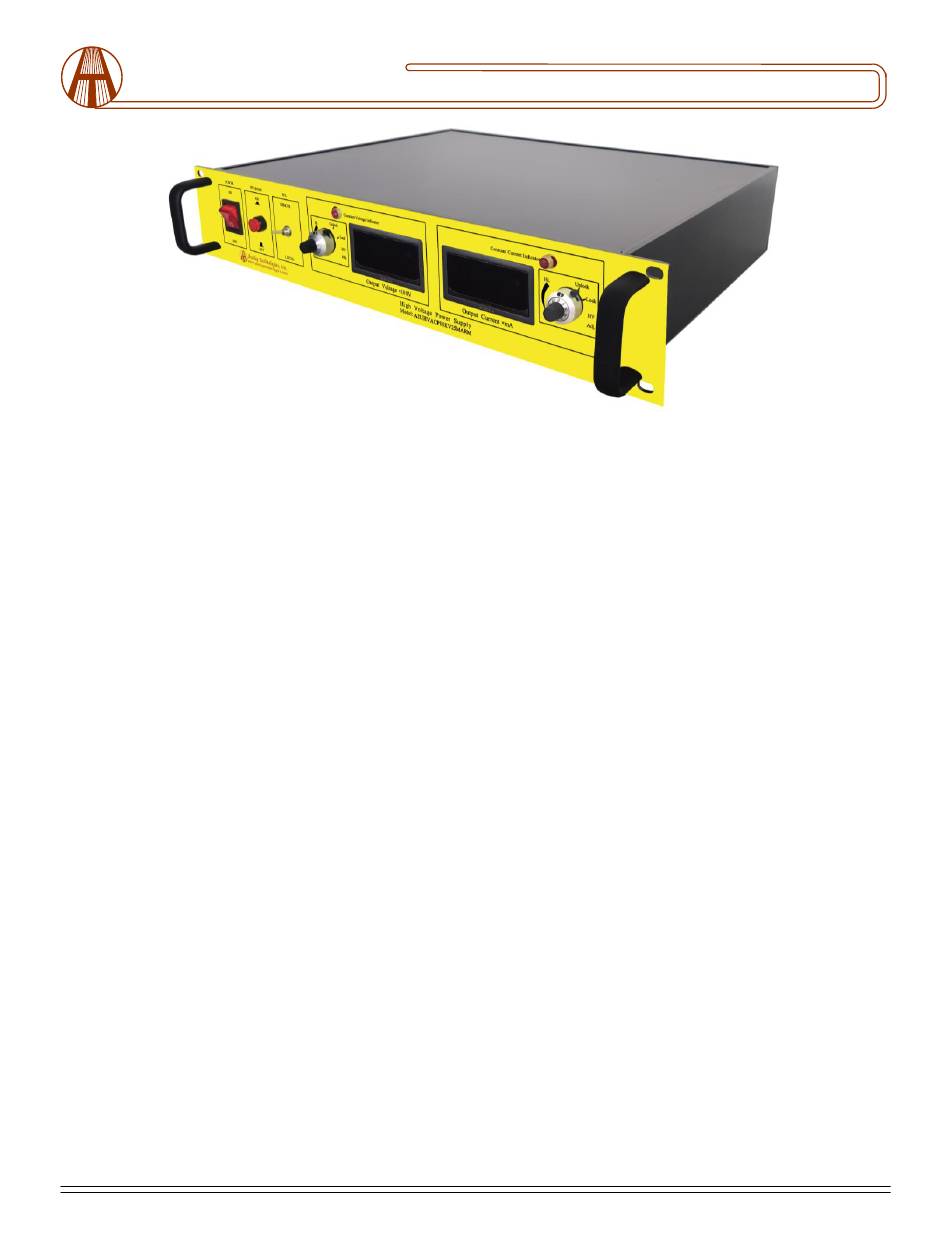

Figure 1. Physical Photo of A2UHVACP10KV25MARM
experiments, industrial
and other fields.
Sales: sales@analogti.com Help Improve Datasheet:
High Voltage Power Supply
A2UHVACP10KV25MARM
inside the power supply, with protection against
overvoltage, overcurrent, and arcing; the control
interface uses industrial interface, with industrial design
from circuit schematic to the overall structure; high
integration and high detection accuracy; it has functions
such as start-up soft-start and control; convenient for
control, easy operation; the internal transformation of
the power supply can be made based on the actual
needs of the customer.
SAFETY PRECAUTIONS
High voltage power supply must be connected to ground
reliably.
Do not touch the high voltage wire, unless the high
voltage power supply is powered off, and the load and
internal capacitors are fully discharged.
When the high voltage power supply is powered off, wait
for another 5 minutes for fully discharging all the
capacitors inside the power supply.
Do not operate the power supply in humid environment,
and do not connect the operator to ground.
The internal protection circuit is provided in the high
voltage power supply, but the high voltage short circuit
shall be avoided.
Make sure the circuit is insulated perfectly, especially
between the high voltage output and the surroundings
so as to avoid electronic shock.
