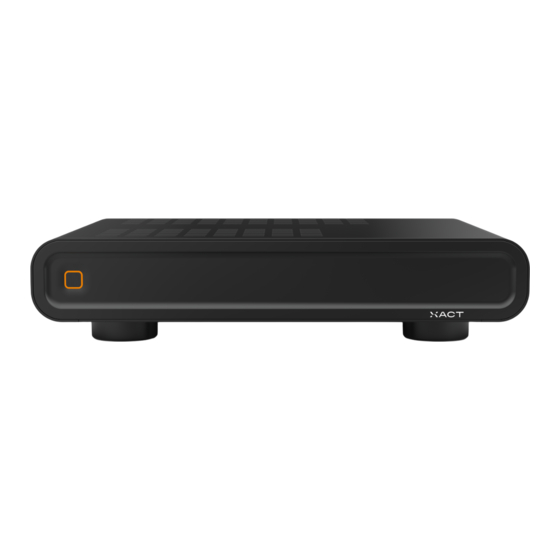

XACT S1/S1 EVO Quick Start Guide
1. Connect Your USB DAC
Connect your USB DAC to the 'DAC' USB port on the XACT S1.
•
USB Audio Outputs:
•
'DAC': The main USB port—recommended for best sound quality.
o
'DAC no 5V': A USB port without a 5V connection.
o
2. Insert the SD Card
Locate the included SD card in its plastic holder inside the box.
•
Insert the SD card into the 'SD CARD (OS)' slot.
•
The XACT OS is loaded from this SD card.
o
Important:
•
The SD card must remain inserted at all times during operation.
o
Remove the SD card only for transportation purposes.
o
If shipping the unit, remove the SD card, place it back in the plastic holder,
§
and pack it securely with the XACT S1.
Advertisement
Summary of Contents for Xact S1
- Page 1 XACT S1/S1 EVO Quick Start Guide 1. Connect Your USB DAC Connect your USB DAC to the 'DAC' USB port on the XACT S1. • USB Audio Outputs: • 'DAC': The main USB port—recommended for best sound quality. 'DAC no 5V': A USB port without a 5V connection.
- Page 2 3. Connect to Your Network Connect a LAN cable from your network to LAN Port 1 on the XACT S1. • Note: • The other LAN ports are used when the XACT S1 is configured as a network switch/router (alternative feature which requires a different OS loaded on the SD card).
- Page 3 Set Up the App: • Ensure the XACT S1 is powered on, connected to your network, and your USB DAC is connected. Open the JPLAY app on your iPhone or iPad. You should see 'XACT S1' listed as an available Audio Output.
- Page 4 § 8. Finalize Setup After Copying Files Restart XACT S1: • If you used Method 1 (network copy), power off and then power on the XACT S1 to initiate indexing of music files. Indexing Music Files: • The XACT femtoServer will index the new files.
- Page 5 Place the XACT S1 in a well-ventilated area. Support: • If you have any questions or encounter issues, please contact our customer support team at contact@xact.audio We hope this guide helps you set up and enjoy your XACT S1. Happy listening! ��...
