138674 Rev 1 (11/21)

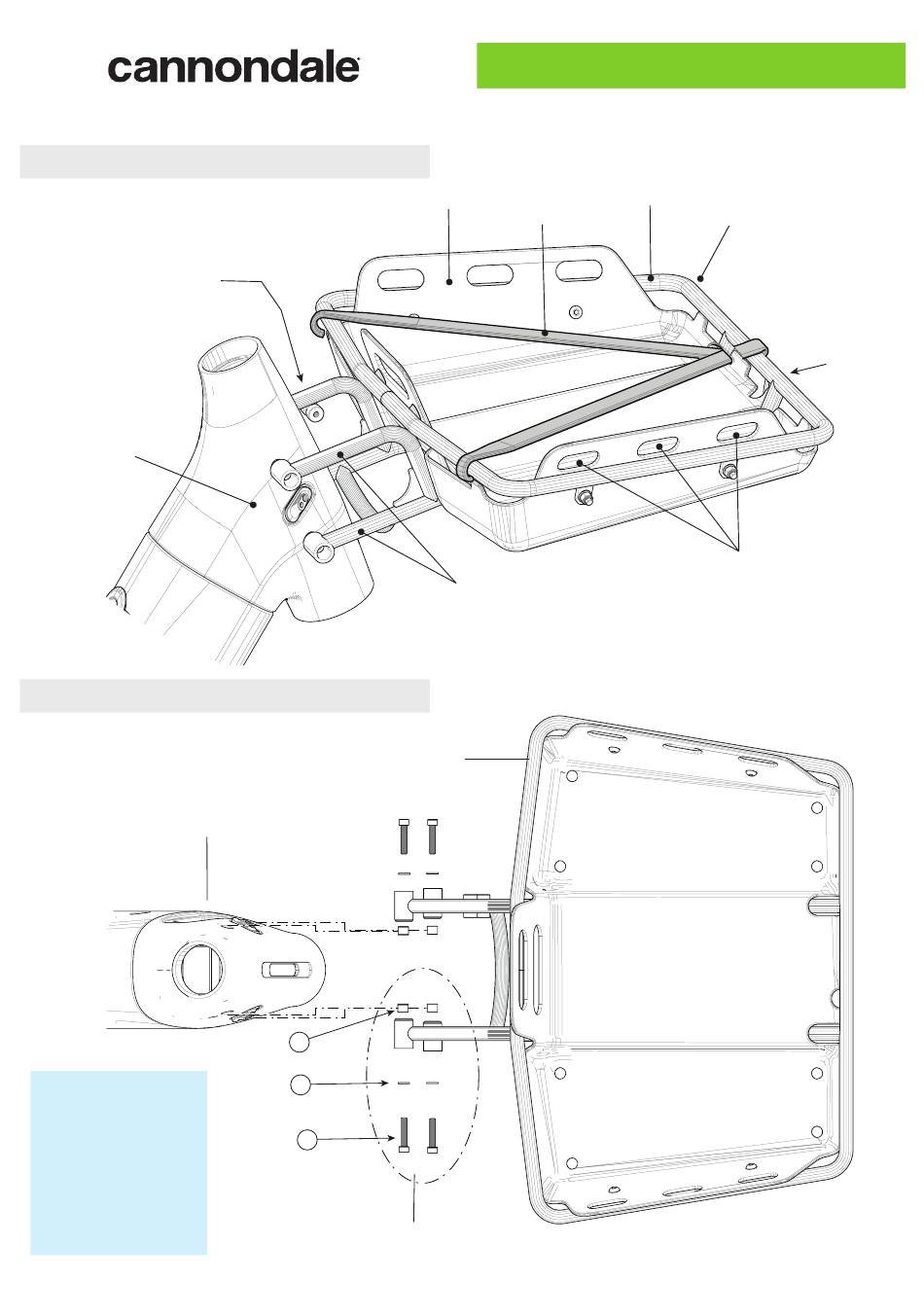

Part Identification
FIG. 1
Water Bottle
Cage Mounts
4-Bolt
Headtube
Installation (Top View)
FIG. 2
Bicycle Headtube
Use a medium-strength
removable thread lock:
Loctite 242 (blue) on bolt
threads.
Tighten with a torque
wrench.
cannondale.com
Platform
Frame Mount Arms
Front Rack Assembly
M5x6
7
M5
4
9
M5x20
Loctite 242 (blue)
6 N·m
Mounting Hardware
Owner's Manual
Brookside Front Rack
Frame
Strap
1 of 4
Strap Hook
Front light
mounting tab
Platform Tie-Dowm
Advertisement
Related Manuals for Cannondale Brookside Front Rack
Summary of Contents for Cannondale Brookside Front Rack
- Page 1 138674 Rev 1 (11/21) 1 of 4 Owner’s Manual Brookside Front Rack Part Identification FIG. 1 Frame Platform Strap Strap Hook Water Bottle Cage Mounts Front light mounting tab 4-Bolt Headtube Platform Tie-Dowm Frame Mount Arms Installation (Top View) Front Rack Assembly FIG.
- Page 2 138674 Rev 1 (11/21) 2 of 4 Brookside Front Rack Installation Steps FIG. 3 1. Remove any pre-installed hardware or bottle cages from the four headtube mounting holes. See Figure 3. 2. Insert four M5x6mm spacers in the gaps between the rack mounts and headtube.
- Page 3 PERIODIC INSPECTION REQUIRED: The rack and frame mounting points must be periodically inspected for damage as part of your routine bicycle maintenance. See “Inspect for Safety” in the Cannondale Bicycle Owner’s Manual for more information. Go to www. cannondale.com.
- Page 4 138674 Rev 1 (11/21) 4 of 4 Brookside Front Rack FIG. 6 6 N·m, Loctite 242 (blue) 3 N·m Part Identification Replacement Part Kits ORDER: SOCKET HEAD CAP SCREW M5 X 20 Description Part Number 9,4,7,3 K13062 Brookside Mounting Hardware...
