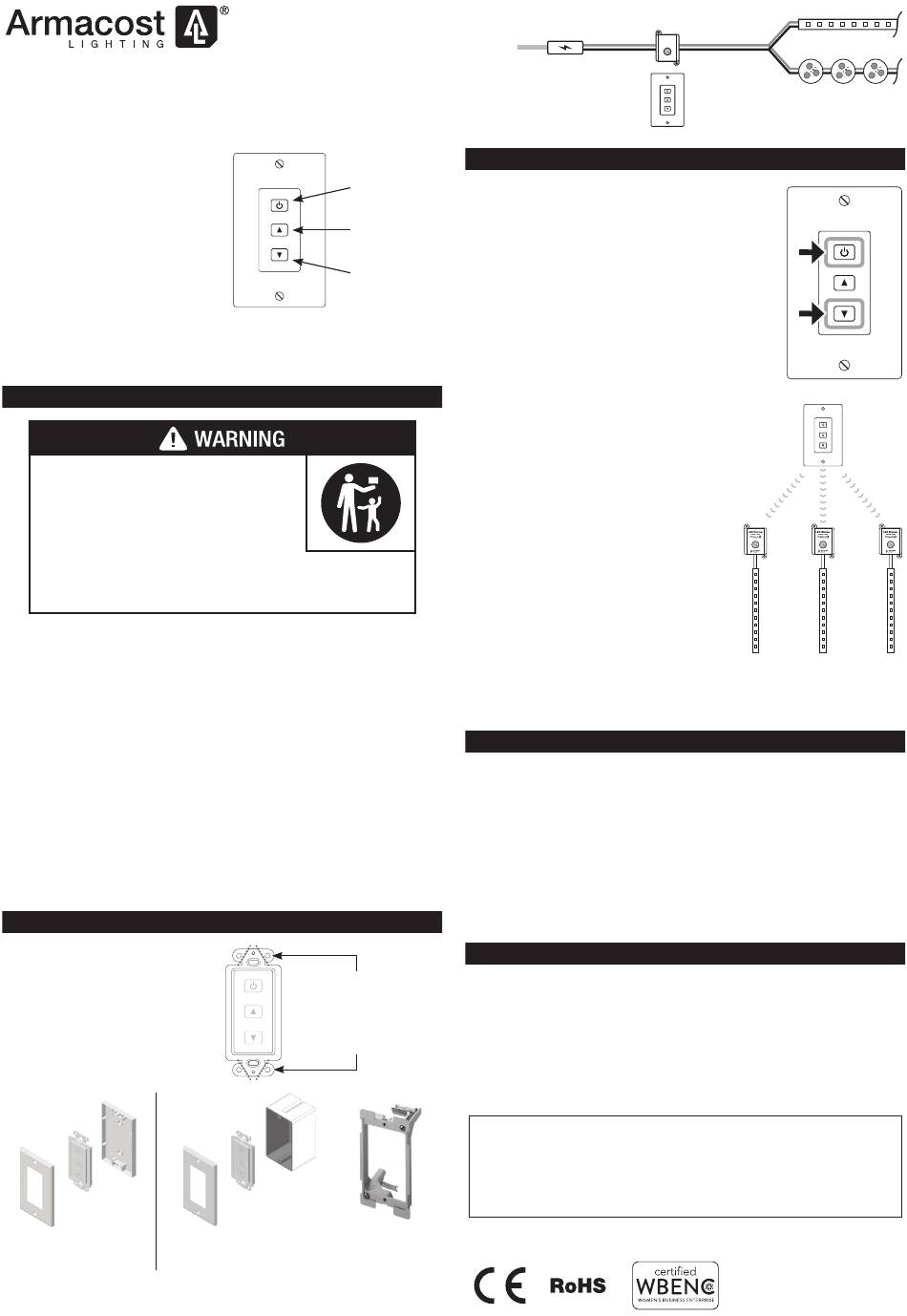

Armacost Lighting 523121 Manual

Wall-Mount Wireless Touchpad
for White LED Dimmers
Item 523121
Compatible with: items 511123,
■
511129, 513115
Includes: touchpad, mounting screws,
■
drywall anchors, & battery
For dry location use only
■
Operating range of up to 100 ft.
■
depending on environment
Features RF pairing technology for
expandability and multi-zone lighting
control. This remote wireless touchpad can be paired to control and synchronize
multiple dimmer receivers in the same area, or multiple touchpad/receiver sets can
control different zones of lighting in the same area without cross interference.
SAFETY INFORMATION
INGESTION HAZARD: This product contains
■
a button cell or coin battery.
DEATH or serious injury can occur if ingested.
■
A swallowed button cell or coin battery can
■
cause Internal Chemical Burns in as little as
2 hours.
KEEP new and used batteries OUT OF REACH OF CHILDREN.
■
Seek immediate medical attention if a battery is suspected to be
■
swallowed or inserted inside any part of the body.
Remove and immediately recycle or dispose of used batteries according to
■
local regulations and keep away from children. Do NOT dispose of batteries in
household trash or incinerate.
Even used batteries may cause severe injury or death.
■
Call a local poison control center for treatment information.
■
Use only CR2032 DC 3V replacement battery.
■
Non-rechargeable batteries are not to be recharged.
■
Do not force discharge, recharge, disassemble, heat above 113° F or incinerate. Doing
■
so may result in injury due to venting, leakage or explosion resulting in chemical burns.
Ensure the batteries are installed correctly according to polarity (+ and –).
■
Do not mix old and new batteries, different brands or types of batteries, such as
■
alkaline, carbon-zinc, or rechargeable batteries.
Remove and immediately recycle or dispose of batteries from equipment not used
■
for an extended period of time according to local regulations.
Always completely secure the battery compartment. If the battery compartment
■
does not close securely, stop using the product, remove the batteries, and keep
them away from children.
WIRELESS TOUCHPAD TRANSMITTER INSTALLATION
Surface mount touchpad transmitter
or install in wall. Designer-style wall
plate and screws are included.
Note: Compatible with most, but
not all, switch plates made by other
manufacturers.
Easily mount to any wall
or fl at surface (screws and electrical boxes, or by using a low
anchors included). voltage wall plate mounting bracket.
On/off key
(press and hold,
do not tap)
Press and hold
to increase
brightness
Press and hold
to dim lighting
Some electrical boxes may
require the removal of tabs
as shown, simply break
away with wire cutters.
Can be installed in standard
Voltage Wall Plate
Mounting Bracket
DC POWER SUPPLY
120V AC
OPERATION AND PAIRING
1. Make sure the dimmer is installed and properly
working. When pairing, be within 10 feet of the
dimmer (receiver).
2. Disconnect power to the dimmer by unplugging or
switching off the power supply. Leave off for at least
5 seconds. You can also disconnect power by pulling
out the green block connector on the dimmer.
3. To pair, press and hold the on/off and brightness
down keys simultaneously. While continuing to hold
the buttons, restore power to the power supply and
dimmer.
To test, press the on/off key of the wireless touchpad to confi rm
that it can control the receiver. If not, repeat the process.
Depending on the lighting layout, and to
reduce the need for extra wiring, it can be
advantageous to have one touchpad control or
be "paired" to multiple rotary knob dimmer
receivers (wireless ready models only).
To add or pair more receivers, repeat the same
process with additional receivers. The wireless
touchpad will pass its unique code to multiple
receivers.
To synchronize multiple receivers, so that all
lights turn on/off and dim in unison to one
touchpad, simply manually turn off all receivers
with each rotary knob. Then press the power on
key of the wireless touchpad. All lights should
turn on at the same time.
Note: You can also "un-pair" the dimmers by
following the process above, but press the power
on and brightness up keys instead.
IMPORTANT: Do not press any key on the
wireless touchpad repeatedly or too quickly or
the receivers can lose synchronization or fail to operate in unison. Firm, deliberate
button presses are required to keep multiple dimmers in synch. For effective
synchronization, all receivers must be within range of the single wireless touchpad.
TROUBLESHOOTING
The wireless touchpad does not work.
Be sure the wireless touchpad is in range of the receiver. Try moving the touchpad
closer to the receiver. The dimmer is a radio frequency (RF) device and, as such, the
range of the wireless remote control is dependent on many factors. Actual operational
distance will vary based on walls and line of sight obstructions, and other nearby
electronic devices.
Be sure your battery is good. Replace the battery if in doubt. A battery will last from
6 months up to 2 years, depending on usage.
The receiver may need to be paired again with your transmitter.
If the dimmer receiver is functioning properly, and the touchpad battery is fresh,
yet the touchpad will not control the lighting, repeat the pairing instructions.
SPECIFICATIONS
Wireless working frequency .................................................................. 433.92Mhz
Operating temperature .................................................................. 32° F to 100° F
Transmitter battery ..........................................................................CR2032 3-volt
FCC ID ..........................................................................................NWKHF10008
Country of origin .......................................................................................... China
1-year limited warranty. Improper installation, improper powering, abuse, or failure
to use this device for its intended purpose will void warranty. Proof of purchase is
required for all returns. Questions? Email support@armacostlighting.com.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation. Changes or modifi cations to this unit not
expressly approved by the party responsible for compliance could void the user
authority to operate the equipment.
T
ypical Low
LOW-VOLTAGE DIMMER
12V or
Plug in
24V DC
or
direct wire
WIRELESS
TRANSMITTER
LED TAPE LIGHT
12V or
24V DC
LED PUCK LIGHTS
© 2024 Armacost Lighting.
All rights reserved.
240108
