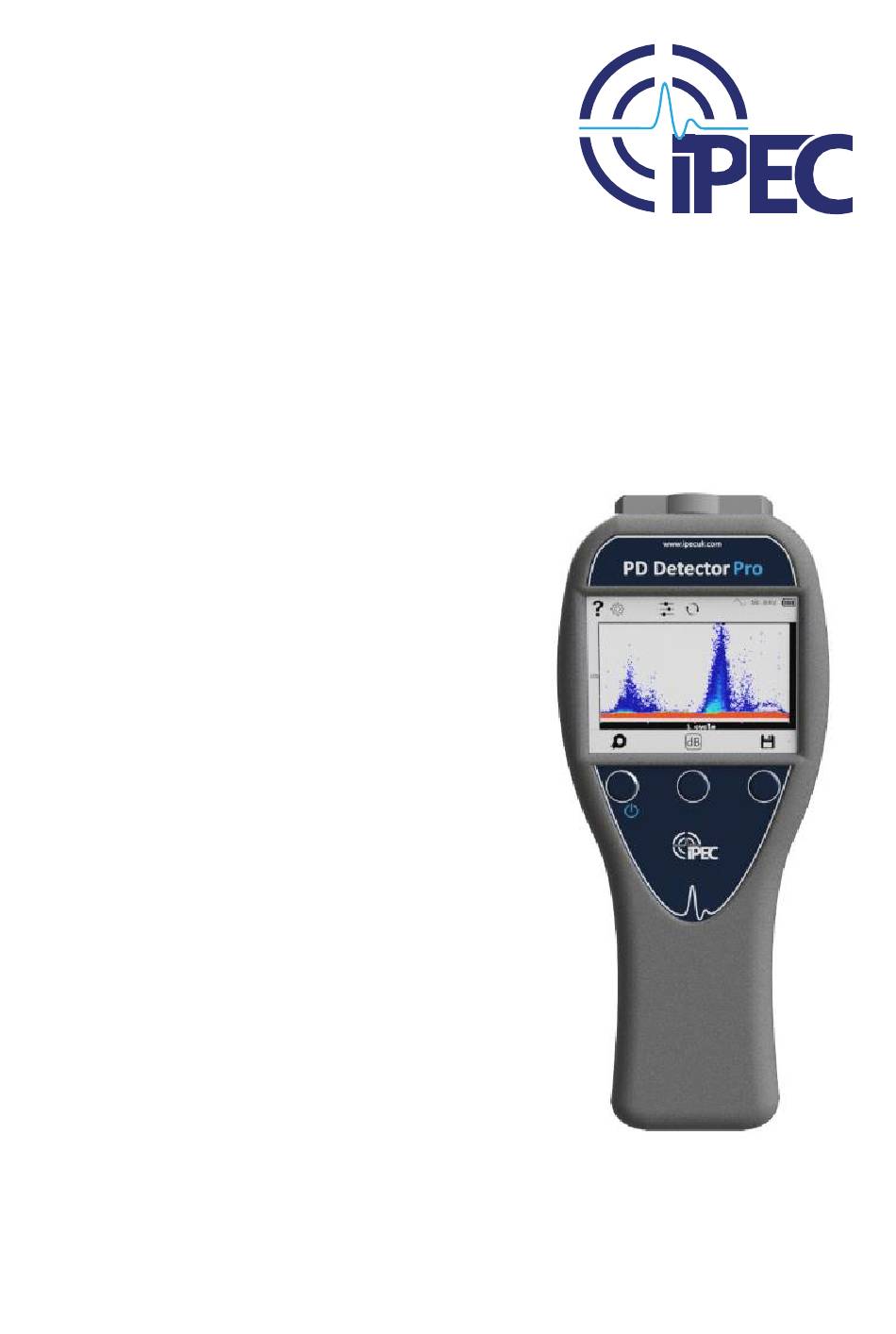

- Page 1 PD Detector Pro Quick Start Guide Version 1.0 Read this manual before using the equipment Retain this manual for future use...
- Page 2 PD Detector Pro Quick Start Guide www.ipecuk.com IPEC-PDDP-QSG-1-0...
- Page 3 Document ID: IPEC-PDDP-QSG-1-0 Copyright Copyright © 2023 IPEC Limited. All Rights Reserved. Contains information owned by IPEC Limited and/or its affiliates. Do not copy, store, transmit or disclose to any third party without prior written permission from IPEC Limited Other product and company names may be trademarks or registered trademarks of other companies and are the property of their owners.
- Page 4 PD Detector Pro Quick Start Guide www.ipecuk.com Safety WARNING Warnings refer to the risk of serious injury or death! Read and understand the following safety information before entering the substation. • Do not use the equipment if it is damaged, or its safety is impaired in any way.
- Page 5 PD Detector Pro Quick Start Guide www.ipecuk.com PD Detector Pro Touchscreen Ultrasonic Sensor TEV Sensor Multi-Sensor Port Left Context Button (Hold: Power ON / OFF) Middle Context Button Right Context Button USB-C Port Headphone Socket IPEC-PDDP-QSG-1-0...
-
Page 6: Kit List
PD Detector Pro Quick Start Guide www.ipecuk.com Kit List The PD Detector Pro kit includes: • 1 x PD Detector Pro • 1 x Peli™ carry case • 1 x USB-C charger • 1 x PD-FT function tester • 1 x Wired headphones •... -
Page 7: Getting Started
PD Detector Pro Quick Start Guide www.ipecuk.com Getting Started Using the PD-FT 29 dB TEV Mode Ultrasonic Mode CAUTION The PD-FT is NOT a calibration tool. The PD-FT only checks the functionality of the sensors. IPEC-PDDP-QSG-1-0... - Page 8 PD Detector Pro Quick Start Guide www.ipecuk.com Measuring PD Activity 3.2.1 Changing Display Press the middle icon/button to cycle between displays. Level Live PRPD Heatmap IPEC-PDDP-QSG-1-0...
- Page 9 PD Detector Pro Quick Start Guide www.ipecuk.com 3.2.2 Change Sensor Press the left icon/button to switch between TEV and Ultrasonic Sensor. TEV Mode Ultrasonic Mode IPEC-PDDP-QSG-1-0...
- Page 10 Tap again to resume measurement. Switching sensor or switching display mode will also resume measurement. 3.2.4 PD Noise Algorithm The PD Detector Pro has a noise filtering algorithm which removes noise signals from the live and heatmap displays. Algorithm Algorithm Enabled Disabled This can be enabled/disabled in the options menu.
- Page 11 PD Detector Pro Quick Start Guide www.ipecuk.com TEV Measurement Set the PD Detector Pro to TEV Mode. Place sensor head against the switchgear panel. Ultrasonic Measurement Set the PD Detector Pro to Ultrasonic Mode. Point the sensor head through panel gaps, vents, or any direct air path to the high voltage stress points.
-
Page 12: Saving Measurements
PD Detector Pro Quick Start Guide www.ipecuk.com Saving Measurements Press the “Save” Icon to record measurement data with three options: “Save Screenshot” – saves copy of the screen as a PNG file. “Save Data” – saves the recorded levels as an entry in a CSV file. - Page 13 PD Detector Pro Quick Start Guide www.ipecuk.com Download Saved Data Connect the PD Detector Pro to a computer using the USB-C cable. Go to options, settings, and select “Data Download”. IPEC-PDDP-QSG-1-0...
- Page 14 PD Detector Pro Quick Start Guide www.ipecuk.com Use the File Explorer on the computer to view the CSV measurements and PNG screenshots. NOTICE Press the “Back” arrow on the PD Detector Pro before disconnecting from the computer. IPEC-PDDP-QSG-1-0...
-
Page 15: Specifications
PD Detector Pro Quick Start Guide www.ipecuk.com Specifications For the PD Detector Pro Specifications and other information, please scan the QR code or contact sales@ipecuk.com. IPEC-PDDP-QSG-1-0... - Page 16 IPEC Limited Carrington House, 39 Carrington Field Street Stockport, Manchester, SK1 3JN, United Kingdom Tel: +44(0)161 226 0045 Email: sales@ipecuk.com Website: www.ipecuk.com...
