26/08/2024, 14:53
Knowledge Base
/
Devices
Shelly Plus 2PM UL
Device identification
Device name: Shelly Plus 2PM UL
Device model: SNSW-002P15UL
Device SSID: ShellyPlus2PM-XXXXXX
Short description

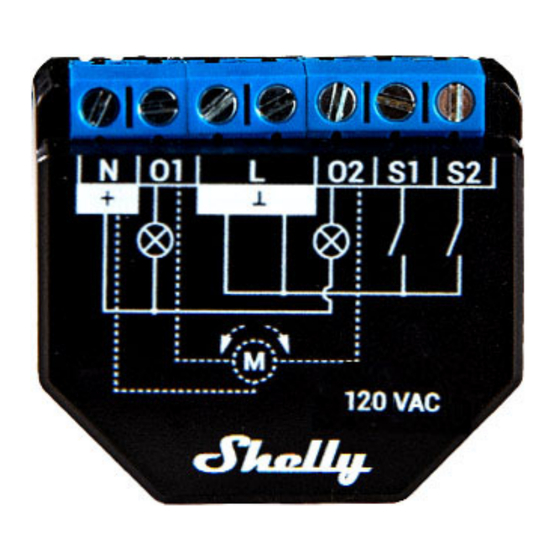

The Shelly Plus 2PM UL is a UL-certified small form factor 2-channel smart switch with power
measurement and cover control, which allows remote control of electric appliances through a
mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi
network or it can also be operated through cloud home automation services.
The Shelly Plus 2PM UL can be accessed, controlled and monitored remotely from any place
where the User has internet connectivity, as long as the device is connected to a Wi-Fi router and
the Internet.
https://kb.shelly.cloud/knowledge-base/shelly-plus-2pm-ul
/
Shelly Plus devices
Shelly Plus 2PM UL
1/10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Shelly Plus 2PM UL
Summary of Contents for Shelly Plus 2PM UL
- Page 1 Device SSID: ShellyPlus2PM-XXXXXX Short description The Shelly Plus 2PM UL is a UL-certified small form factor 2-channel smart switch with power measurement and cover control, which allows remote control of electric appliances through a mobile phone, tablet, PC, or home automation system. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services.
-
Page 2: Main Applications
It can be retrofitted into standard electrical wall boxes, behind power sockets and light switches or other places with limited space. The Shelly Plus 2PM UL has an embedded Web Interface which can be used to monitor and control the device, as well as adjust its settings. - Page 3 26/08/2024, 14:53 Shelly Plus 2PM UL Device electrical interfaces Inputs 2 switch/button inputs on screw terminal: S1 and S2 3 power supply inputs on screw terminals: 1 N (+) and 2 L ( ) Outputs 2 relay outputs with power measurement on screw terminal...
-
Page 4: Safety Features
26/08/2024, 14:53 Shelly Plus 2PM UL ⚠CAUTION! High voltage on the add-on interface when the Device is powered! Connectivity Wi-Fi Bluetooth Safety features Overheating protection Overvoltage protection Overcurrent protection Overpower protection Obstacle detection (cover mode) Safety switch (cover mode) Supported load types... -
Page 5: User Interface
26/08/2024, 14:53 Shelly Plus 2PM UL Inductive with RC Snubber (LED light drivers, transformers, fans, refrigerators, air- conditioners) User interface Inputs One (Reset) button Press and hold for 5 seconds to enable Device access point and Bluetooth connection. Press and hold for 10 seconds to factory reset the Device. -
Page 6: Specifications
26/08/2024, 14:53 Shelly Plus 2PM UL The list above starts with the initial device status and the lowest priority. Every next state cancels the previous one. Specifications Type Value Physical Size (HxWxD): 37x42x16 mm / 1.46x1.65x0.63 in Weight: Mounting: Flush mounting Screw terminals max 0.25 Nm / 2.2 bin... - Page 7 26/08/2024, 14:53 Shelly Plus 2PM UL Power supply: 120 VAC, 50/60Hz Power consumption: < 1.4 W Output circuits ratings Max switching voltage 120 V Max switching voltage Max switching current 8 A (per channel), 16 A (total) Max switching current...
-
Page 8: Basic Wiring Diagrams
26/08/2024, 14:53 Shelly Plus 2PM UL Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) CPU: ESP32-U4WDH Flash: 4 MB Firmware capabilities Schedules: Webhooks (URL 20 with 5 URLs per hook... -
Page 9: Troubleshooting
Load circuit output terminals S1, S2 Switch input terminals Troubleshooting Web Interface guide Read the Shelly Plus 2PM, Plus 2PM UL web interface guide Components and APIs This device All Shelly devices and services Printed user guide Shelly Plus 2PM UL bilingual printed user and safety guide.pdf https://kb.shelly.cloud/knowledge-base/shelly-plus-2pm-ul... - Page 10 26/08/2024, 14:53 Shelly Plus 2PM UL Privacy policy / Cookie policy / Support / FB community support / Contact us Copyright © 2024 Shelly Cloud. Allterco Robotics OOD • Powered by Scroll Viewport & Atlassian Confluence • Reset cookie settings https://kb.shelly.cloud/knowledge-base/shelly-plus-2pm-ul...
