vorex screens VOR-10.1-M-A User Manual

Hmi flush mounted touch screens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

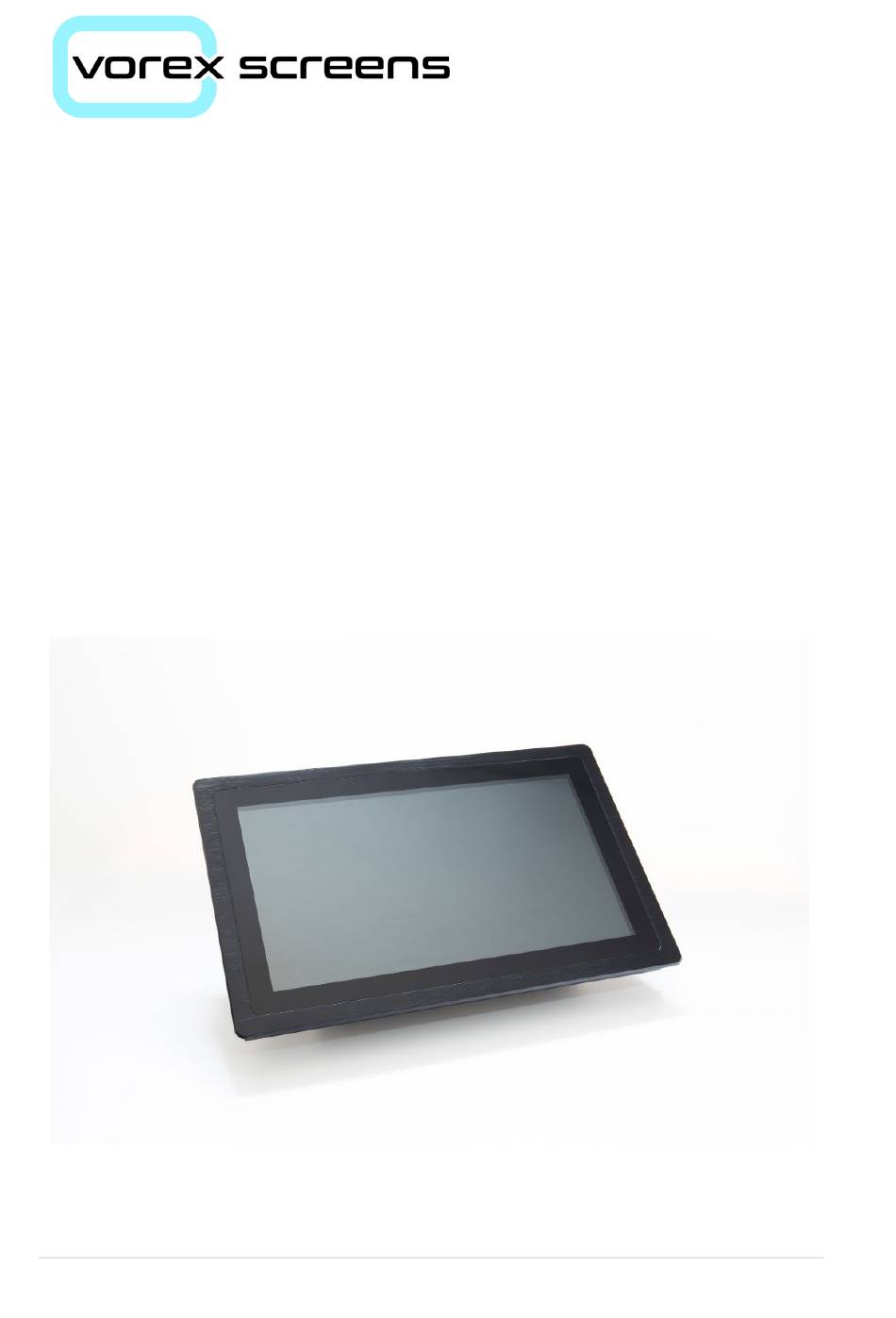

VOR-10.1-M-A HMI Flush Mounted
Touch Screens
User Manual and Datasheet
Suitable for iSMA MAC36, EasyI/O, JACE, TREND, DEOS, Cylon, Innotech
Omni and devices with html5.0 web pages
1 |
P a g e
R e v 1 . 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOR-10.1-M-A and is the answer not in the manual?

Questions and answers

Summary of Contents for vorex screens VOR-10.1-M-A

  • Page 1 VOR-10.1-M-A HMI Flush Mounted Touch Screens User Manual and Datasheet Suitable for iSMA MAC36, EasyI/O, JACE, TREND, DEOS, Cylon, Innotech Omni and devices with html5.0 web pages P a g e R e v 1 . 1...
  • Page 2 Revision Issue Date Comments 15/05/2021 Original Issue 21/05/2022 Minor Amendments P a g e R e v 1 . 1...

  • Page 3: Table Of Contents

    Index Page Introduction Warranty Returns for Credit Operational & Technical Specifications Mounting Dimensions Flush Mounting Default Setup Changing the Target IP Address Normal Start Up Changing the Screen IP Address Adding Kisok Apps Timer On/Off and Multi-Function Clock 9/10 Changing the screen Time/Date MobiLoc (Screen Lock) App Screen Saver/Sleep Mode P a g e...

  • Page 4: Introduction

    Material Authorisation (RMA) which should be completed in full and returned with the screen. Vorex Screens Ltd are not responsible for the costs of the returned items Vorex Screens Ltd reserves the right to repair or replace a faulty screen at their sole discretion. Returns for Credit...

  • Page 5: Operating Specifications

    Operating Specifications Ambient temperature: -10℃ to 60℃ Ambient humidity: 40% - 65%rH Transport/Storage -20℃ to 60℃ / 35% - 80%rH Temperature/Humidity: Working Temperature: 0 – 45°C 100Vac to 230V to 12Vdc, 2 part lead and Rated Voltage: adaptor Rated Frequency: 50Hz to 60Hz Rated Current: 5Amp...

  • Page 6: Mounting Dimensions

    I/O Port 2x USB2.0, 1x RJ45, 1x WiFi, 1x SD Case Material Metal Case, Steel/Aluminum Case colour Standard colour = black Approvals and Listings: CE, FCC, FOHS Mounting Dimensions Flush Mount through panel door Hole Cut Out Size: 275mm (w) x 175mm (h) Overall Screen Size: 293mm (w) x 195mm (h) Surface Mounting...

  • Page 7: Flush Mounting

    It is easier if two people carry out this operation See figure left Alternatively, the VOR-10.1-M-A can be surface mounted using a suitable VESA bracket. 4x mounting holes are provided in the rear of the screen to secure the bracket.

  • Page 8: Default Setup

    Default Setup: The screen is supplied with a pre-installed VOREX app. The default settings of the screen are: Screen IP Address: 192.168.10.20 Gateway Address: 192.168.10.1 Subnet: 255.255.255.0 DNS 1: 8.8.8.8 DNS 2: 8.8.4.4 On power up, the screen will attempt to connect to the target device set in the Vorex app (default 192.168.10.11) If this target device does not exist, the connection will fail and the following error message will appear...

  • Page 9: Changing The Target Ip Address

    Changing the Target IP Address The screen will then return to the Vorex app as above Press the “log out of all controllers” button • • Reset the target device IP address Select the HTTPS or HTTP radio button and then press Search •...

  • Page 10: Normal Start Up

    Normal Start Up After the initial setup if the screen is powered down at any time, the device remembers the last settings. When power is applied it will re-connect to the target device. After about 20secs a Vorex blue banner app will appear on the desktop along with the standard default Android apps.

  • Page 11: Adding Kisok Apps

    After removing the Vorex and MobiLoc apps, install the new one using a USB flash drive and follow the Apps installation instructions. Please note Vorex Screens will not provide support for 3 party Apps. Timer Auto On/Off and Multi-Function Clock: The Android Home page has a MultiFunctionClock app with the icon left.
  • Page 12 Select which days you want the function to work by ticking or unticking the respective days To add an On/Off time, select the Add Time at the bottom of the • screen Select the OFF Time and the corresponding Boot time (ON), press •...
  • Page 13 • The delete button will appear to the right, press Delete and the Off/Boot time will disappear Remember to set the screens time and date up correctly before you use this app otherwise you may find the screen powers down during normal working hours.

  • Page 14: Changing The Screen Time/Date

    The default password is 2323 This is a 3 party app and is not supported by Vorex Screens Ltd Be Aware: if you change this password and forgot what it was, we cannot help you.
  • Page 15 This page is deliberately left blank 15 | P a g e R e v 1 . 1...
  • Page 16 This page is deliberately left blank 16 | P a g e R e v 1 . 1...
  • Page 17 This page is deliberately left blank 17 | P a g e R e v 1 . 1...
  • Page 18 This page is deliberately left blank 18 | P a g e R e v 1 . 1...
  • Page 19 This page is deliberately left blank 19 | P a g e R e v 1 . 1...
  • Page 20 Vorex Screens Ltd Unit 18 Henley Gardens, Yateley Hampshire. GU46 6LG, UK Tel: +44 (0) 1252 669317 Email: sales@vorexscreens.co.uk Web: www.vorexscreens.co.uk 20 | P a g e R e v 1 . 1...
