Summary of Contents for ORSIS A1140DC

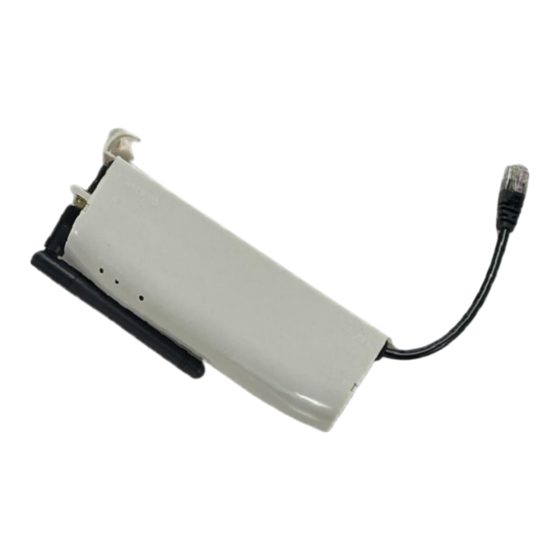

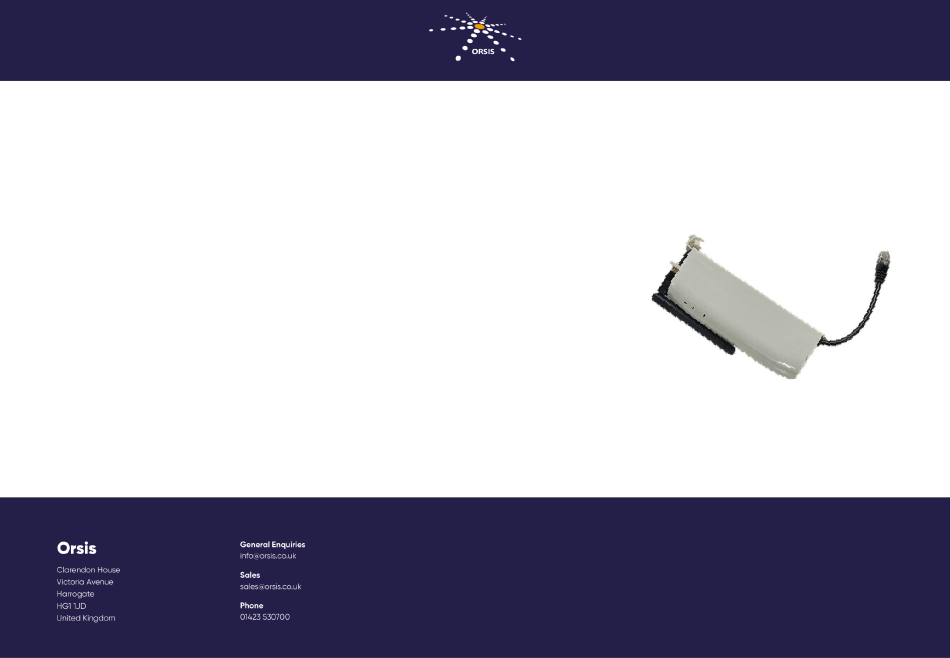

- Page 1 MAN37 Version 1 Issue Date: 10/12/2024 Installation manual Orsis A1140DC module...
- Page 2 MAN37 Version 1 Issue Date: 10/12/2024 How to Install the Orsis A1140DC module Ensure the meter is installed prior to module installation Remove tails cover Plug in RJ11 Clip Fit module on the Refit new tails cover bottom of the meter...
-
Page 3: Led Description
MAN37 Version 1 Issue Date: 10/12/2024 LED Description There are three LEDs defined as power (PWR), registration status (REG) and error indication (ERR) from left to right on the front of the module as shown below. Status Description LED Status Normal system power Always On supply... - Page 4 MAN37 Version 1 Issue Date: 10/12/2024 Flashing Error Sequence LED ERR Definition List Always Off Registered 1 Flash SIM card requires changing 2 Flashes Meter not connected to module 3 Flashes GSM signal strength is too low 4 Flashes External Flash Read-Write Error 5 Flashes GSM Module not started 6 Flashes...
- Page 5 Orsis support team to confirm the communications paths are operational between meter and module via GPRS BEFORE leaving site. The metering system will not be deemed operational until Orsis support staff confirm all communications are connected. Please call Orsis support team on 01423 537088 to check and confirm the connection.
