Eurotronic PROGmatic Operating Instructions

progmatic
The convenient programming stick
Operating instructions and guarantee
Carefully read through this operating manual before using the pro-
gramming stick. Store the documents so you can consult them later
and pass them on when forwarding the appliance.
Scope of delivery
1x PROGmatic programming stick
1x operating instructions
Intended use
PROGmatic is used for the simple programming of the EUROtronic
energy-saving regulator with a programming port. The program-
ming stick is intended for use at the USB port of a PC. The data is
transferred to the energy saving regulator through the plug on the
Progmatic. The EUROtronic programming port at the energy saving
regulator is only intended for EUROtronic products. Do not under any
circumstance connect other devices with the Mini-USB connection!
Programatic Blue is not suitable as a transportable storage media.
Operating and display elements
1 USB plug
2 plugs for the EUROtronic Programming-Port
3 LED red/green
2
PROGmatic function
PROGmatic enables the convenient stipulation of the heating and sa-
ving times for the EUROtronic energy saving regulator at the PC. After
the storage of the space profiles they can be conveniently be stored
on all the EUROtronic energy saving regulators with the programming
port. In this case the energy saving controller also assumes the
current time and the date so that an initial installation of the energy
saving regulator ceases to apply.
Installation of the PROGmatic software (initial operation)
Download the software for your PROGmatic programming stick from
www.eurotronic.org: Hover your mouse over the Downloads tab,
navigate to the Accessories item and click on Progmatic. On this page,
download the PROGmatic installation software and install it on your
computer. Once you have downloaded the software by clicking on the
link a window is automatically opened which helps your during the
installation of the programme.
1. Select your chosen language
2. Select a storage location
3. Click on "Install"
4. Click on "complete"
You launch the software by double clicking on the „PROGmatic-start"
icon. The driver installation is performed automatically by plugging in
the stick.
Starting the PROGmatic
Plug the PROGmatic with the USB plug into a free USB port of your
PC. If the stick is connected correctly the green LED shines and the red
LED also shines upon its initial commissioning. In addition the green
strip at the lower edge of the programme changes to green and reads
„connected, PROGmatic is thus active. If the stick has been connected
to the computer the internal accumulator is charged during this period.
If the heating profiles were successfully transferred to the Progmatic
then they shall remain stored on the Progmatic for approx. 1 hour.
If you should additionally attempt to transfer heating profiles to the
controller then the date and time may be lost. Check this by connecting
Progmatic with your computer once more. If the red LED flashes the
profiles must be transferred once more to update the date and time. If
the transfer was successful the red LED switches off.
Batteries are not necessary.
www.eurotronic.org
Creation of room profiles
During the first launch of the programme the room profile I „P01" is
already set as the factory setting. The individual room profiles can be
issued with names to provide a better overview.
2) Simply enter the desired name into the intended field. You confirm
your entry by pressing „OK". The room that has been created then
appears on the left of the programme.
3) Click on the „+" symbol to add more rooms. A maximum of 10
rooms can be created. Now selected a room that has been created
and set an economy temperature, comfort temperature and offset
temperature.
4) Setting of the comfort and economy temperature
You can conveniently set the desired comfort and savings tempera-
ture into the corresponding fields above the room profile range by
clicking on the cursor keys.
5) Setting of the offset temperature
Due to the fact the temperature is measured at the radiator it can
also differ at another place in the room. You can set the offset to bring
this in line. If for example you measure 19°C instead of the 21°C that
was set, you then set the offset to 2°C.
Weekday option
Above the time bar you have the option with various buttons to
programme all the days individually or to arrange them in blocks:
Individual days - every day is assigned an individual heating/savings
profile.
Monday to Friday - The days Monday, Tuesday, Wednesday,
Thursday and Friday are assigned the same heating/saving profile.
Saturday to Sunday - The days Saturday and Sunday are assigned
the same heating/saving profile.
Creation of a heating time
In insert a heating time (comfort time) simply move the mouse to the
desire starting time and move it from left to right whilst pressing the
left mouse button. The end of the heating time is set by releasing
the mouse button. This is optically represented by a dark green bar.
Proceed in just the same way to create an additional heating time.
Deletion and changing of a heating time
3 The deletion of a heating time works in a similar manner to the set-
ting of the heating time, keep the right mouse button pressed
for this and move it from left to right. If the desired area is selected
this area will be deleted by releasing the mouse button.
1
Saving of the room profiles
Following the completion of the programming of your room profiles
you save them with the „Save" button or via the „Save" selection in
the „File" menu. A window is opened in which you can select several
options.
1. Save on the computer
to save your various heating profiles and to be able to access if there
are change requests.
2. Save on the Progmatic
to transfer your different heating profiles to your energy saving
regulator.

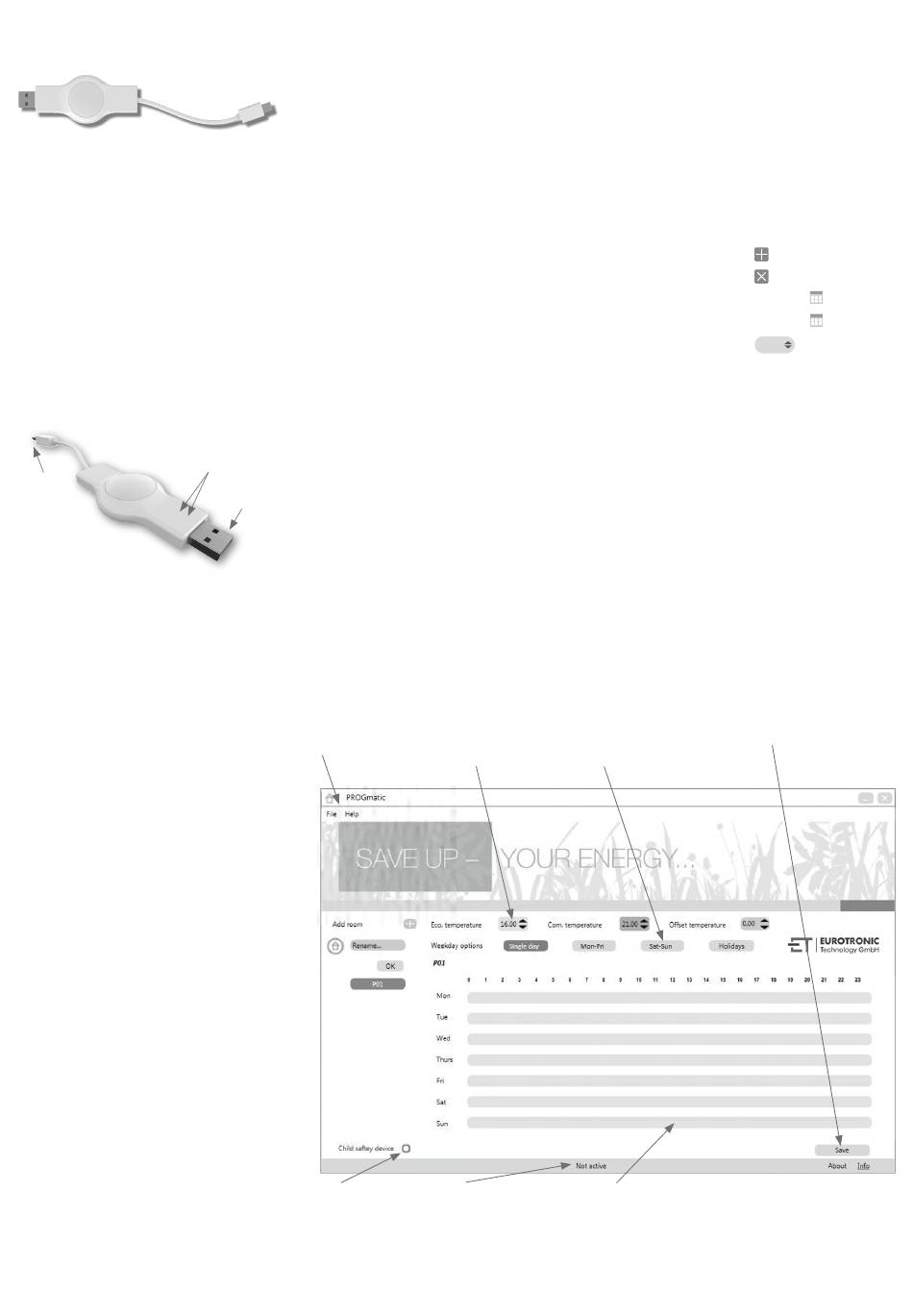

Menu line:
Storage of the time profile,
printing of the room overview
2)
Child lock:
active/inactive display
Controller setting:
Setting of the comfort and
saving temperatures and
the offset temperature
3) 4)
Room profile range:
Status bar:
Stick connected - green Graphical representation of the heating and saving times;
the individual weekdays are arranged one beneath the other.
Stick inactive - grey
Saving times are represented in bright green and heating
times are represented in dark green.
Other Functions
Child lock
The child lock can be switched on and off for the respective room
profile.
Holiday function
Here you can enter the holiday times in advance. The energy saving
regulators set the temperature stipulated by you at these times. Click
on the „+" symbol to add an additional holiday profile.
A maximum number of 8 holiday profiles can be created.
7) Click on the calendar symbol (start) to stipulate the date of the
holiday start. To stipulate a precise time of departure click directly
into the display „00.00 am" with the mouse and change this value as
you please. The end of the holiday can be also be set by clicking on the
calendar symbol (end). You delete the entire holiday profile by clicking
on the „x" symbol.
Adding a holiday:
Holiday 1
Start 00:00 17-08-2014
End 00:00 31-08-2014
16.0
Savings temperature
Printing of an overview page of the profiles
You can print out an overview of the room profiles you create
by selecting „Print" in the „File" menu. Opening of stored room profi-
les. You can open your stored room profile and edit it as you please by
selecting „Open" in the „File" menu.
Block building: Save:
Optional summary of the days Saving of the room profiles
with the same heating times
